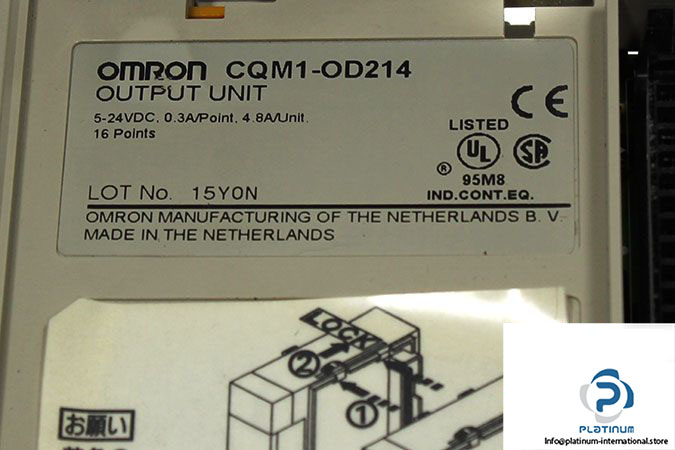

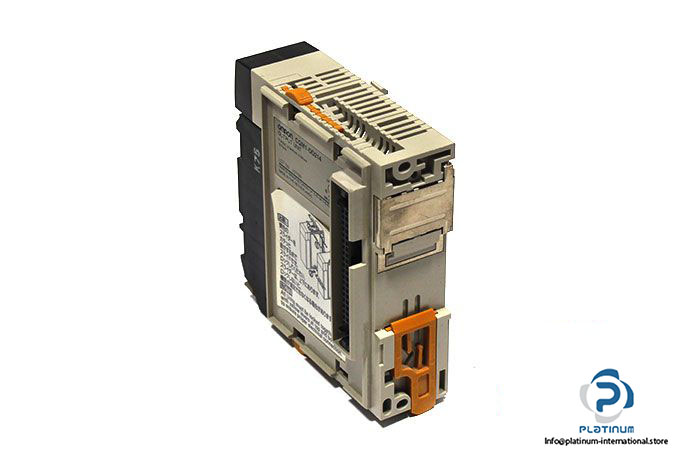

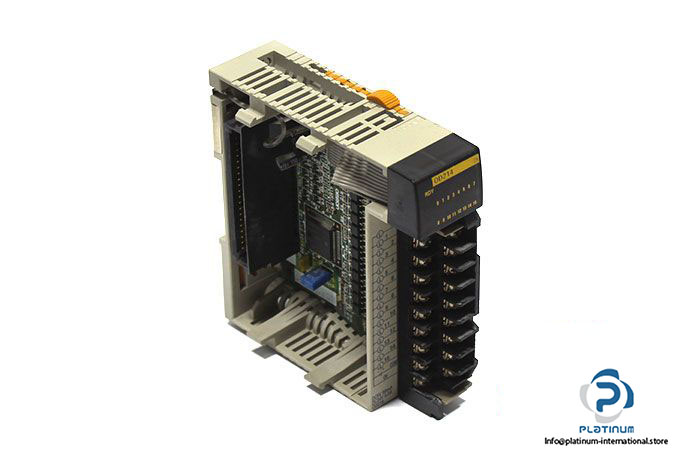

Omron CQM1-OD214 Output Unit
Manufacturer: Omron
Type: Output Unit
Model: CQM1-OD214
Max. Switching Capacity: 50 mA at 4.5 VDC to 300 mA at 26.4 V
Max. Residual Voltage: 0.8 V
Max. Leakage Current: 0.1 mA
ON Delay: 0.1 ms max.
OFF Delay: 0.4 ms max.
No. of Outputs: 16 points (16 points/common, 1 circuit)
Internal Current Consumption: 170 mA max. at 5 VDC
Service Power Supply: 60 mA min. at 5 to 24 VDC ±10% (3.5 mA ¢ Number of ON Points)
Fuse: 3.5 A (One Per Common), Two Only Used. Fuse Is Not User Replaceable.
Weight: 0.18 kg
