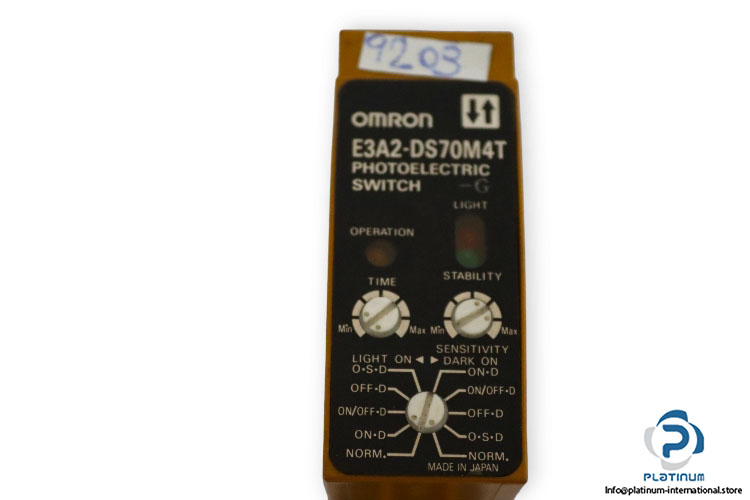

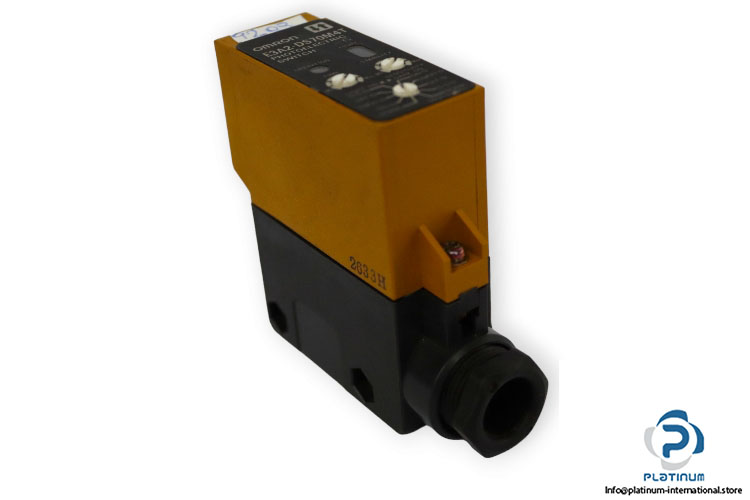

Omron E3A2-DS70M4T Photoelectric Switch Sensor
Manufacture: Omron
Type: Diffuse reflective Photoelectric Switch Sensor
Model: E3A2-DS70M4T
Supply voltage: 24 … 240 V AC, 50/60 Hz; 12 … 240 V DC
Method of detection: Diffuse reflective
Construction Style: Rectangular
Power consumption: 1.5 W,2 VA
Response time: 0.1 … 5s
Connections: Terminal
Mounting: Side surface mount with two through holes; E39-L34 bracket and hardware included
Operation mode: Light-ON/Dark-ON, switch selectable
Light source: Pulse modulated infrared LED (950 nm)
Sensing range: 700 mm
Materials: Plastic
Enclosure rating IEC: IP66
Ambient operating temperature: -25 … 55°C
