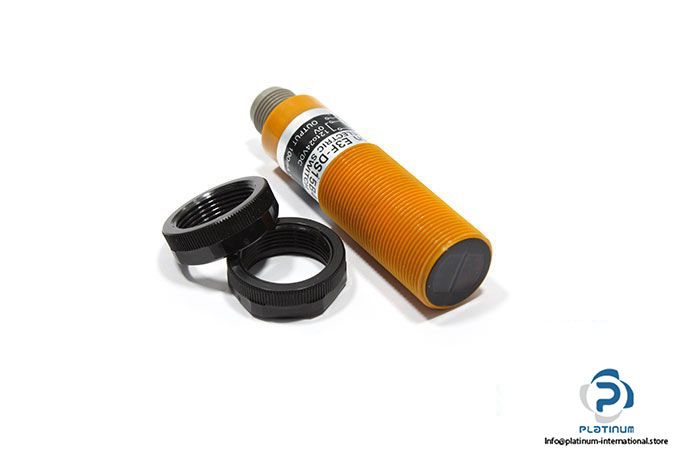

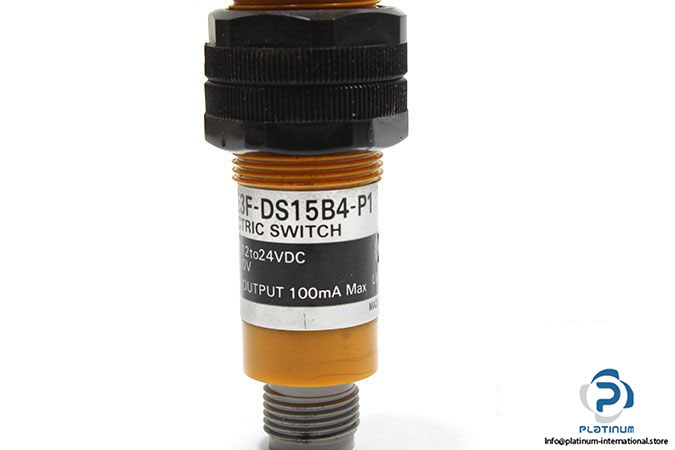

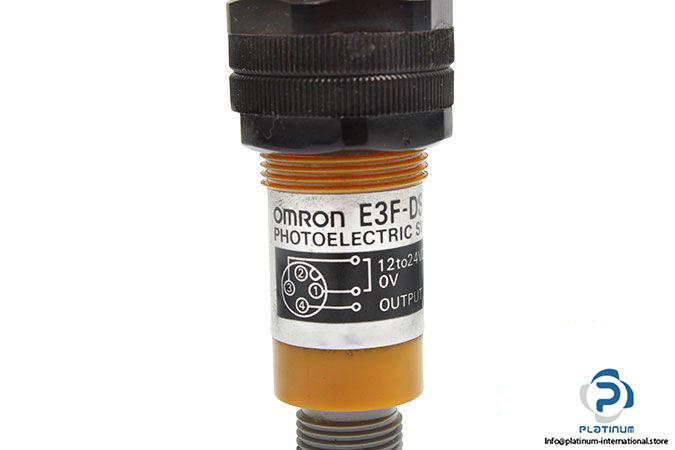

Omron E3F-DS15B4-P1 Photoelectric Diffuse-Reflective Sensor
Manufacturer: Omron
Type: Photoelectric Diffuse Reflective Switch
Model: E3F-DS15B4-P1
Detecting Distance: 100 mm
Operating Supply Voltage: 12 … 24 V DC
Output Current: 100 mA
Operation Mode: Normally Open, Normally Closed
Output Configuration: PNP
Switching Type: LIGHT-ON/DARK-ON
Light Source: Infrared

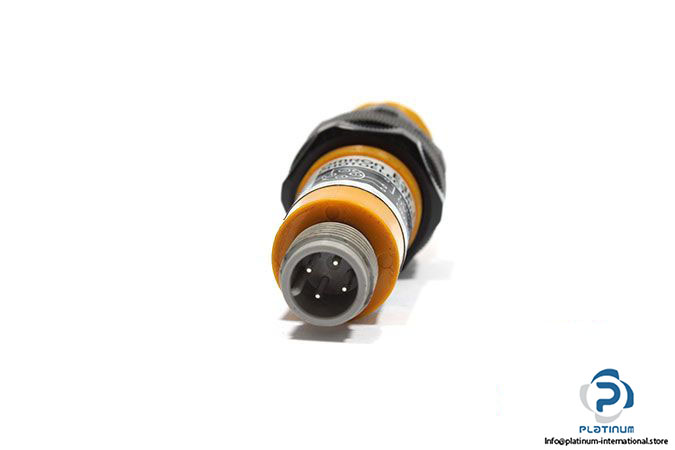

Electrical Connection: M12 Connector, 4-pin
Housing Material: Plastic
Protection Class: IP66
Ambient Temperature: -25 … +55 °C
Diameter, Length: 18, 70 mm
Weight: 0.02 kg
