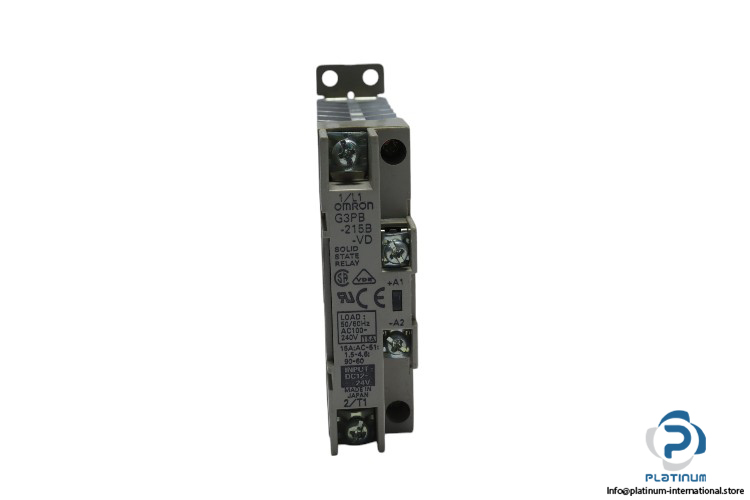

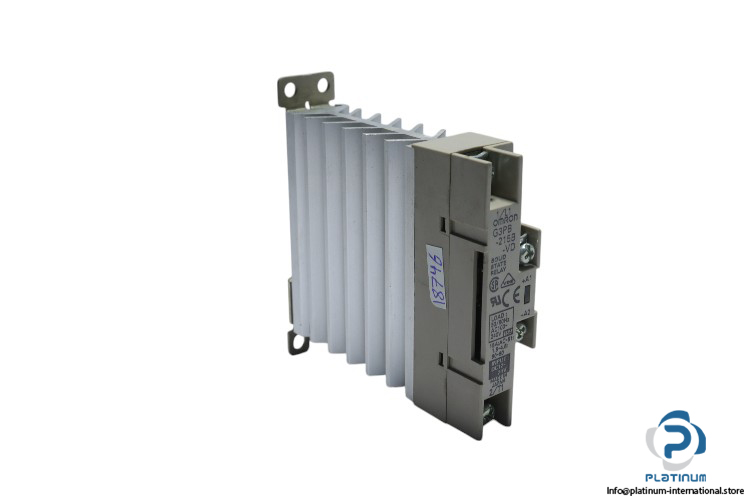

Omron G3PB-215B-VD Solid State Relay
솔리드 스테이트 릴레이 Omron G3PB-215B-VD 솔리드 스테이트 릴레이는 100~240 V AC 정격 부하 전원, 15 A 부하 전류를 제공하며, 3 kW 적용 부하 및 넓은 동작 온도 범위와 함께 산업 자동화에 적합합니다.
Omron G3PB-215B-VD Solid State Relay
The Omron G3PB-215B-VD Solid State Relay offers reliable switching and control for industrial applications. With a rated load supply voltage of 100 to 240 V AC, this solid-state relay provides seamless operation with high load currents of up to 15 A and a wide temperature range, making it ideal for a variety of automation systems.
Manufacturer: Omron
Type: Solid State Relay
Model: G3PB-215B-VD
Series: G3PB
The Omron G3PB-215B-VD Solid State Relay offers long-lasting, reliable performance and is designed for industrial automation, providing efficient control in demanding environments.
| Rated Load Supply Voltage | 100 to 240 V AC |
| Applicable Load Current | 15 A |
| Frequency | 50 to 60 Hz |
| Leakage Current | 10 mA max. |
| Input Voltage | 12 to 24 V DC |
| Input Current | 7 mA |
| Applicable Load | 3 kW |
| Terminal Type | Screw terminals |
| Operating Temperature | -30 to 80 °C |
| Dimensions | 100 x 22.5 x 68 mm |
