Omron MK2KP 24 VAC Latching Relay
신제품
재고 있음5 단위즉시 배송 가능
Latching Relay
The Omron MK2KP latching relay offers 24 V AC coil voltage and robust contact capabilities, including a maximum contact current of 5 A. With its compact design and reliable performance, it’s ideal for a wide range of industrial applications.
방대한 재고
글로벌 배송
전문 지원
품질 보장

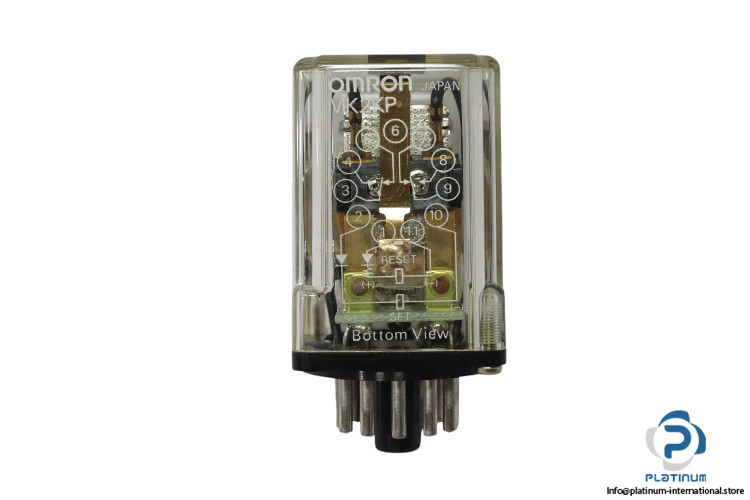

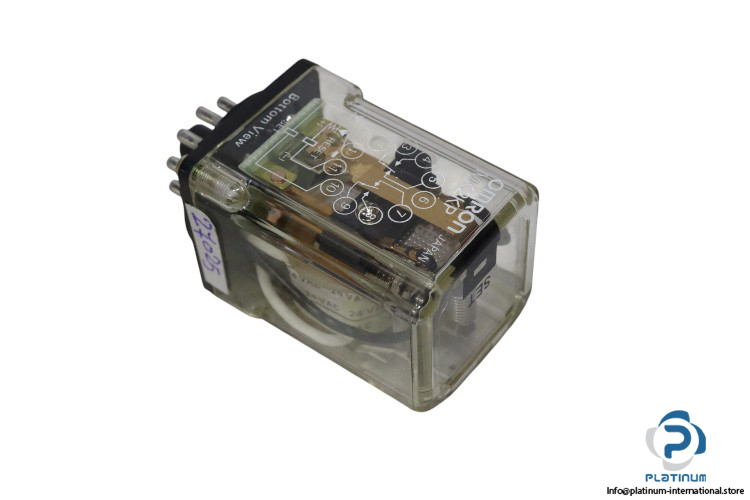

Omron MK2KP “ Latching Relay
The Omron MK2KP is a high-performance latching relay designed to deliver reliable switching for industrial and electrical applications. With a robust structure, it provides excellent performance with a wide range of voltage and current capacities.
Manufacturer: Omron
Type: Latching Relay
Model: MK2KP

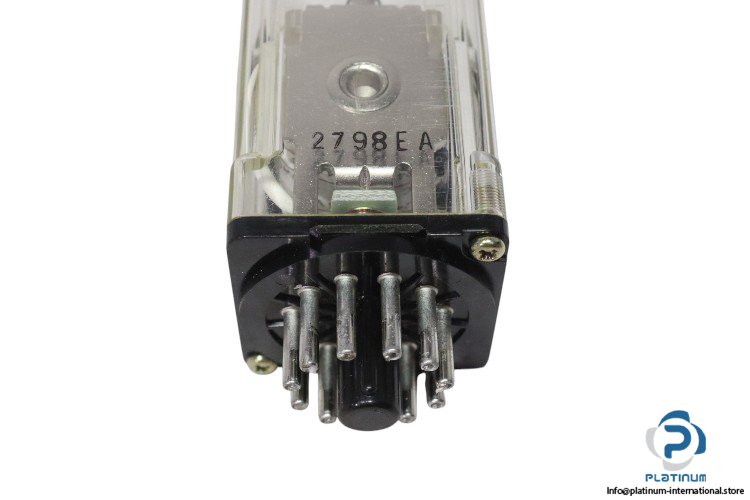

Ref. No.: 2798EA
Series: MK

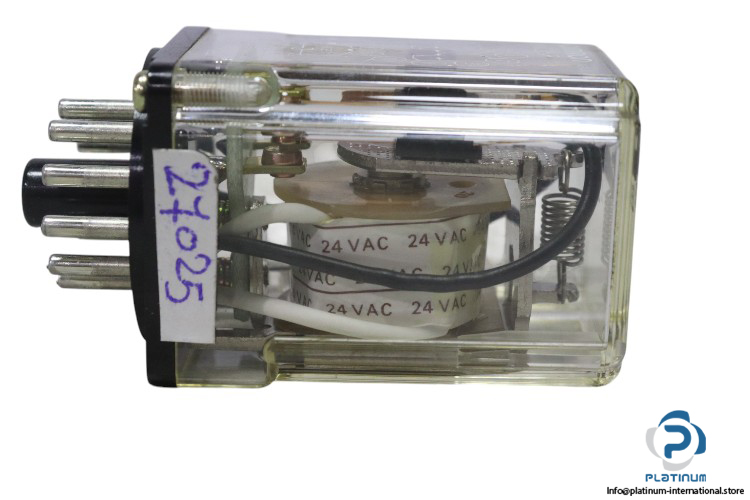

| Coil Voltage | 24 V AC |
| Coil Resistance | 105 ohms at 66 mA, 965 ohms at 10.8 mA |
| Release Time | 30 ms max. |
| No. of Poles | 2 |
| No. of Pins | 11 |
| Contact Structure | Single |
| Maximum Contact Voltage | 250 VAC, 250 VDC |
| Maximum Contact Current | 5 A |
| Contact Materials | Ag |
| Ambient Operating Temperature | -10 to 40° C |
| Dimensions | 34.5 X 52.5 X 34.5 mm |
