Omron MY2K 24 VDC General-Purpose Latching Relay
신제품
재고 있음43 단위즉시 배송 가능
General-purpose Latching Relay
The Omron MY2K latching relay offers reliable switching for various applications. With a 24 V DC coil voltage, gold-plated contacts, and a wide ambient temperature range, it is designed for durable, high-performance operation.
방대한 재고
글로벌 배송
전문 지원
품질 보장

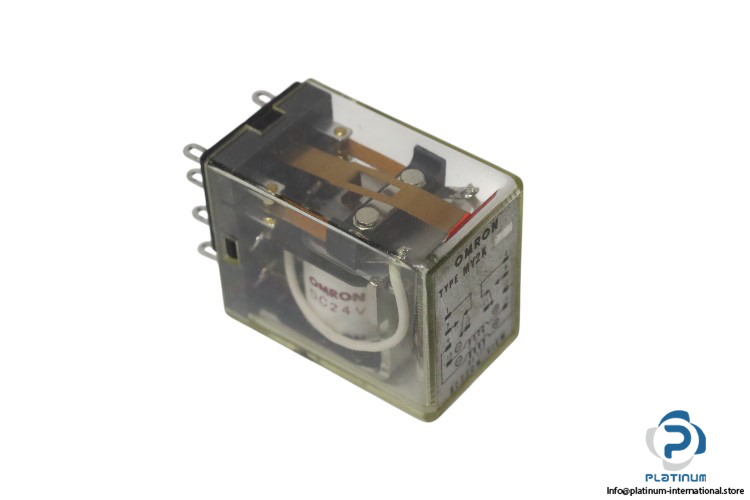

Omron MY2K “ General-purpose Latching Relay
The Omron MY2K is a versatile general-purpose latching relay designed for reliable operation in various electrical systems. With a compact design and gold-plated contacts, it ensures stable performance across a wide range of temperatures and applications.
Manufacturer: Omron
Type: General-purpose Latching Relay

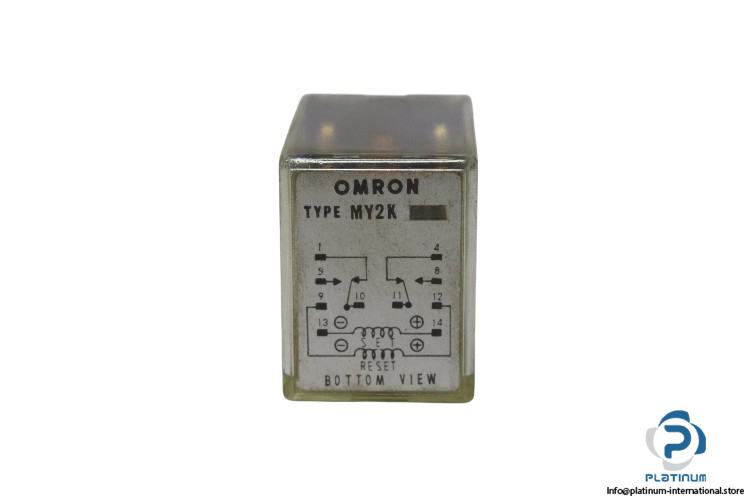

Model: MY2K

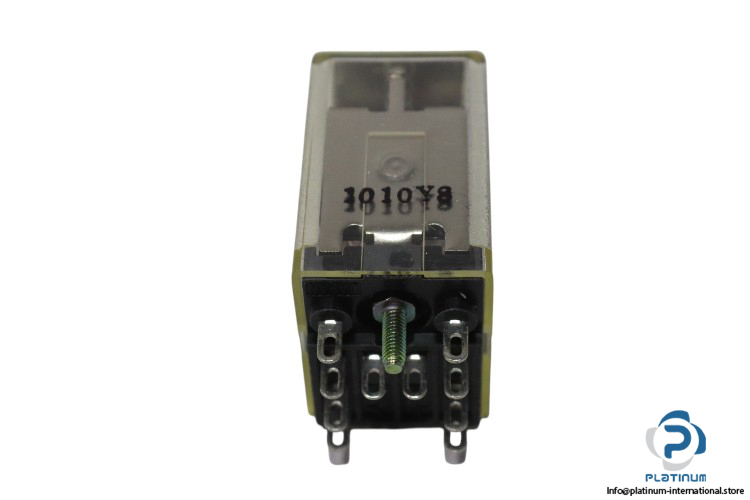

Ref. No.: 1010Y8
Series: MYK

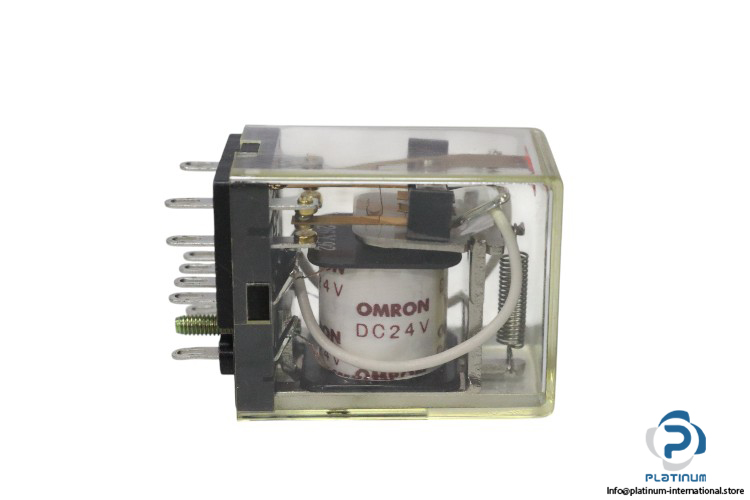

| Coil Voltage | 24 V DC |
| Coil Resistance | 470 (Set Coil) ohm, 940 (Reset Coil) ohm |
| Switching Current | 3 A |
| Contact Configuration | DPDT |
| No. of Poles | 2 |
| Maximum Switching Voltage | 250 V AC, 125 V DC |
| Contact Structure | Single |
| Contact Materials | Gold Plated |
| Terminal Type | PCB Pin |
| Ambient Operating Temperature | -55 to 60° C |
| Dimensions | 28 X 36 X 21.5 mm |
