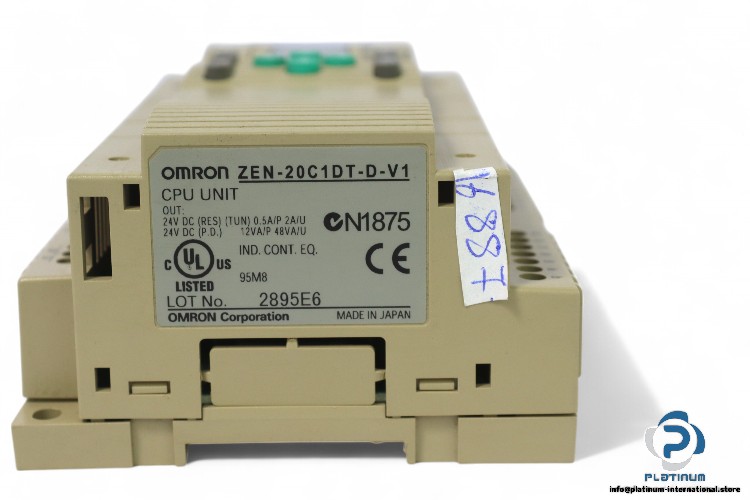

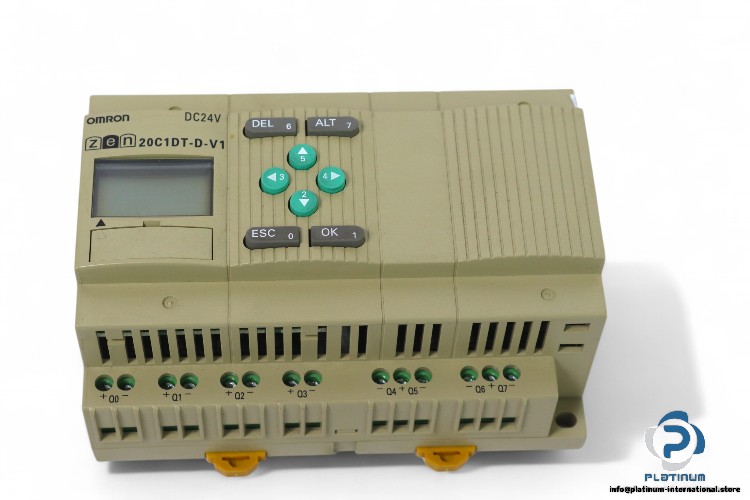

Omron ZEN-20C1DT-D-V1 CPU Unit
Manufacturer: Omron
Type: CPU UNIT (LCD)
Model: ZEN-20C1DT-D-V1
Power supply Voltage: 24 V DC
Allowable power supply voltage: 20.4 to 26.4 V DC
Power consumption: 6.5 W max
Inrush current: 20 A max
No. of input points: CPU Units with 10 I/O Points, I0 to I5, 6 bits
No. of output points: CPU Units with 10 I/O Points, Q0 to Q3, 4 bits
Mounting method: Mounted inside a control panel
Design: 12 columns x 4 lines, with backlight
Ambient temperature: 0 … 55 °C
Frequency: 50/60 Hz
Degree of protection: IP20
