Parker 3560620G Duplex Cylinder
신제품
재고 있음46 단위즉시 배송 가능
22,50$
DUPLEX CYLINDER
PARKER 3560620G Duplex Cylinder with 2-stage operation, aluminum body, and 4 mm pneumatic ports. Ideal for compact industrial automation systems.323560620GActuatorAirAluminumAutomationBodyboreCompactCylinderDuplexIndustrialmmMulti-StageParkerPneumaticTwo-Stage
중고
재고 있음
이 제품은 중고로도 구매하실 수 있습니다.
중고 버전 보기 →
방대한 재고
글로벌 배송
전문 지원
품질 보장

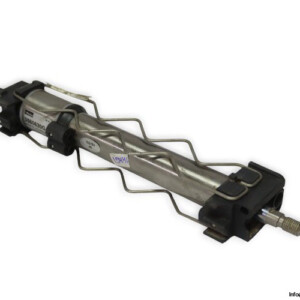

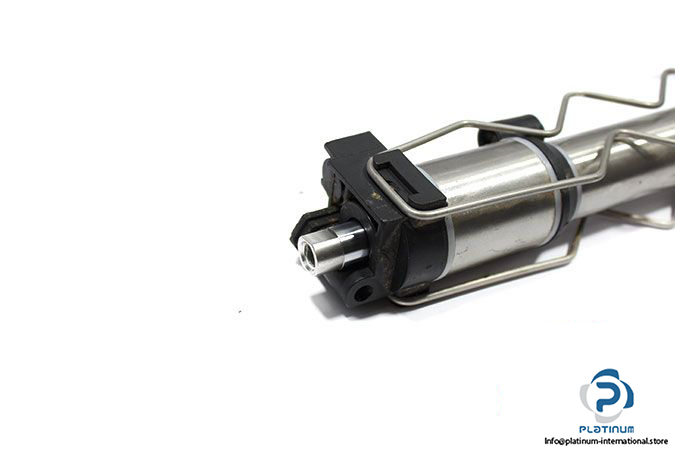

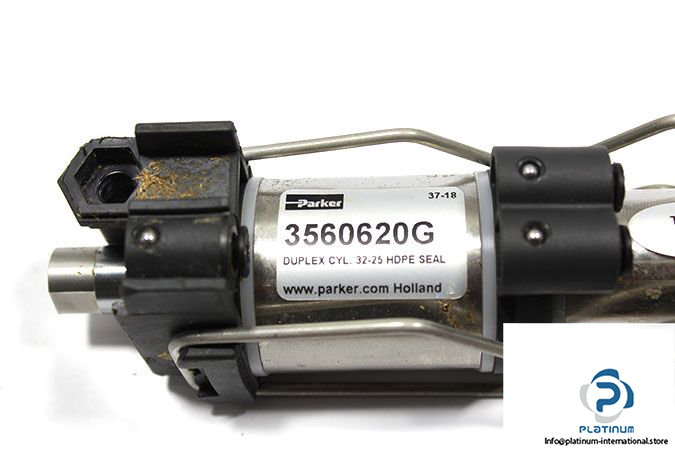

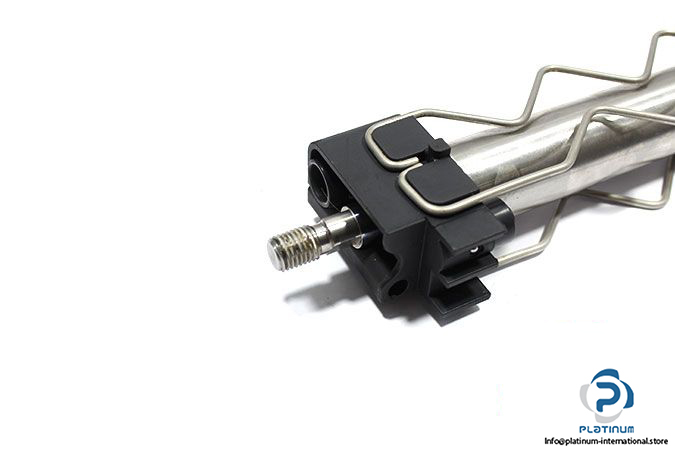

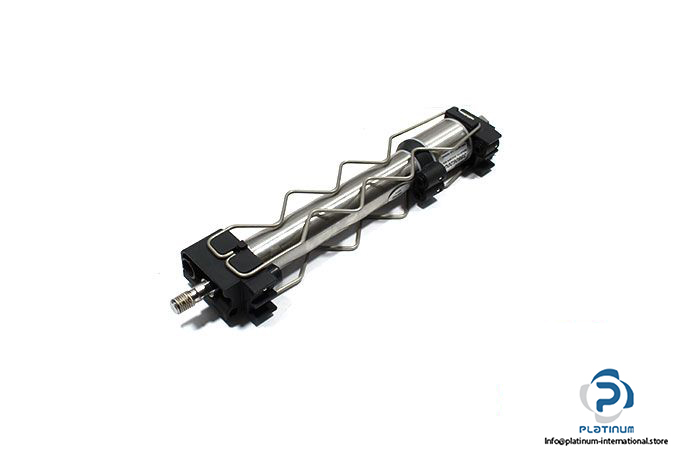

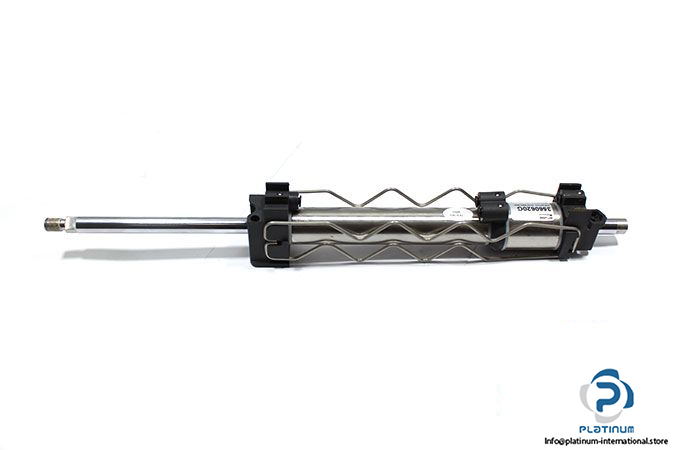

PARKER 3560620G DUPLEX CYLINDER
The PARKER 3560620G Duplex Cylinder is a precision-engineered pneumatic actuator designed for multi-stage motion in compact automation systems. Constructed from durable aluminum, this cylinder operates efficiently within a wide temperature range, delivering reliable performance in demanding industrial environments.
Manufacturer: PARKER
Type: Duplex Cylinder
Model: 3560620G
| Stage 1 Bore Diameter | 32 mm |
| Stage 1 Rod Diameter | 12 mm, Female |
| Stage 1 Stroke | 20 mm |
| Stage 2 Bore Diameter | 25 mm |
| Stage 2 Rod Diameter | 12 mm, Male |
| Stage 2 Stroke | 110 mm |
| Pneumatic Connections | 4 mm |
| Temperature Range | 0 to 60 °C |
| Material | Aluminum |
