Parker DX2-416-70 Double Solenoid Valve
신제품
요청 시 제공 가능
77,77$
Double Solenoid Valve
Parker DX2 5/3 way double solenoid valve with ISO 5599-1 sub-base, high flow (4320 Nl/mn), -0.9 to 12 bar operating pressure, and rugged multi-material construction.-0.9122432049-0805/35599/1ActuatorbarconnectionDoubleDX2DX2.416.70DX241670ElectricalflowHighindustriISONFENl/MnOperatingParkerpilotingPneumaticPressureSeriessolenoidSub-basedtoValveWay
방대한 재고
글로벌 배송
전문 지원
품질 보장

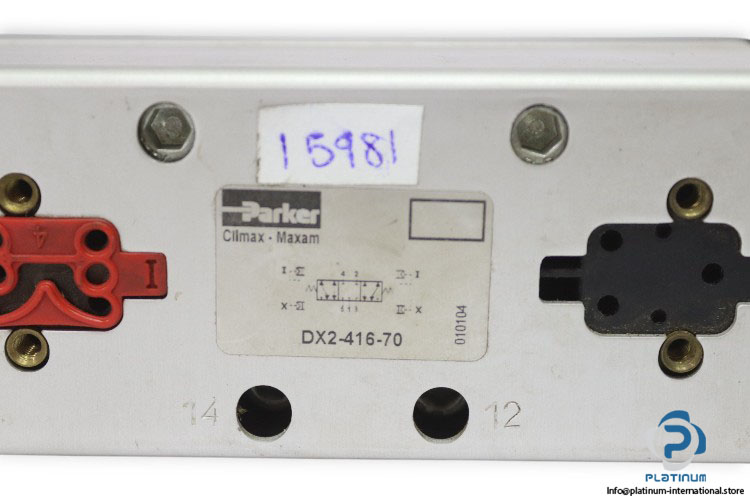

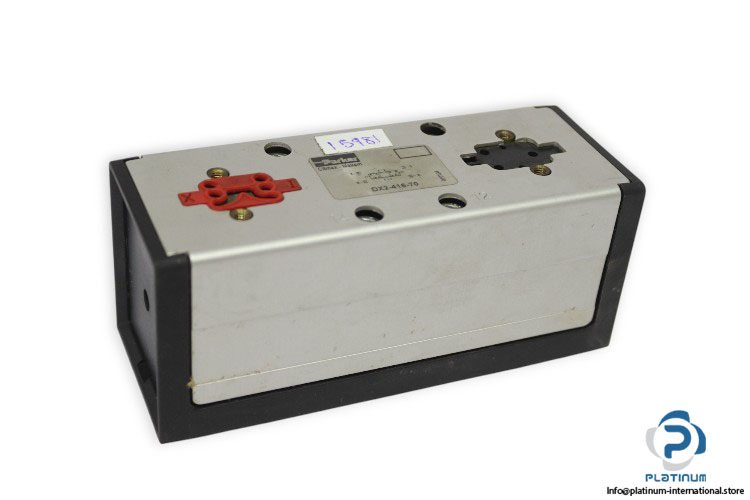

Parker DX2 Double Solenoid Valve
The Parker DX2 series double solenoid valve is a robust, high-flow pneumatic solution for demanding industrial automation. Featuring a 5/3 way function, ISO 5599-1 sub-base compatibility, and durable construction materials, it delivers reliable switching performance across a wide operating pressure and temperature range.
Manufacturer: Parker
Type: Double Solenoid Valve
Model: DX241670 / DX2.416.70
Part No.: 010104
Series: DX2
| Size | 70 mm |
| Function | 5/3 Way |
| Media | Air |
| Actuator | Electrical |
| Standard Subbase | ISO 5599-1 and NFE 49-080 |
| Operating Pressure | -0.9 to 12 bar |
| Piloting Pressure | 2 to 12 bar |
| Flow Rate | 4320 Nl/mn |
| Material “ Valve Member / Seat | Self-lubricating acetal / Ceramic |
| Material “ Body | Polyamide reinforced fiberglass |
| Material “ Casing / End Plates | Anodized aluminum / Painted zinc plated steel |
| Material “ Valve Plate | Zamak |
| Material “ Seals | Nitrile |
| Material “ Springs | Stainless steel |
| Material “ Screws | Zinc plated steel |
| Material “ Function Selector Top Cover / Seal | Polyamide reinforced fiberglass / Polyester |
| Working Temperatures | -10 to +60°C |
| Connection | Sub-based |
