Parker P8SAGPFTX Magnetic Sensor
재고 있음1 단위즉시 배송 가능
Magnetic Cylinder Position Sensor
Parker P8SAGPFTX from the P8S series offers reliable cylinder position detection with PNP NO output, IP67 protection, and wide 10“30 V DC operating range.AutomationCylinderDetectionIndustrialIP67MagneticNOP8SP8SAGPFTXParkerPneumaticPNPPositionSensorSeries
방대한 재고
글로벌 배송
전문 지원
품질 보장

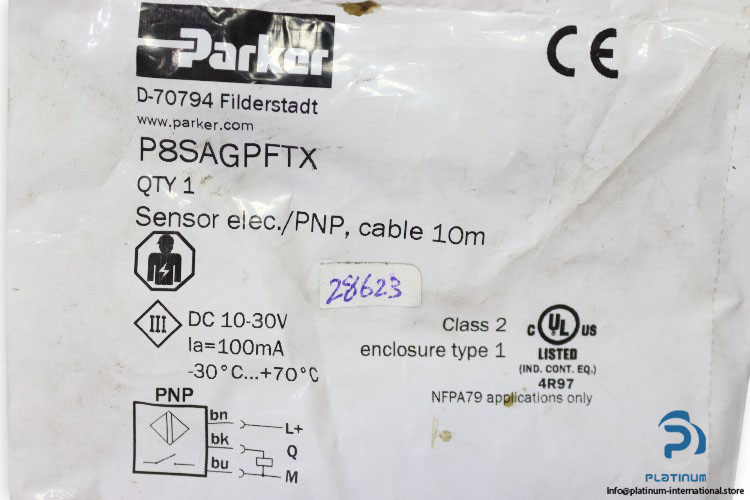

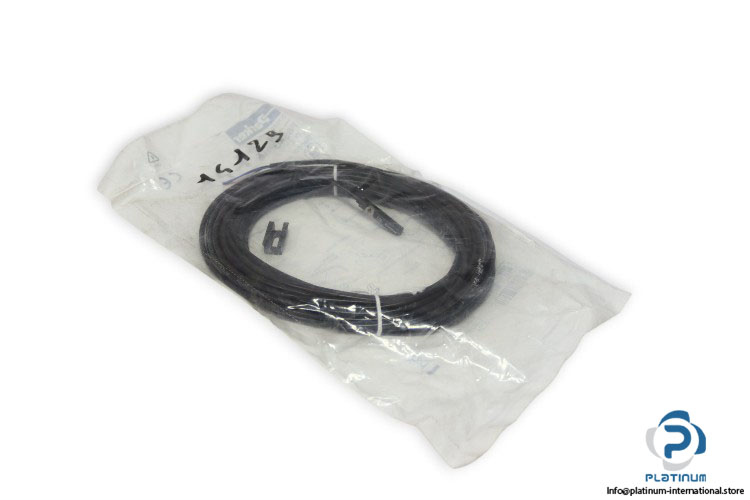

Parker P8SAGPFTX Magnetic Cylinder Position Sensor
The Parker P8SAGPFTX from the P8S series is a compact and durable magnetic cylinder position sensor engineered for precise detection in pneumatic and automation systems. With IP67 protection, wide voltage range, and certified safety compliance, it ensures reliable performance in demanding industrial environments.
Manufacturer: Parker
Type: Magnetic Cylinder Position Sensor
Model: P8SAGPFTX
Series: P8S
| Voltage | 10 to 30 V DC |
| Current | 100 mA |
| Output | PNP, Normally Open (NO) |
| Cable | 3-wire, 10 m PVC, Flying Lead |
| Protection | IP67 |
| Mounting | T-slot insertion, quarter-turn fix |
| Certifications | EN 60947-5-2, CE, C-UL-US, RoHS, IEC, IEC-Ex |
| Temperature | -30 to 70°C |
