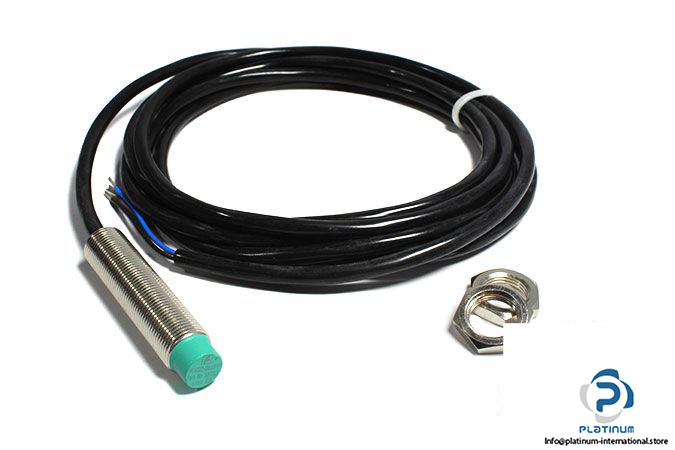

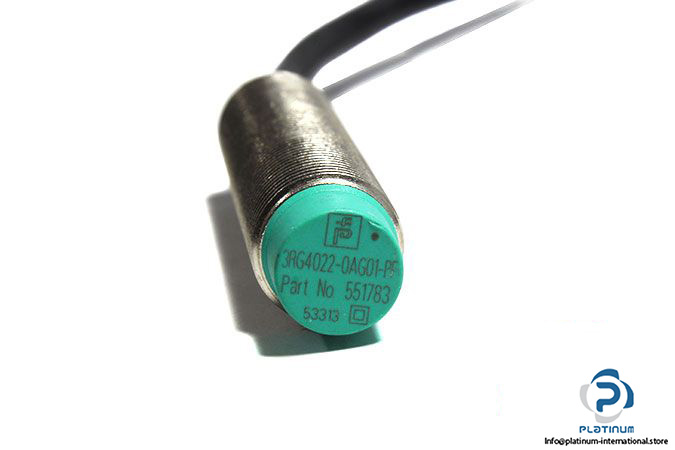

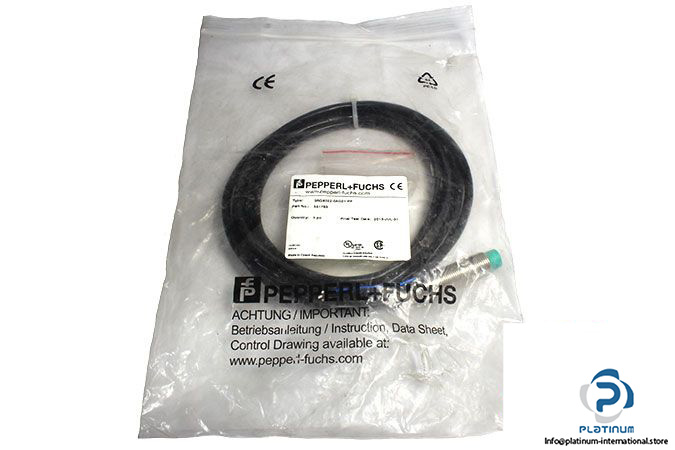

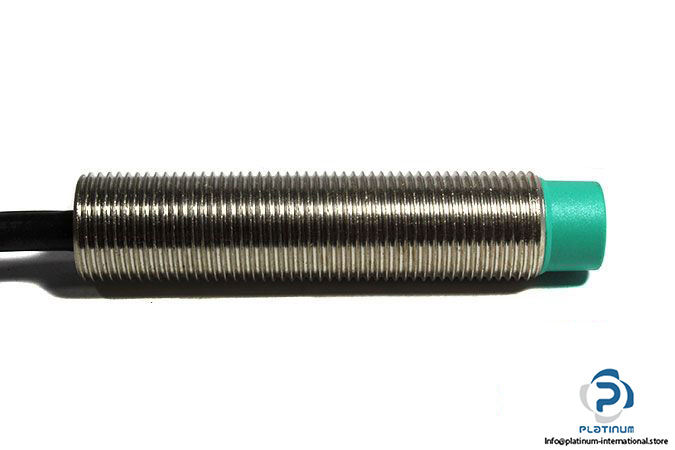

Pepperl+Fuchs 3RG4022-0AG01-PF Inductive Proximity Switch
Manufacturer: PEPPERL FUCHS
Type: Inductive Proximity Switch
Model: 3RG4022-0AG01-PF
Part No.: 551783
Rated Operating Distance: 4 mm
Rated Operating Voltage: 10 … 34 V DC
Rated Operational Current: 200 mA
No-Load Supply Current: 17 mA
Electrical Design: PNP
Switching Output: Normally Open
Connection: Cable 2m, 3-Wire
Housing Material: Brass
Ambient Temperature: -25 … 85 °C
Degree of Protection: IP67
Diameter, Housing Length: 12, 55 mm
Weight: 0.085 kg
