Pepperl+Fuchs GLV18-55/73/120 Retroreflective Sensor
신제품
재고 있음1 단위즉시 배송 가능
Pepperl+Fuchs 편광 필터가 장착된 후방 반사 센서로, LED 광원, PNP 출력 및 산업 자동화 애플리케이션용 내구성 IP67 하우징과 함께 최대 4m까지 신뢰할 수 있는 감지를 제공합니다.
방대한 재고
글로벌 배송
전문 지원
품질 보장
Pepperl+Fuchs GLV18-55-73-120 Retroreflective Sensor
The Pepperl+Fuchs GLV18-55-73-120 is a compact retroreflective sensor with polarization filter designed for reliable object detection in industrial automation systems. It provides stable sensing performance with a detection range up to 4 meters and features LED light source technology for consistent operation in demanding environments.
Manufacturer: Pepperl+Fuchs
Type: Retroreflective Sensor With Polarization Filter
Model: GLV18-55-73-120
Part No.: 188559
Material
| Effective Detection Range | 0 / 4 m |
| Reflector Distance | 0.05 / 4 m |
| Operating Voltage | 10 To 30 V DC |
| No-Load Supply Current | 20 mA |
| Signal Output | 2 PNP, Complementary, Short-Circuit Protected, Open Collectors |
| Switching Type | Light / Dark On |
| Switching Voltage | 30 V DC |
| Switching Current | 100 mA |
| Light Source | LED |
| Ambient Temperature | -25 / 60 °C |
| Degree Of Protection | IP67 |

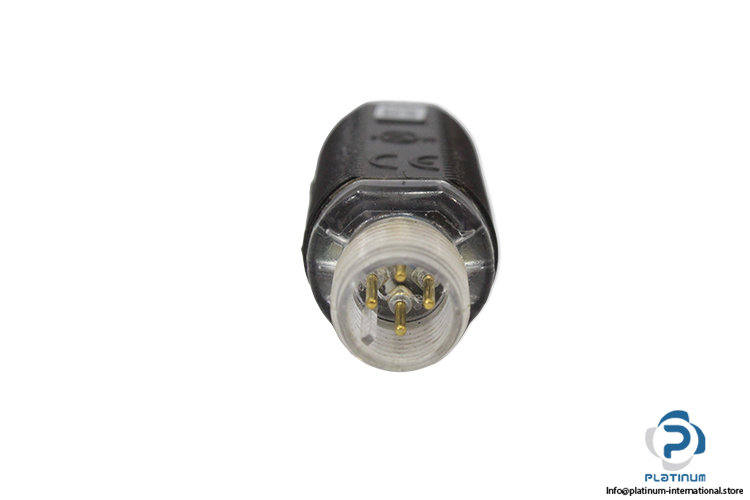

| Connection Connector | M12 x 1, 4-Pin |
| Housing | PC |
| Optical Face | PMMA |
| Connector | Plastic |
| Dimensions | 15 X 43.9 mm, M12 |

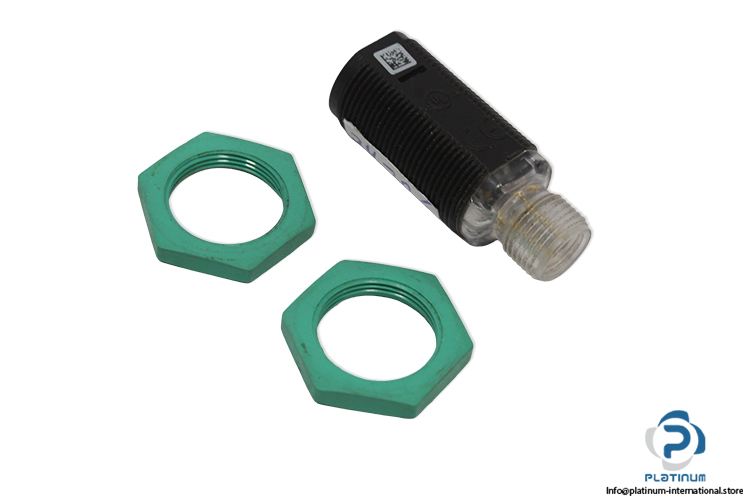

| Accessory | Hex Nuts For Securing Circular Connectors |
| Recommendation | Ideal for conveyor systems, packaging machines, and automated production lines requiring accurate object detection and reliable switching performance. |
