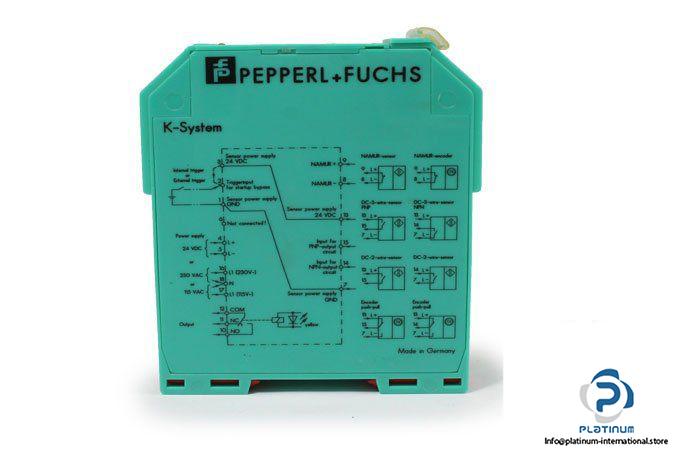

Pepperl+Fuchs KHU8-DW-1.D Rotational Speed Controller

Name: PEPPERL+FUCHS KHU8-DW-1.D ROTATIONAL SPEED CONTROLLER
SKU: 967177
Availability: LimitedAvailability

pepperlfuchs-khu8-dw-1-d-rotational-speed-controller-2

pepperlfuchs-khu8-dw-1-d-rotational-speed-controller-3

pepperlfuchs-khu8-dw-1-d-rotational-speed-controller-4

pepperlfuchs-khu8-dw-1-d-rotational-speed-controller-5

pepperlfuchs-khu8-dw-1-d-rotational-speed-controller-6

중고

재고 있음14 단위즉시 배송 가능

SKU

967177

카테고리

Safety Relays

상태

중고

Controller Relay Rotational Safety Speed

방대한 재고

글로벌 배송

전문 지원

품질 보장

Manufacturer: PEPPERL+FUCHS

Type: ROTATIONAL SPEED CONTROLLER

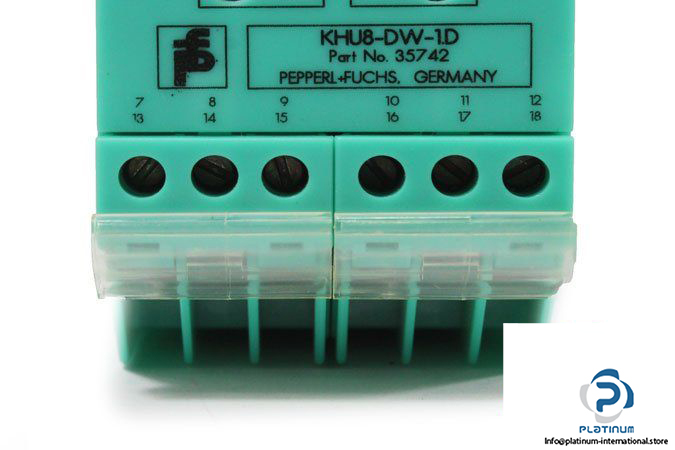

Model: KHU8-DW-1.D

Part No.: 35742

Pre-Selection: single

Programming: keypad-driven menu

Rated Voltage: 24 V DC +15 % / -10 %; 115 V AC ±10 %; 230 V AC ±10 %

Power Consumption: 5 W / 5 VA

Type: 7-segment LED display, red

Input:

Trigger input: 12 V (terminal 2), max. 30 V, impedance 2.8 kOhm

Control Input: NAMUR: 1,2 mA (terminal 8, 9), max. 8.2 V and 6.5 mA, impedance 1.2 kOhm / PNP SENSOR: 12 V (terminal 15), max. 30 V, impedance 2.8 kOhm

Output:

Relay: 1 changeover contact

Sensor Supply: 24 V DC ± 10 %, 30 mA , short-circuit proof

Contact Loading: 250 VAC/2, 40 VDC/2 A

Duration of Momentary Impulse: 0 … 999.9 s

Ambient Temperature: -20 … 70 °C

Protection Degree: IP20

Weight: approx. 0.36 Kg

Dimensions: 40 X 92.5 X 115 mm
