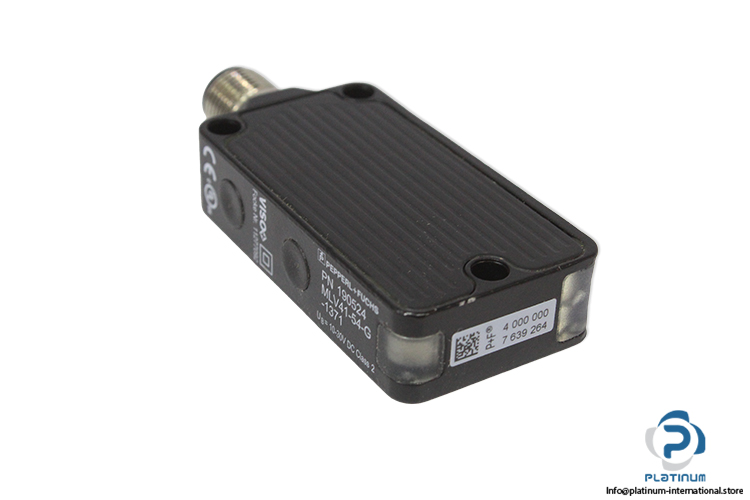

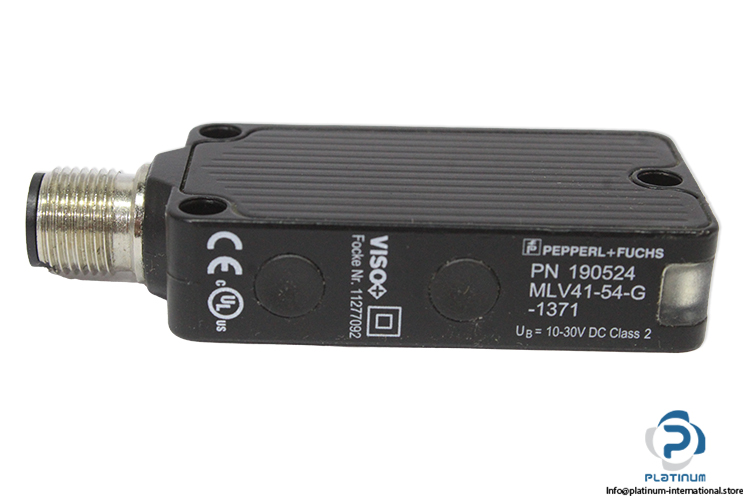

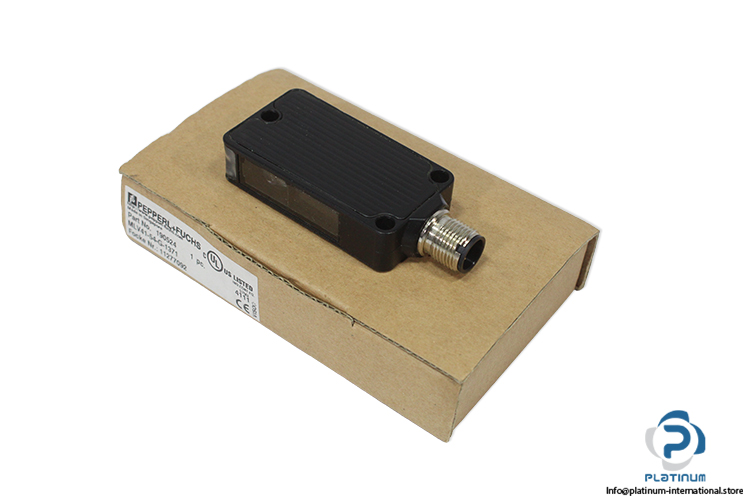

Pepperl+Fuchs MLV41-54-G-1371 Retroreflective Sensor
The Pepperl+Fuchs MLV41-54-G-1371 Retroreflective Sensor is a high-performance industrial sensor designed for precise object detection with reliable operation in demanding environments. Featuring advanced optics and fast response time, this sensor ensures accurate detection across various automation and material handling applications.
Manufacturer: Pepperl+Fuchs
Type: Retroreflective sensor
Model: MLV41-54-G-1371
Part No.: 190524
Focke Nr.: 11277092
Code: 4111
| Voltage | 10-30 V DC |
| No-load supply current | max. 35 mA |
| Signal output | 2 push-pull (4 in 1) outputs |
| Response time | 0.5 ms |
| Effective detection range | 0-4 m in TEACH mode / 0-5.2 m at switch position "N" |
| Threshold detection range | 6.5 m |
| Light source | LED |
| Light type | modulated visible red light, 660 nm |
| Diameter of the light spot | approx. 100 mm at detection range 4 m |
| Opening angle | 1.5 ° |
| Ambient light limit | 40000 Lux |
| Class | 2 |
| Ambient temperature | -40 to 60 °C |
| Degree of protection | IP65 |

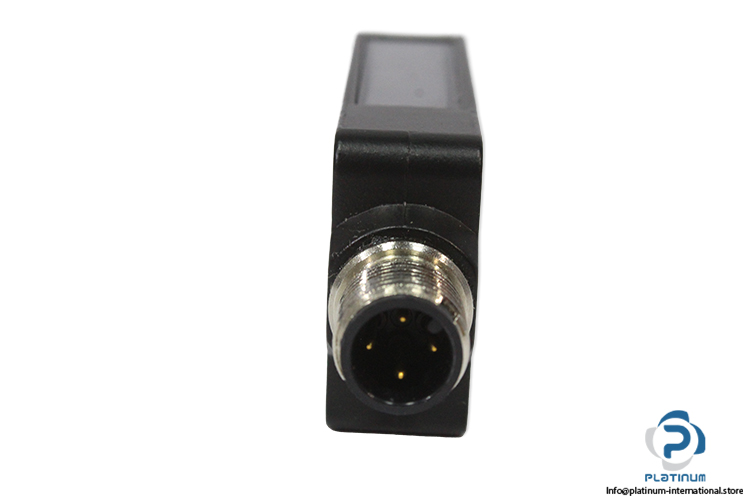

| Connection | 5-pin, M12 x 1 connector |
| Material | Housing Aluminum, Delta-Seal coated |
| Optical face | glass pane |
| Connector | metal |
| Dimensions | 56.5 x 31 x 13.6 mm |
| Recommendation | Ideal for high-speed industrial automation systems requiring precise and stable object detection performance. |
