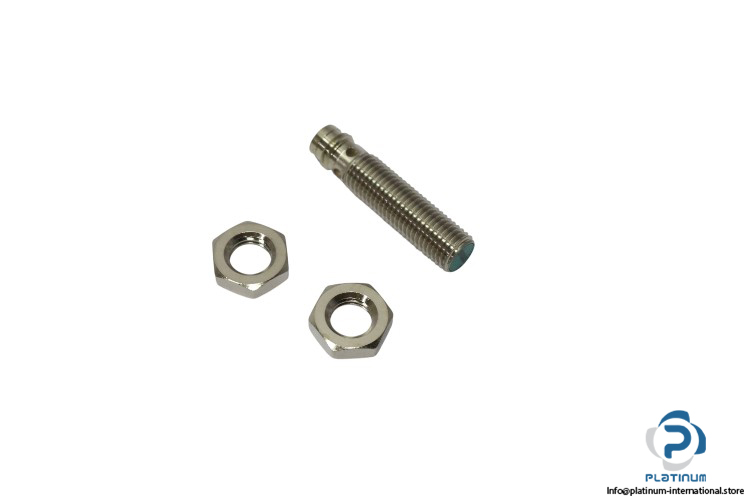

Pepperl+Fuchs NBB2-8GM25-E3-V3 Inductive Sensor
신제품
재고 있음5 단위즉시 배송 가능
Inductive Sensor
The Pepperl+Fuchs NBB28GM25E3V3 inductive sensor offers a 2 mm sensing range with a PNP output. With IP65/IP66/IP67 protection and a wide operating temperature range of -40 to 85°C, it ensures reliable performance in industrial environments. Ideal for flush mounting with an M8 connector plug.2brasscomasFlushInductiveIndustrialIP65mmmountNBB28GM25E3V3nickel-platedPepperl+FuchsPNPProximityRangeSensingSensor
방대한 재고
글로벌 배송
전문 지원
품질 보장
Pepperl+Fuchs NBB28GM25E3V3 “ Inductive Sensor
The Pepperl+Fuchs NBB28GM25E3V3 is a high-performance inductive sensor designed for precise detection in industrial applications. With robust construction and excellent protection standards, it ensures reliable operation across a broad temperature range and is ideal for flush mounting in confined spaces.
Manufacturer: Pepperl+Fuchs
Type: Inductive Sensor
Model: NBB28GM25E3V3
Part No.: 108368
COMAS Part No.: 0422.492.000.085
| Sensing Range | 2 mm |
| Operating Voltage | 5 to 30 V DC |
| Electrical Design | PNP |
| Switching Output | Normally closed |
| Operating Current | 0 to 100 mA |
| Connector Type | Connector plug M8 x 1, 3-pin |
| Dimensions | M8, 40 mm |
| Housing Material | Brass, nickel-plated |
| Sensing Face | LCP |
| Degree of Protection | IP65 / IP66 / IP67 |
| Operating Temperature | -40 to 85°C |
| Mounting | Flush-mountable |
