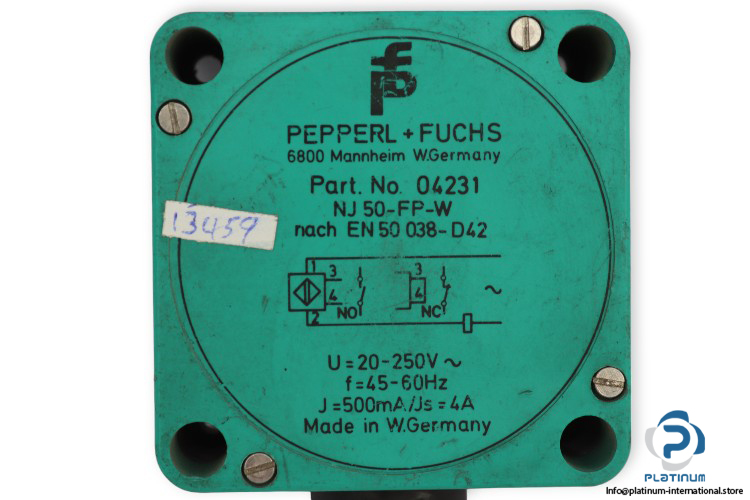

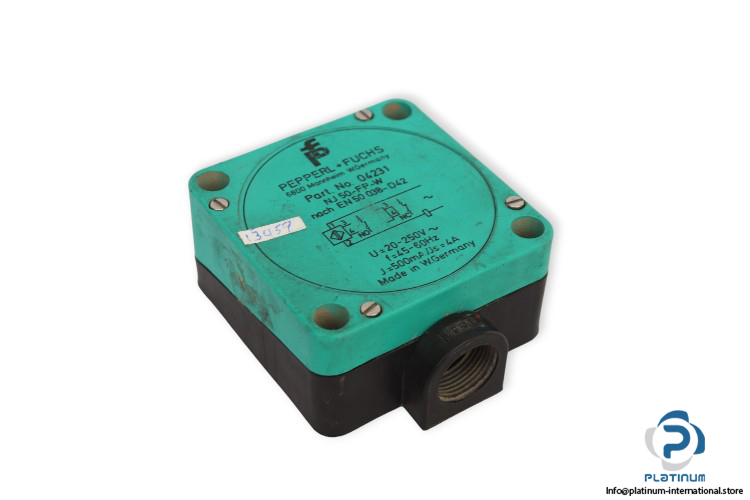

Pepperl+Fuchs NJ 50-FP-W Inductive Sensor

Name: PEPPERL+FUCHS NJ 50-FP-W INDUCTIVE SENSOR
SKU: 1043835
Availability: LimitedAvailability

pepperl-fuchs-NJ-50-FP-W-inductive-sensor-(used)

pepperl-fuchs-NJ-50-FP-W-inductive-sensor-(used)-1

중고

재고 있음1 단위즉시 배송 가능

제조사: Pepperl+Fuchs 유형: 유도 센서 모델: NJ50-FP-W 부품 번호: 04231

제조업체

PEPPERL+FUCHS

SKU

1043835

카테고리

Sensors

상태

중고

50mm Fuchs Inductive NC NO Pepperl Pepperl+Fuchs Sensor Sn:

방대한 재고

글로벌 배송

전문 지원

품질 보장

Manufacturer: Pepperl+Fuchs
Type: Inductive sensor
Model: NJ50-FP-W
Part No.: 04231

Sensing Range: 50 mm
Assured Operating Distance: 0 …. 40.5 mm
Operating Voltage: 20 … 250 V AC
Frequency: 45 … 60 Hz
Operating current: 500 mA
Switching element function: ACMake/Break function
Switching Output: 1 Normally Open, 1 Normally closed
Housing material: PBT
Sensing Face Material: PBT
Protection degree: IP67
Standard: EN 50 038-D42
Ambient temperature: -25 … 70 °C
Dimensions: 80 x 40 x 80 mm

사양	가치
Weight	0,42 kg
Condition	Used
Manufacturer	PEPPERL+FUCHS
Type of Product	Inductive Sensor
Nominal Voltage [AC]	230 V
Max. Sensing Range [mm]	50
Shelf No.	240520
Part No.	4231
Temperature [°C]	-25 ... 70 °C
Dimensions [mm]	80 x 40 x 80
