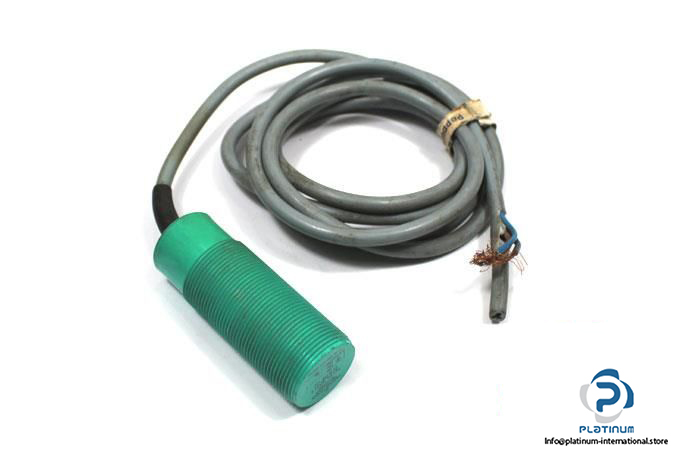

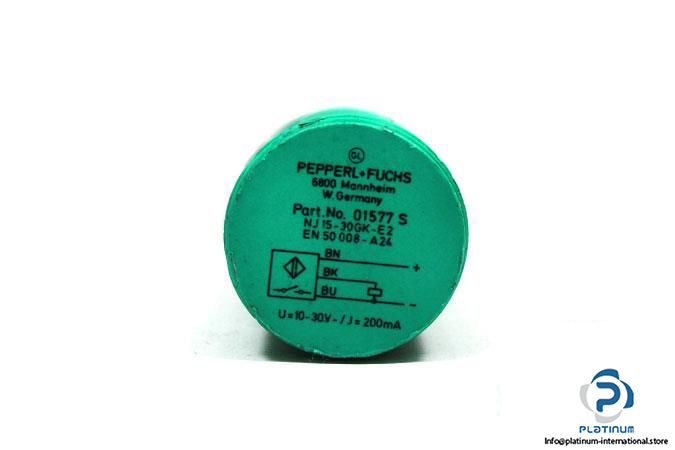

Pepperl+Fuchs NJ15-30GK-E2 Inductive Sensor
Manufacturer: PEPPERL FUCHS
Type: INDUCTIVE SENSOR
Model No.: NJ1530GKE2
Part No.: 01577S
Rated operating distance: 15 mm
Assured operating distance: 0 … 12.15 mm
Operating Voltage: 10 … 30 V DC
Operating Current: 200 mA
Switching frequency: 0 … 300 Hz
Electrical design: PNP
Switching output: Normally open
Connector type: PVC Cable
Protection class: II
Enclosure rating: IP68
Ambient Operating temperature: -15 … 70°C
Diameter, housing length: 30, 80 mm
Housing material: PBT
Sensing face material: PBT
Mounting: Non-flush mountable
Condition: Used
