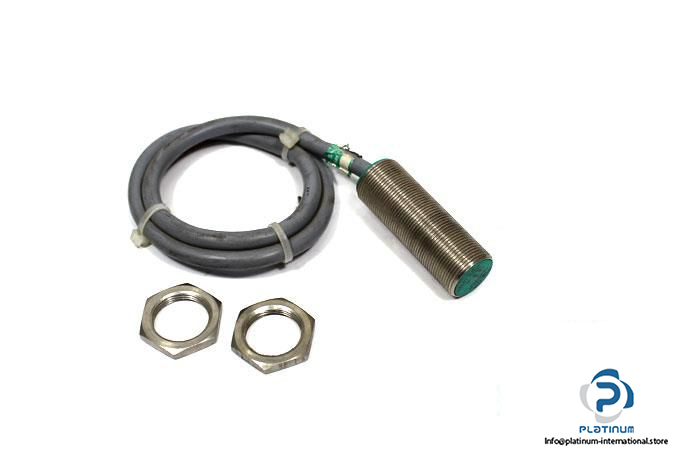

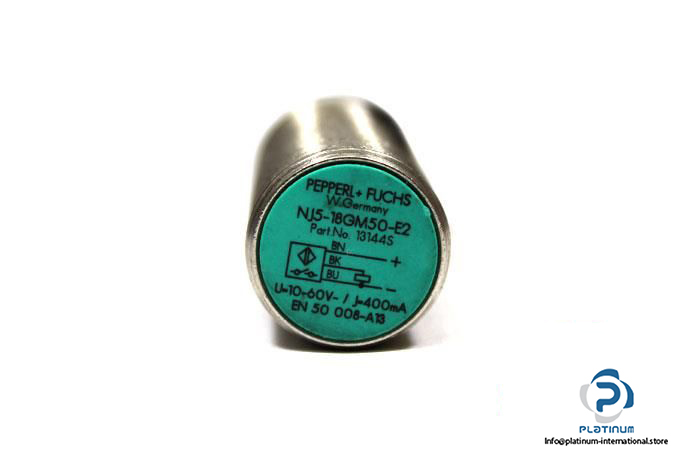

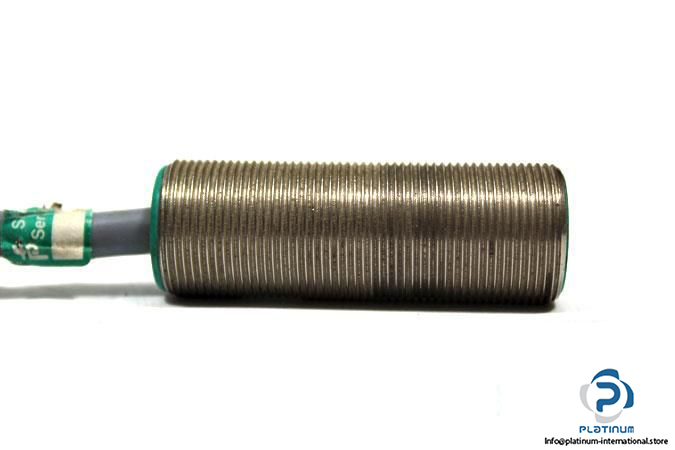

Pepperl+Fuchs NJ5-18GM50-E2 Inductive Sensor

Manufacturer: PEPPERL FUCHS

Type: INDUCTIVE SENSOR

Model No.: NJ518GM50E2

Part No.: 13144S

Rated operating distance: 5 mm

Assured operating distance: 4.5 … 5.5 mm

Operating Voltage: 10 … 60 V DC

Operating Current:  400 mA

Switching frequency: 0 … 1500 Hz

Electrical design: PNP

Switching output: Normally open

Connector type: PVC Cable

Protection class: II

Enclosure rating: IP67

Ambient Operating temperature: -25 … 70°C

Diameter, Housing length: 18 ,51 mm

Housing material: Stainless steel

Sensing face material: PBT

Mounting: Flush-mountable

Condition: New
