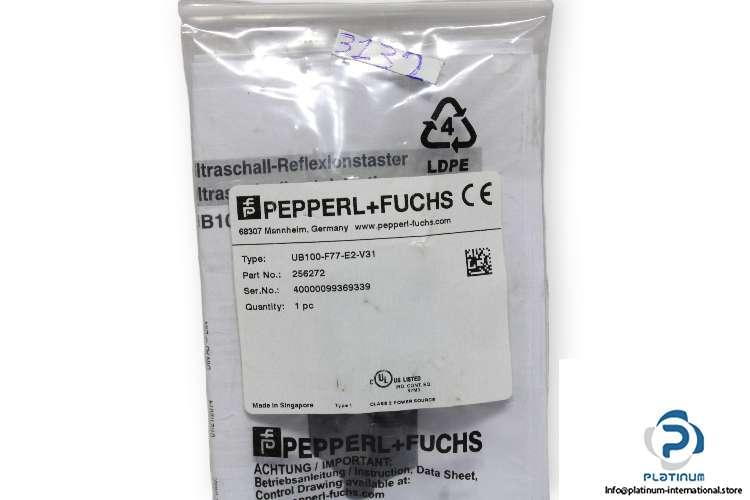

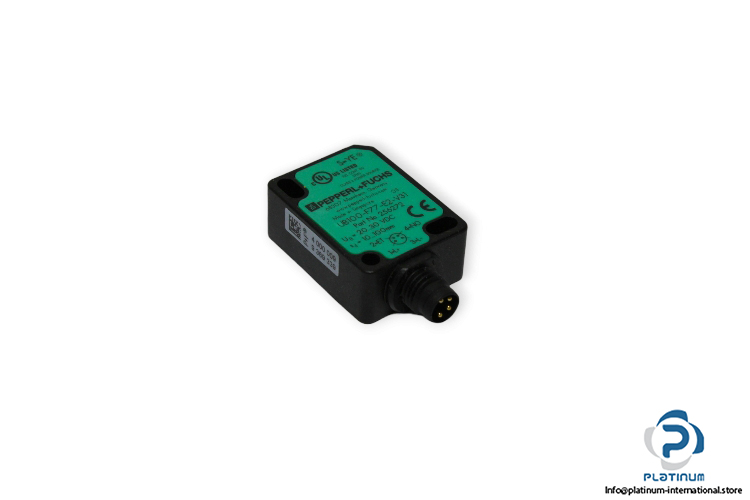

Pepperl+Fuchs UB100-F77-E2-V31 Ultrasonic Direct Detection Sensor
신제품
재고 있음13 단위즉시 배송 가능
200,00$
초음파 직접 감지 센서
방대한 재고
글로벌 배송
전문 지원
품질 보장
Manufacturer: PEPPERL+FUCHS
Type: Ultrasonic Direct Detection Sensor
Model: UB100-F77-E2-V31
Part No.: 256272
Sensing Range: 0 … 100 mm
Adjustment Range: 30 … 100 mm
Dead Band: 0 … 10 mm
Standard target Plate: 20 mm x 20 mm
Operating Voltage: 20 … 30 V DC
Electrical Design: PNP
Switching Output: Normally open
Connector type: M8 x 1 connector , 4-pin
Housing Material: Polycarbonate, epoxy resin/hollow glass sphere mixture; polyurethane foam
Operating Temperature: -10 … 50°C
