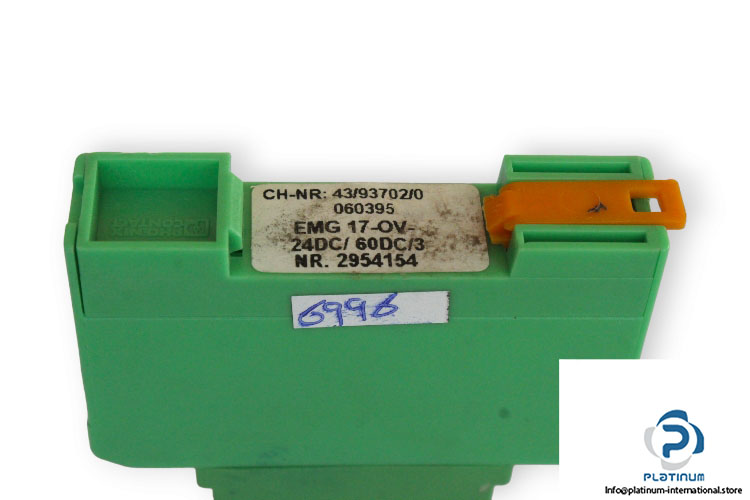

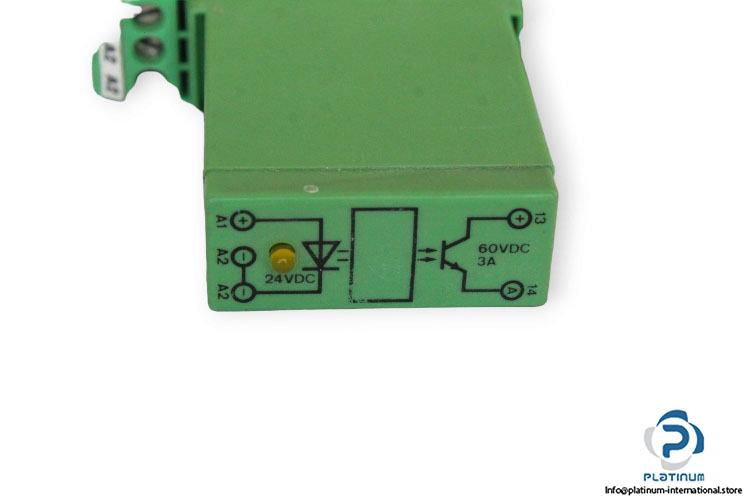

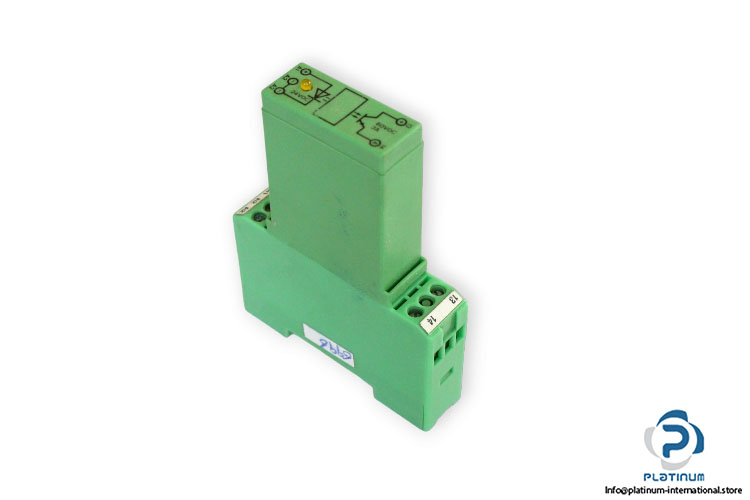

Phoenix Contact EMG 17-OV-24DC/60DC/3 Solid State Relay Module
55,55$
제품 설명: 고체 상태 릴레이 모듈
Manufacture: Phoenix Contact
Type: Solid State Relay Module
Model: EMG 17OV24DC/60DC/3
Order No.: 2954154
Input:
Nominal Input Voltage: 24 V DC
Typical Input Current: 7 mA
Input Voltage Range: 19.2 … 28.8 V DC
Protective circuit: Reverse polarity protection; Polarity protection diode, Surge protection
Connection Method: Screw connection
Stripping Length: 8 mm
Screw thread: M3
Output:
Output Voltage Range: 60 V DC
Limiting Continuous Current: 3 A
Voltage Drop at max. Limiting Continuous Current: 1.2 V
Type of Protection: Reverse polarity protection; Polarity protection diode, Surge protection
Contact switching type: 1 N/O contact
Screw Thread: M3
Degree of protection: IP20
Mounting type: DIN rail mounting
Ambient Temperature (Operation): -20 … 60 °C
Dimensions: 75 X 17.5 X 102 mm
