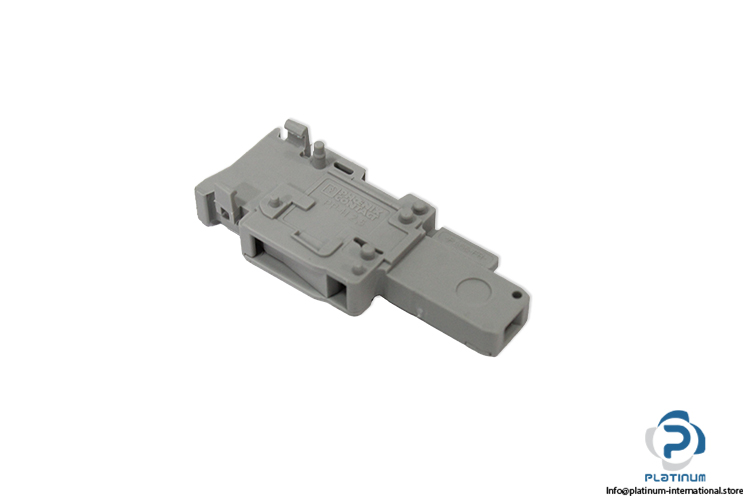

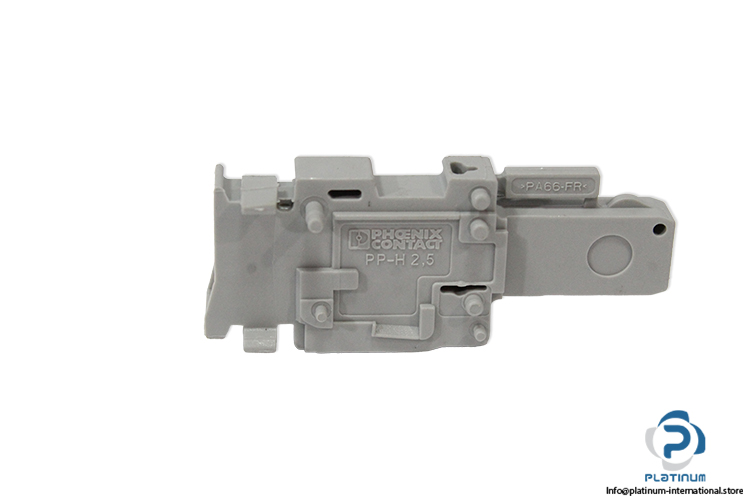

PHOENIX CONTACT PP-H 2,5/1-R Plug
The PHOENIX CONTACT PP-H 2,5/1-R is a high-quality industrial plug designed for secure and reliable electrical connections in railway industry, machine building, and plant engineering applications. It is manufactured according to IEC 61984 standards and built to withstand demanding environmental conditions.
Manufacturer: PHOENIX CONTACT
Type: Plug
Model: PP-H 2,5/1-R
Part No.: 32 10 12 7
SN: 4046356 333535
Code: 3009992444
Insulation Characteristics:
Dimensions:
| Area of Application | Railway Industry, Machine Building, Plant Engineering |
| Number of Positions | 1 |
| Pitch | 5.2 mm |
| Number of Connections | 1 |
| Number of Rows | 1 |
| Potentials | 1 |
| Overvoltage Category | III |
| Degree of Pollution | 3 |
| Rated Surge Voltage | 6 kV |
| Maximum Power Dissipation (Nominal Condition) | 0.77 W |
| Width | 5.2 mm |
| Height | 15.8 mm |
| Depth | 40.2 mm |
| Pitch | 5.2 mm |
| Insulating Material | PA |
| Ambient Temperature (Operation) | -60 °C |
| Ambient Temperature (Storage/Transport) | -25 °C ... 60 °C (For A Short Time, Not Exceeding 24 h, -60 °C To +70 °C) |
| Connection In Accordance With Standard | IEC 61984 |
