Phoenix Contact PSM-ME-RS232/RS232-P Interface Converter
중고
재고 있음1 단위즉시 배송 가능
55,55$
Interface Converter
The PHOENIX CONTACT PSM-ME-RS232/RS232-P is a compact and reliable interface converter designed for RS-232 communication in industrial systems. Operates on 24V AC/DC with IP20 protection and pluggable screw connections.24vCommunicationconnectionContactConverterDeviceIndustrialInterfaceIP20PhoenixRS-232screwSerialSignal
방대한 재고
글로벌 배송
전문 지원
품질 보장

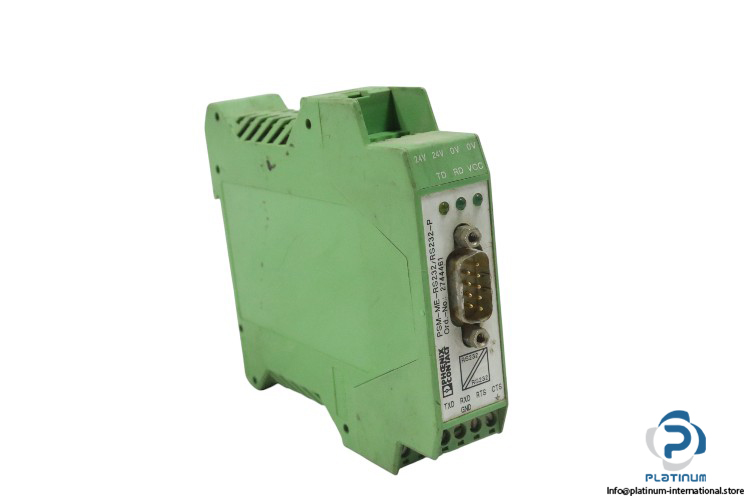

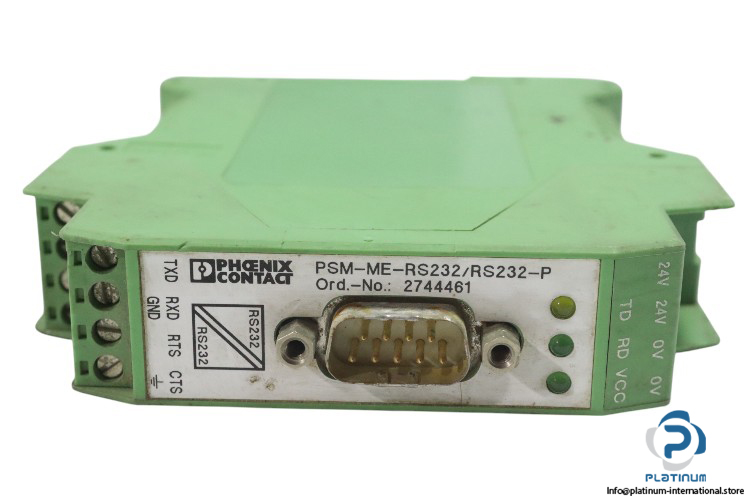

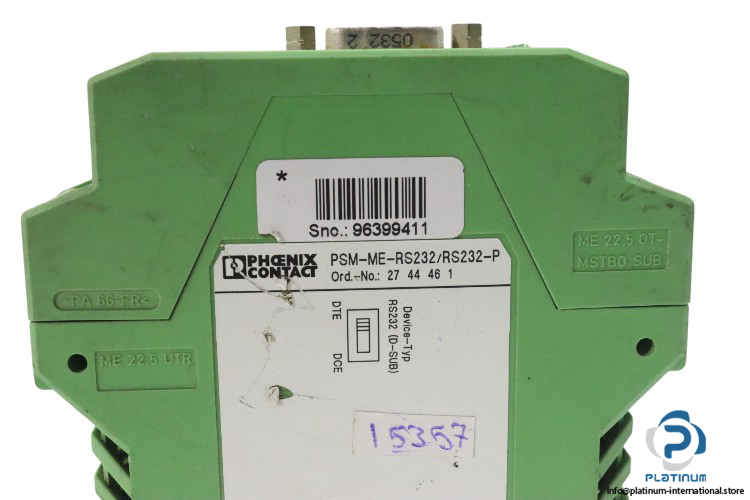

PHOENIX CONTACT PSM-ME-RS232/RS232-P Interface Converter
The PHOENIX CONTACT PSM-ME-RS232/RS232-P is a high-reliability interface converter designed for industrial communication systems. It supports secure and efficient RS-232 signal transmission, offering robust construction and convenient installation features.
Manufacturer: PHOENIX CONTACT
Type: Interface Converter
Model: PSM-ME-RS232/RS232-P
Order No.: 2744461
Technical Data:
- Nominal Supply Voltage: 24 V AC/DC
- Supply Voltage Range: 19.2 V AC/DC to 28.8 V AC/DC
- Max. Current Consumption: 40 mA
- Conductor Cross Section Flexible: 0.2 to 2.50 mm²
- Connection Method: Pluggable Screw Connection
- Degree of Pollution: 2
- Material (Housing): PA
- Degree of Protection: IP20
- Ambient Temperature (Operation): 0 to 55 °C
- Dimensions: 99 x 22.5 x 118.6 mm
