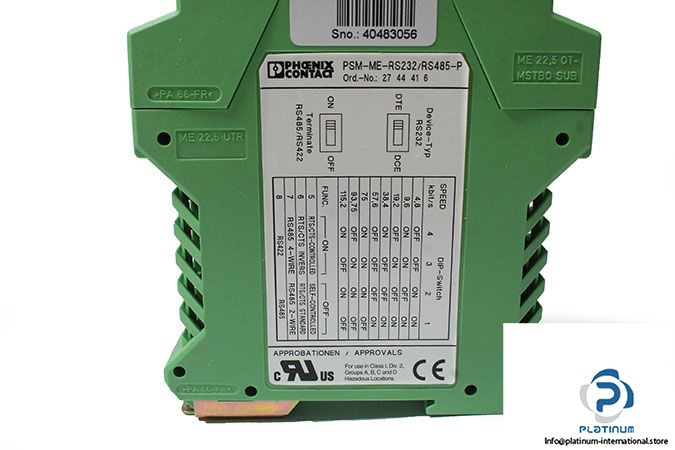

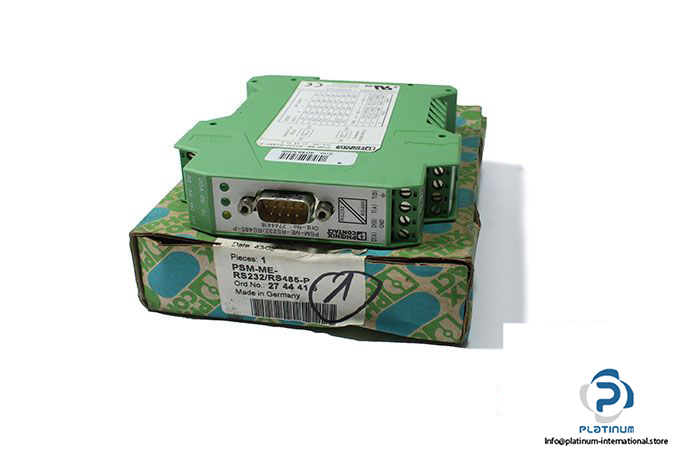

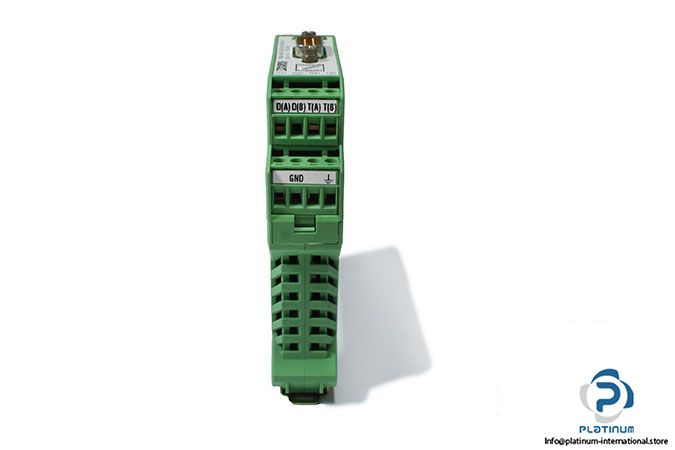

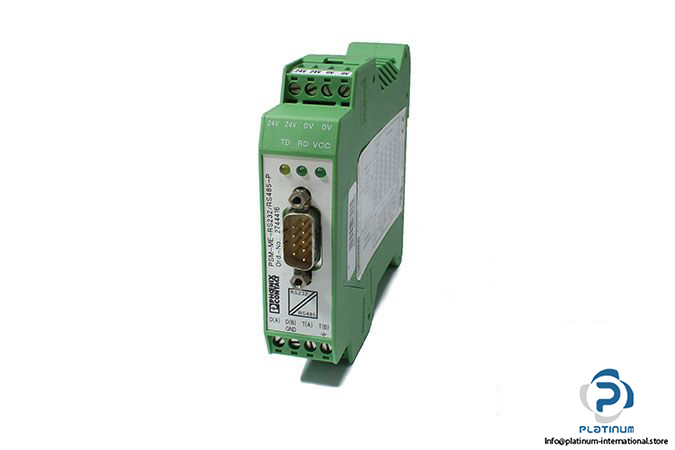

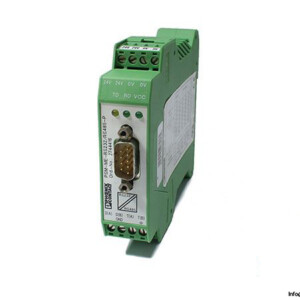

Phoenix Contact PSM-ME-RS232/RS485-P – 2744416 Interface Converter
신제품
요청 시 제공 가능
65,00$
방대한 재고
글로벌 배송
전문 지원
품질 보장
Manufacturer: Phoenix Contact
Type: Interface Converter
Model: PSM-ME-RS232/RS485-P – 2744416
Order No.: 2744416
Nominal Supply Voltage: 24 V AC/DC
Supply Voltage Range: 18 … 30 V AC/DC (Via Pluggable COMBICON Screw Terminal Block)
Max. Current Consumption: 100 mA
Frequency Range: 0.15 … 80 MHz
Typical Current Consumption: 85 mA (24 V DC)
Conductor Cross Section Flexible: 0.2 … 2.50 mm²
Interface 1 Connection Method: D-SUB 9 plug
Interface 2 Connection Method: Pluggable Screw Connection
Degree of Pollution: 2
Color: green
Degree of Protection: IP20
Ambient Temperature (Operation): -40 … 70 °C
Dimensions: 99 X 22.5 X 114.5 mm
Weight: 0.21 kg
