Phoenix Contact QUINT-DIODE/40 2938963 Redundancy Module

Name: PHOENIX CONTACT QUINT-DIODE/40 2938963 REDUNDANCY MODULE
SKU: 1017518
Availability: LimitedAvailability

phoenix-contact-QUINT-DIODE_40-redundancy-module-(used)

phoenix-contact-QUINT-DIODE_40-redundancy-module-(used)-1

phoenix-contact-QUINT-DIODE_40-redundancy-module-(used)-2

중고

재고 있음3 단위즉시 배송 가능

중복 모듈 Phoenix Contact QUINT-DIODE/40 중복 모듈로 24 V DC 입력, 40 A 출력 전류, IP20 보호 및 신뢰할 수 있는 전원 분배를 위한 컴팩트 DIN 레일 하우징을 갖추고 있습니다.

제조업체

PHOENIX CONTACT

SKU

1017518

카테고리

PLC Modules

상태

중고

24 40 a Contact dc DIN Industrial IP20 Module Output Phoenix Power Protection Quint QUINT-DIODE/40 rail Redundancy V

방대한 재고

글로벌 배송

전문 지원

품질 보장

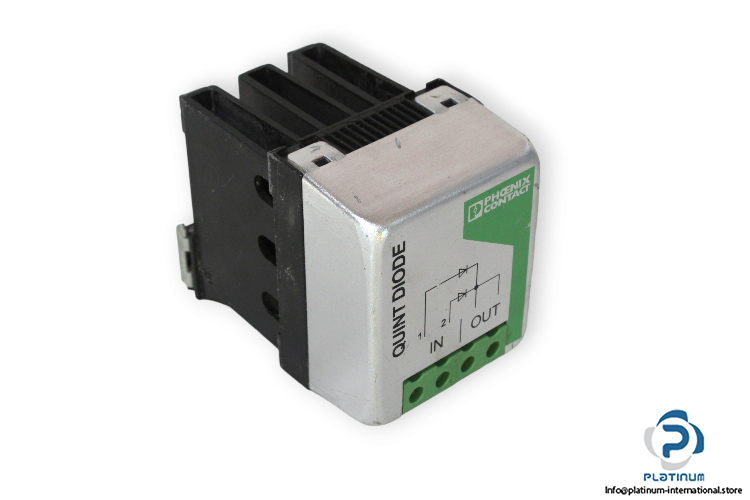

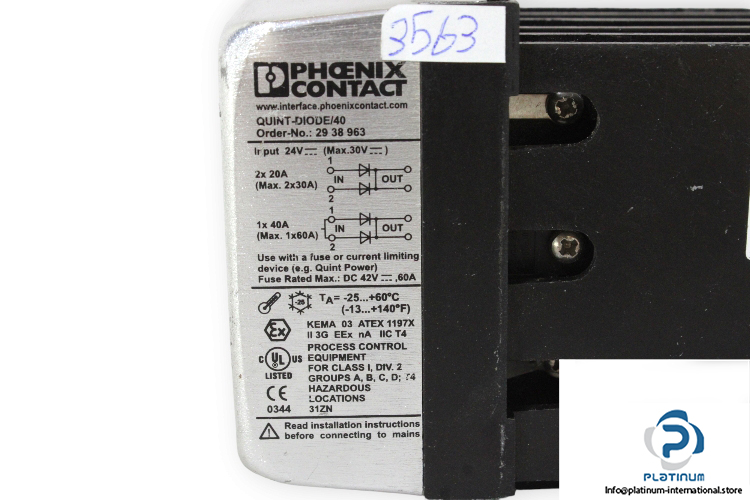

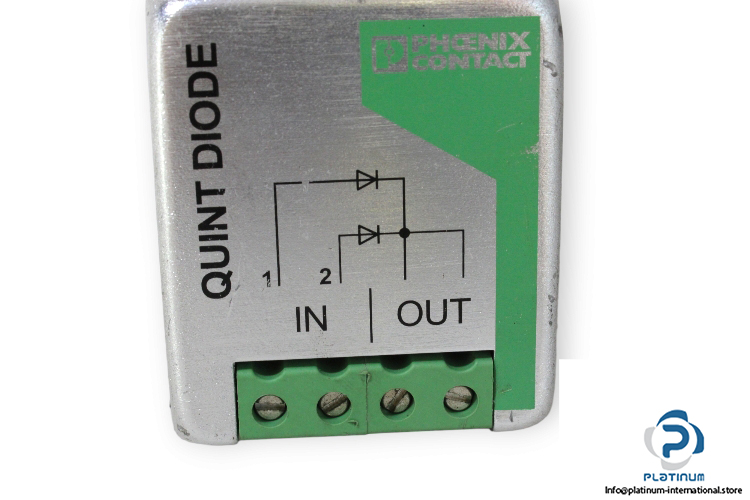

Phoenix Contact QUINT-DIODE/40 Redundancy Module

The Phoenix Contact QUINT-DIODE/40 is a high-performance redundancy module designed for reliable power distribution in industrial automation systems. With a robust housing and advanced electrical features, it ensures continuous system availability and dependable operation.

Manufacturer: Phoenix Contact

Type: Redundancy Module

Model: QUINT-DIODE/40

Part No.: 2938963

Input Voltage	24 V DC
Nominal Output Voltage	24 V DC
Nominal Output Current (IN)	40 A
Insulation Voltage	1 kV
Mounting Position	NS 35 DIN rail according to EN 50 022
Housing Version	AIMg (enclosure), GD-ZnAICu (heatsink)
Protection Class	IP20
Dimensions (W x H x D)	62 x 84 x 102 mm
Ambient Temperature	-25 °C to +70 °C
