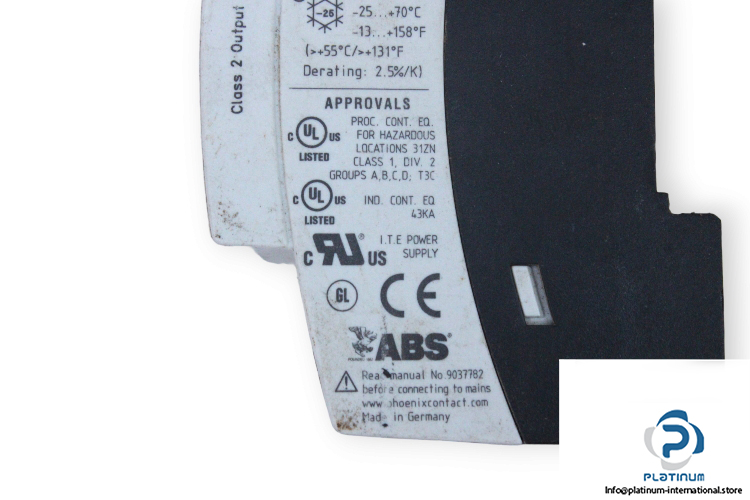

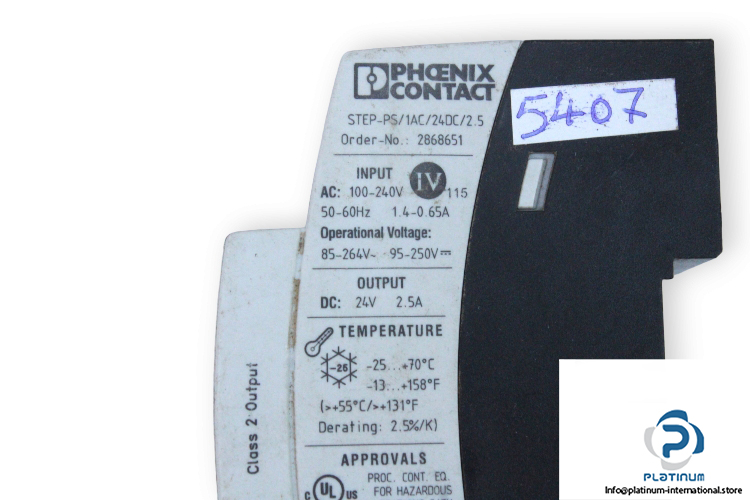

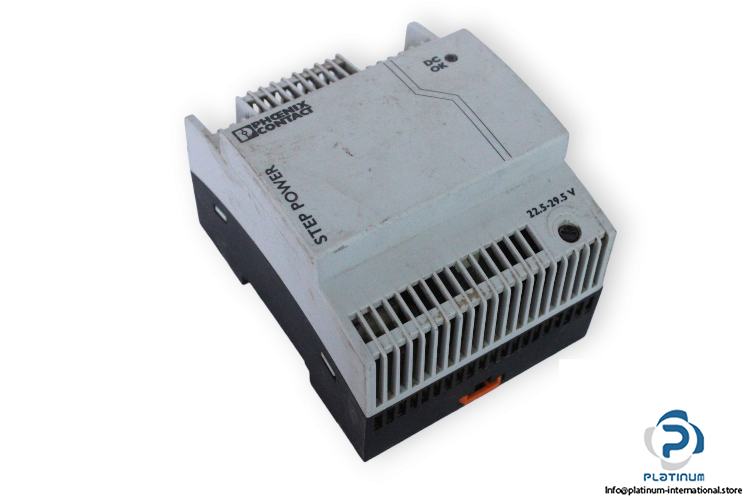

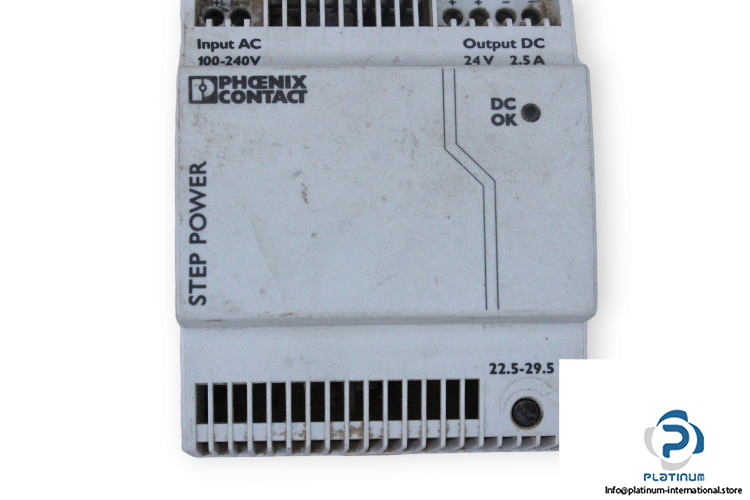

Phoenix Contact STEP-PS/1AC/24DC/2.5 Power Supply
중고
재고 있음1 단위즉시 배송 가능
40,00$
Manufacture:
Phoenix Contact
Type:
Power supply
Model:
STEPPS1AC24DC2.5
Order No.:
2868651
방대한 재고
글로벌 배송
전문 지원
품질 보장
Manufacture: Phoenix Contact
Type: Power supply
Model: STEPPS1AC24DC2.5
Order No.: 2868651
Input:
Voltage: 100 … 240 V AC (85 … 264 V AC), 95 … 250 V DC
Current: 1.4 … 0.65 A
Frequency: 50/60 Hz
Output:
Voltage: 24 V DC (22.5 … 29.5 V DC)
Current: 2.5 A
Rated Power: 60 W
Nominal power consumption: 124.3 VA
Input fuse: 3.15 A
Connection method: Screw connection
Screw thread: M3
Tightening torque: 0.5 … 0.6 Nm
Types of signaling: LED
Degree of pollution: 2
Mounting type: DIN rail mounting
Housing material: Plastic
Degree of protection: IP20
Working Temperature: -25 … 70°C
Dimensions: 72 x 90 x 55 mm
