Pilz Pnoz MM0P 24VDC Safety Relay
중고
재고 있음1 단위즉시 배송 가능
400,00$
안전 릴레이 산업 자동화 환경에서 고급 기계 보호 및 정밀 신호 모니터링을 위해 설계된 컴팩트하고 모듈식 안전 릴레이.
방대한 재고
글로벌 배송
전문 지원
품질 보장

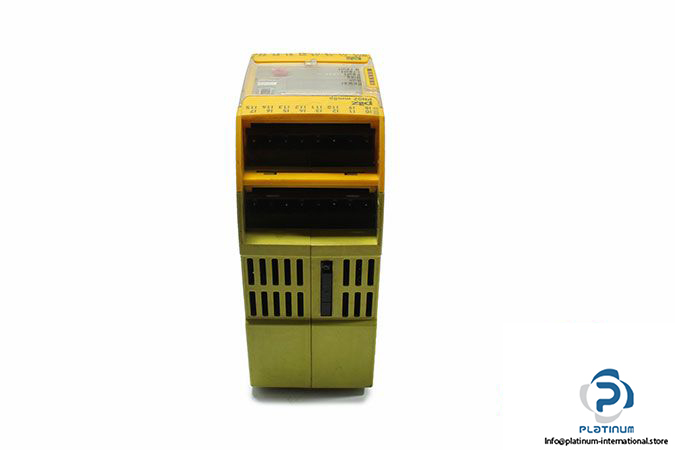

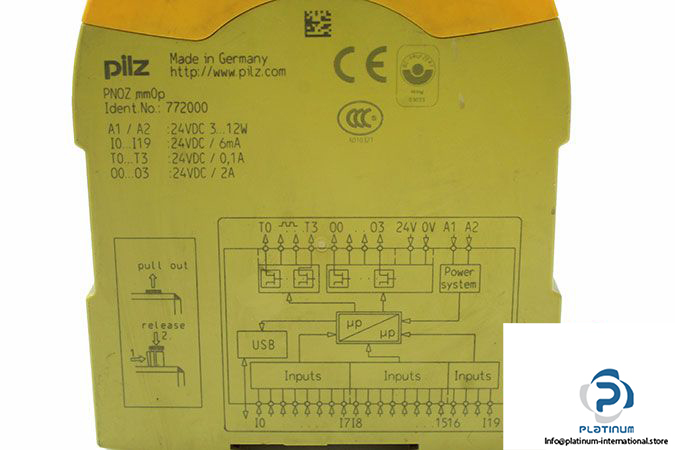

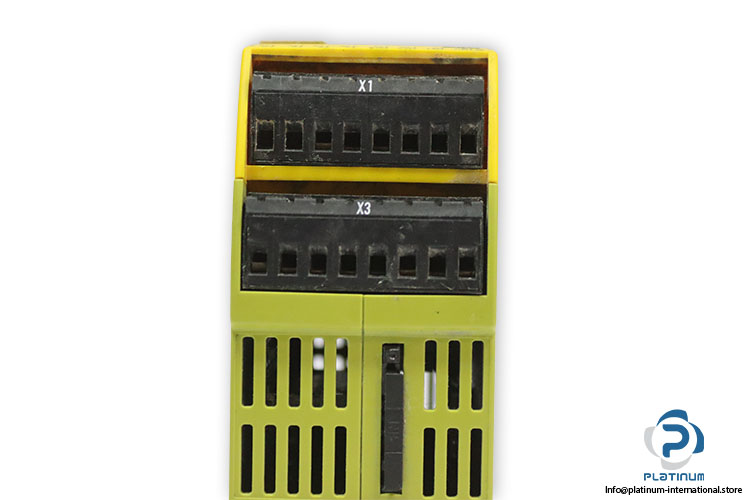

PILZ PNOZ MM0P Safety Relay
A high-performance modular safety relay designed for precise monitoring and safe control of industrial automation systems. The PNOZ MM0P provides reliable protection, flexible configuration, and compatibility with advanced safety architectures, making it essential for modern machine safety applications. Manufacturer: PILZ
Type: Safety Relay
Model: PNOZ MM0P
Ident No.: 772000
| Supply Voltage to System “ Voltage | 24 VDC |
| Supply Voltage to System “ External Power Supply Output | 35 W |
| Supply Voltage to System “ External Power Supply at No Load | 8.0 W |
| Supply Voltage to SC Outputs “ Voltage | 24 VDC |
| Supply Voltage to SC Outputs “ External Power Supply Output | 192 W |
| Input Number | 12 |
| Input Current at Rated Voltage | 5 mA |
| Minimum Pulse Duration | 16 ms |
| Maximum Input Delay | 4 ms |
| Output Number | 4 |
| Output Voltage | 24 VDC |
| Output Current | 2 A |
| Output Power | 48 W |
| Switch-on Delay | 5 s |
| Ambient Temperature | 0 / 60 °C |
| Protection Class (Mounting Area / Housing / Terminals) | IP54 / IP20 |
| Dimensions | 45 x 120 x 100 mm |
