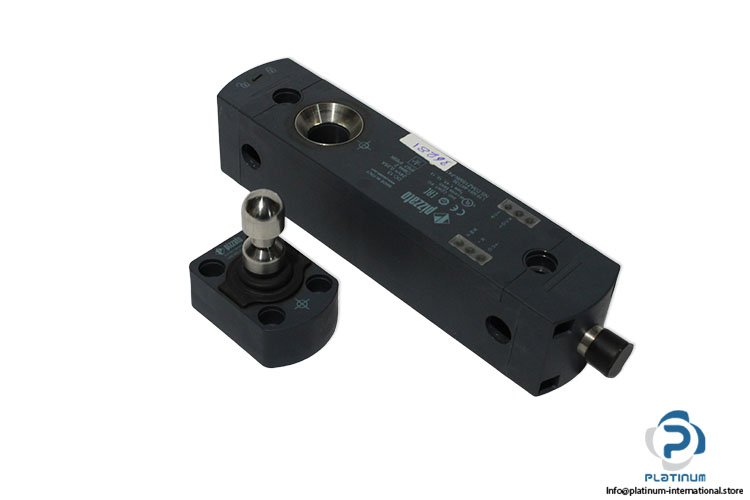

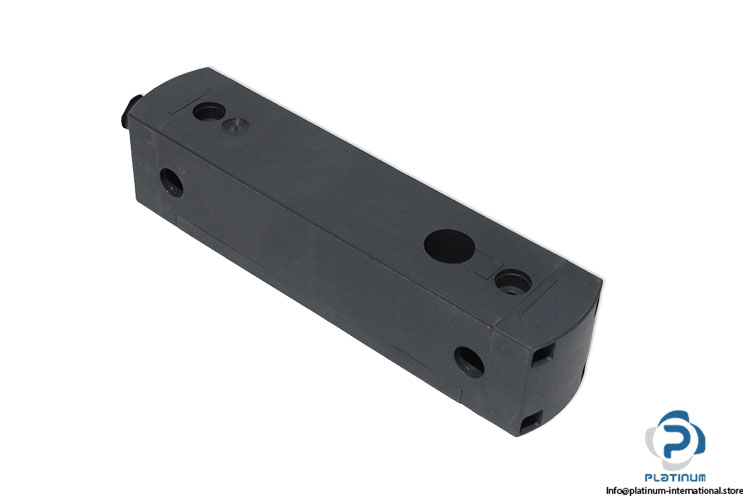

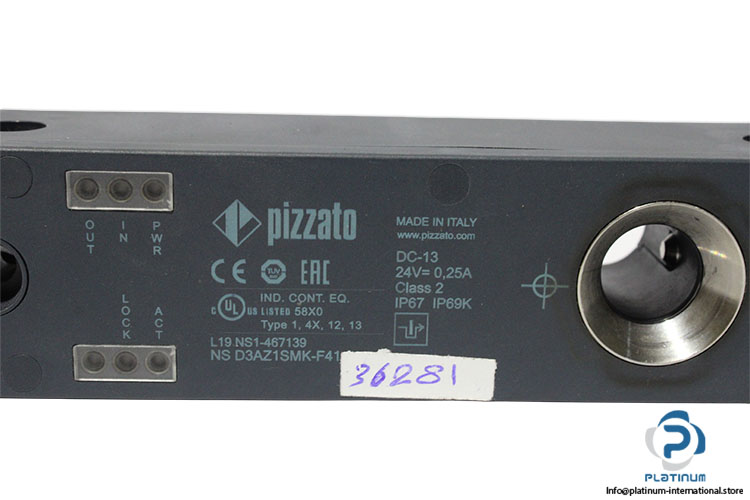

Pizzato NS D3AZ1SMK-F41 Safety Locking Switch
신제품
재고 있음2 단위즉시 배송 가능
299,99$
RFID Safety Locking Switch Pizzato RFID safety locking switch with actuator, 24 V DC supply, M12 12-pole connection, IP67 protection, and technopolymer housing for industrial machine safety applications.
24D3AZ1SMK-F41dcIndustrialIP67LocklockingM12MachineNSNS-F41PizzatoRfidSafetySeriesSwitchTechnopolymerVVN
방대한 재고
글로벌 배송
전문 지원
품질 보장

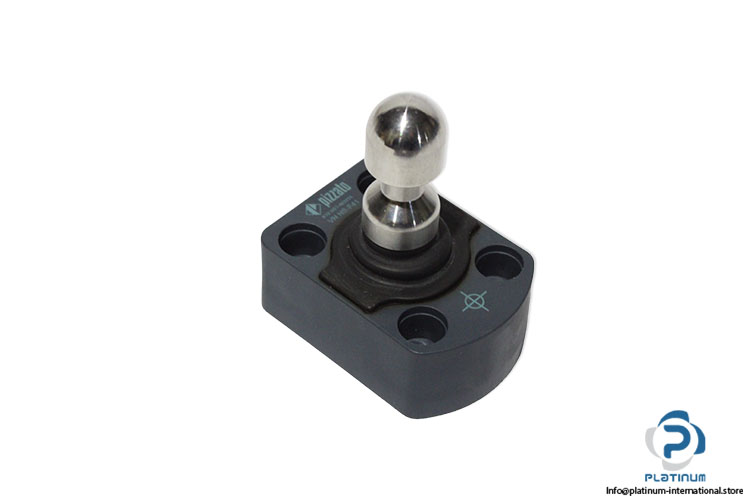

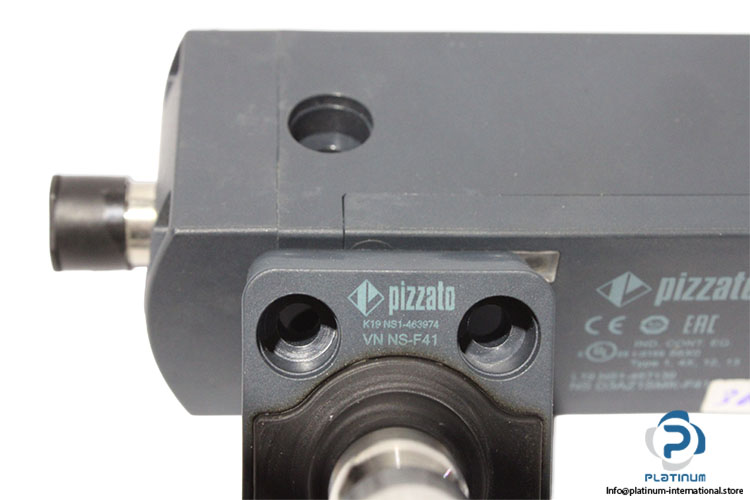

| Actuator Model | VN NS-F41 |
| Series | NS |
| Supply Voltage | 24 V DC |
| Current Consumption | 0,25 A |
| Thermal Current | 10 A |
| Contact | Normally Closed (NC) |
| Safety Inputs | 2 IS1-IS2 |
| Safety Outputs | 2 OS1-OS2 |
| Housing Material | Technopolymer |

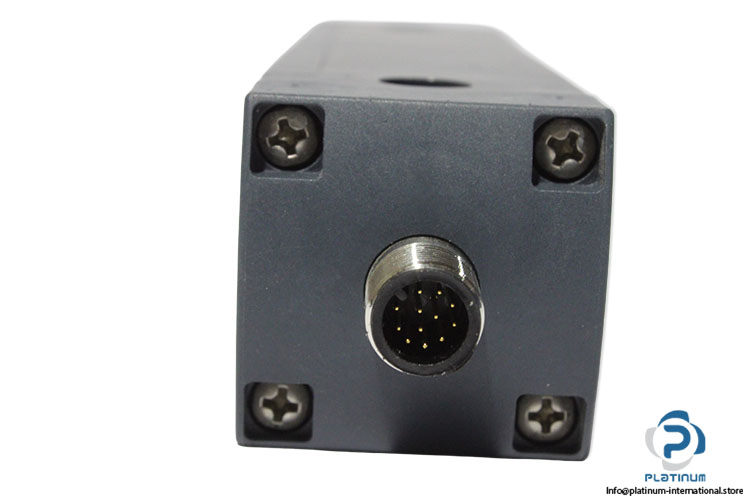

| Connection | M12 Connector, 12-Pole |
| Protection Class | IP67 |
| Ambient Operating Temperature | -20 … 50 °C |
| Dimensions | 178 x 40 x 51 mm |
| Stock Key | JO-004 |
| Condition | New |
| SKU | 1092791 |
| Weight | 0,53 |
