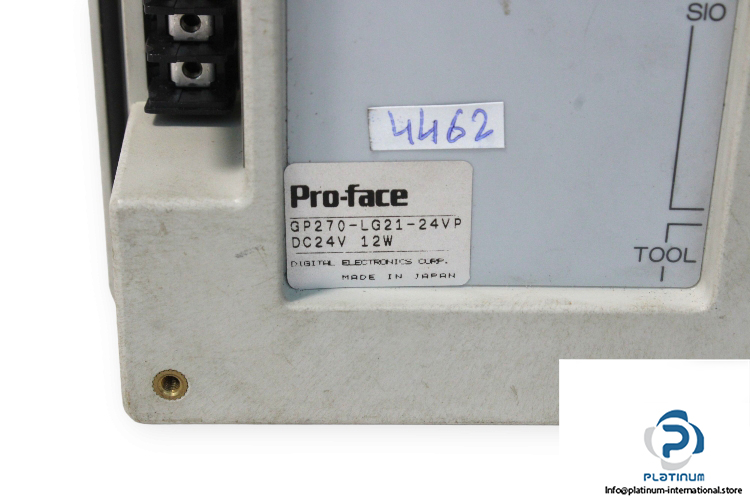

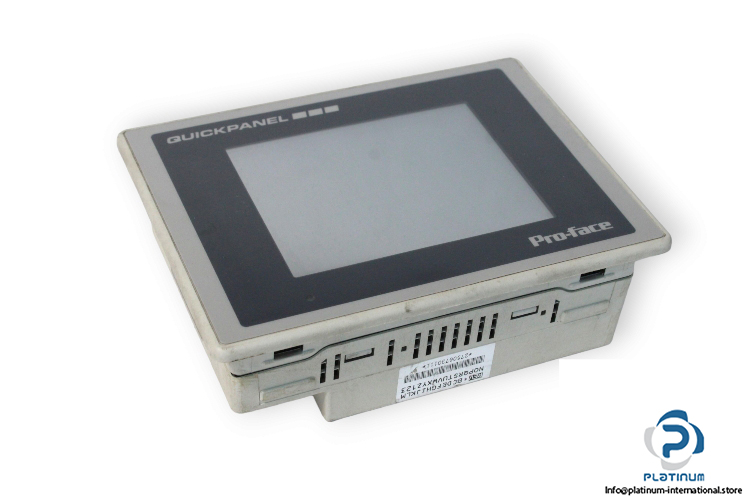

Proface GP270-LG21-24VP Operator Panel
Manufacture: Proface
Type: Operator panel
Model: GP270-LG21-24VP
Part No.: 0680028-01
Input Voltage: 24 V DC
Power Consumption: 12 W
Allowable Voltage Drop: 2 ms
Resolution: 320 × 240 pixels
Attributes: Blink/ Reverse Video
Internal Memory: FLASH EPROM 256 Kbytes
Touch Panel: 16 × 12 keys/ screen (1- or 2-point touch)
Voltage Endurance: 1000 V AC
Insulation Resistance: 20Mohm
Cooling Method: Natural air circulation
Ambient Operating Temperature: 0 … 50°C
Dimensions (WxHxD): 172 x 127 x 58 mm
