AUXILIARY CONTACT SWITCH
Industrial-grade auxiliary contact switch with 1 NC + 1 NO, rated for up to 500 V AC. Ideal for motor starters and control circuits requiring reliable auxiliary signaling.1500VACAuxiliaryBlockCodeCompactContactControlDevIndustrialmotormountNCNOPanelPS11RefStarterSwitchWC1434
방대한 재고
글로벌 배송
전문 지원
품질 보장

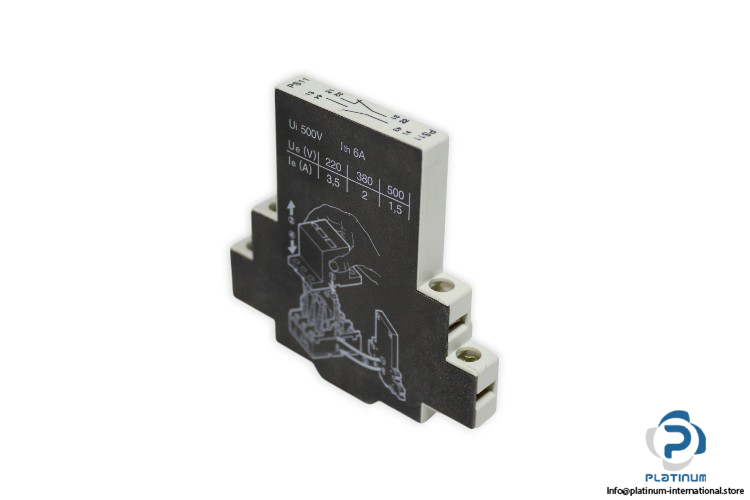

PS11 AUXILIARY CONTACT SWITCH
Compact and reliable auxiliary contact block designed to provide auxiliary signaling and control for motor starters, contactors, and circuit breakers. The PS11 features a 1 NC + 1 NO contact configuration and is built for consistent electrical performance in industrial environments.
Type: Auxiliary Contact Switch
Model: PS11

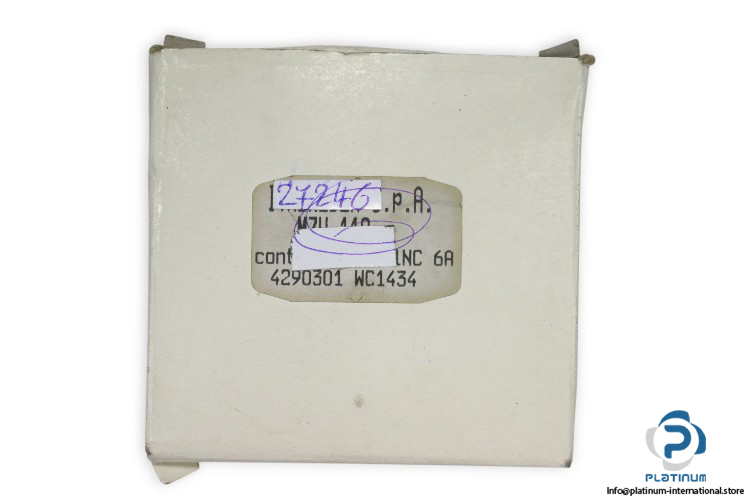

Ref. Code: 4290301 WC1434

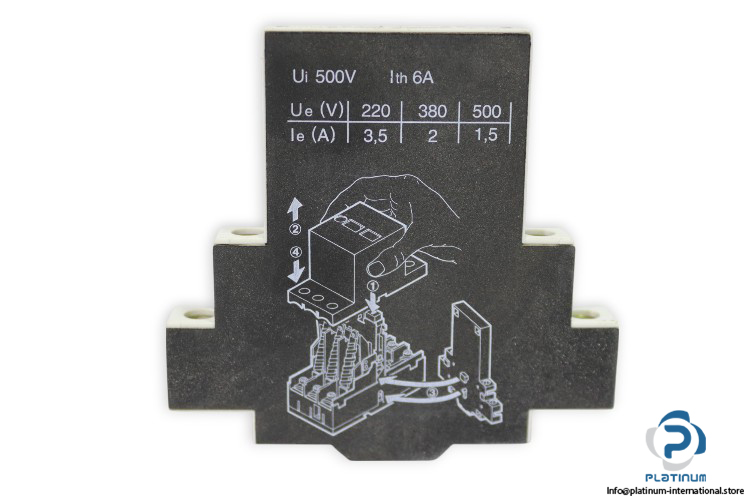

Switching Rating:
3.5 A at 220 V AC
2 A at 380 V AC
1.5 A at 500 V AC

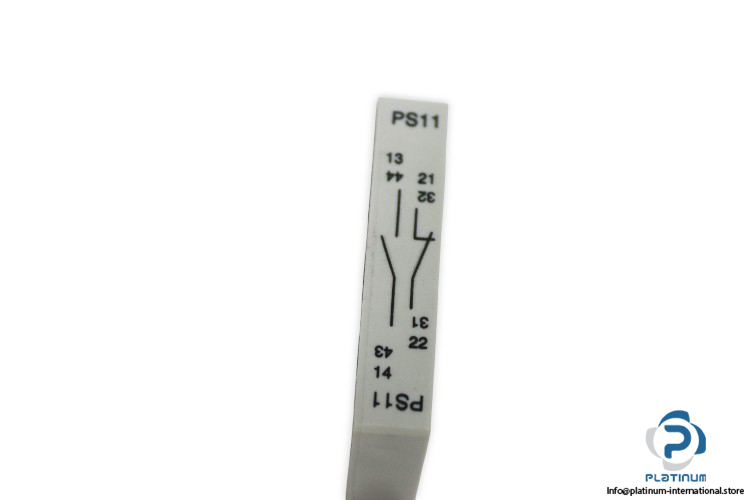

| Contact Configuration | 1 Normally Closed (NC) + 1 Normally Open (NO) |
| Rated Insulation Voltage (Ui) | 500 V AC |
| Thermal Current (Ith) | 6 A |
