Rexroth 1670810000 ISO Cylinder
중고
재고 있음1 단위즉시 배송 가능
ISO Cylinder
REXROTH ISO Cylinder 1670810000 designed for use in pneumatic systems with compressed air. Features 80 mm bore diameter, 100 mm stroke, and a max pressure of 10 bar, ensuring precise control and durability in industrial applications.10016708100003/880AirboreCompressedconnectionCylinderDoubleGIndustrialISOmmOperationPneumaticRexrothShapeSquareStrokeSystems
방대한 재고
글로벌 배송
전문 지원
품질 보장

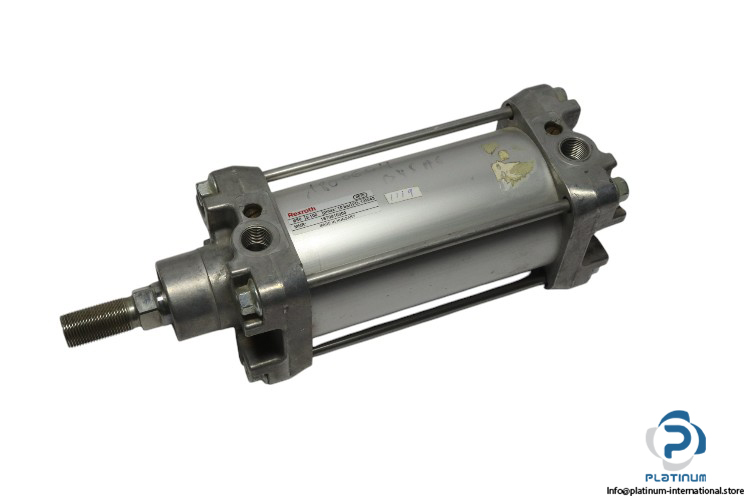

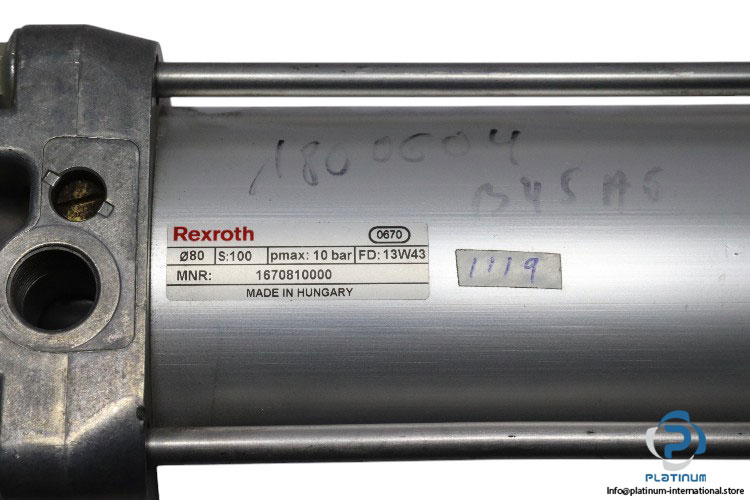

REXROTH ISO Cylinder 1670810000
The REXROTH ISO Cylinder 1670810000 is designed for efficient and reliable operation in pneumatic systems. With a bore diameter of 80 mm and a stroke of 100 mm, this cylinder is ideal for a wide range of industrial applications where precise control and durability are needed.
Manufacturer: REXROTH
Model: 1670810000
Technical Specifications
- Media: Compressed Air
- Bore Diameter: 80 mm
- Stroke: 100 mm
- Bore x Stroke: 80 x 100 mm
- Rod Diameter: 25 mm
- Frame Dimensions: 96 x 260 mm
- Pneumatic Connection: G 3/8
- Pressure Max.: 10 bar
- Operation Mode: Double
- Piston Rod End: Male
- Shape: Square
- Rod Direction: One Side
