Rexroth 1PV2V4-16/50RE01MC63A1 Variable Vane Pump

Name: REXROTH 1PV2V4-16/50RE01MC63A1 VARIABLE VANE PUMP
SKU: 992354
Availability: LimitedAvailability

rexroth-1pv2v4-16_50re01mc63a1-variable-vane-pump-1

rexroth-1pv2v4-16_50re01mc63a1-variable-vane-pump-2

rexroth-1pv2v4-16_50re01mc63a1-variable-vane-pump-3

rexroth-1pv2v4-16_50re01mc63a1-variable-vane-pump-4

중고

재고 있음1 단위즉시 배송 가능

SKU

992354

카테고리

Vane Pumps

상태

중고

50 pump Pumps Series Size V4 Vane Variable

방대한 재고

글로벌 배송

전문 지원

품질 보장

Manufacturer: Rexroth

Type: Variable vane pump

Model: 1PV2V4-16/50RE01MC63A1

Size: 50

Displacement: 55.2 cm³

Direction of Rotation: Clockwise

Shaft Diameter: 38 mm

Input power: 23 KW

Operating pressure: 160 bar

Speed Range: 900 …. 1800 min^-1

Flow Rate at 1450 rpm: 72.5 l/min

Torque: 510 N.m

Viscosity Range: 16 …. 160 mm²/s

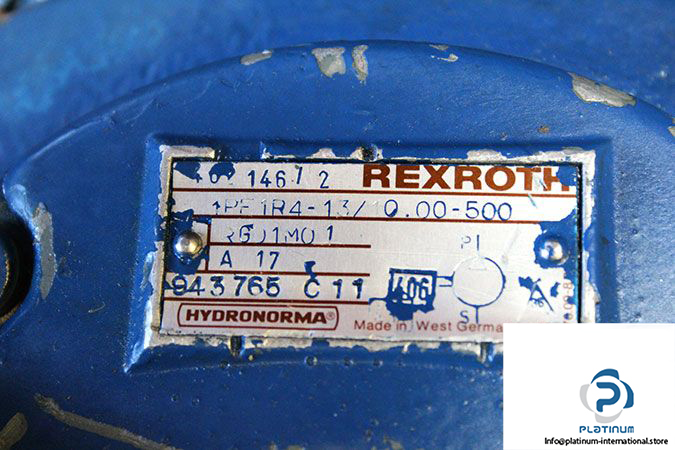

Attachment: REXROTH 1PF1P4-13/10.00-500 RG01M01 FIXED DISPLACEMENT RADIAL PISTON PUMP

Manufacturer: Rexroth

Type: Fixed Displacement Radial Piston Pump

Model: 1PF1P4-13/10.00-500RG01M01

size: 10

Displacement: 9.71 cm³Direction of Rotation: Clockwise

Operating pressure: 500 bar

Speed Range: 1000 … 2000 min^–1No. of Piston: 5Flow Rate at 1450 rpm: 14.1 l/min

Weight: 54.5 Kg
