Hydraulic System Hydraulic Pumps Vane Pumps

Rexroth 1PV2V4-23/80 RA01MC 100A1 Variable Vane Single Pump

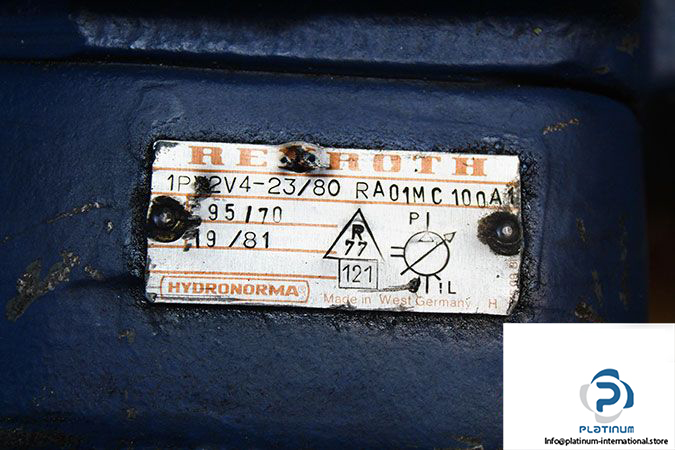

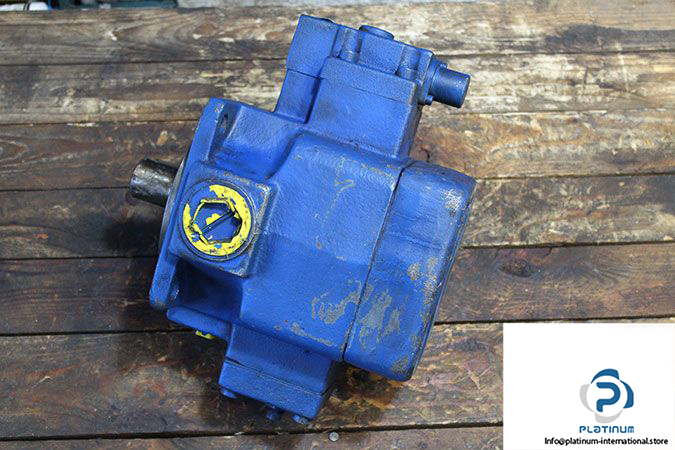

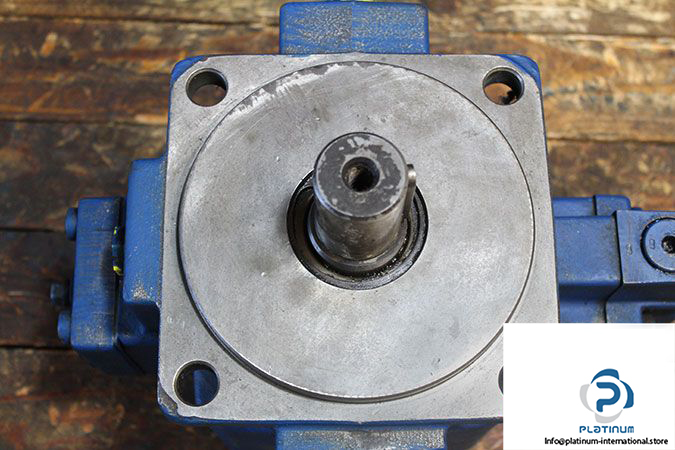

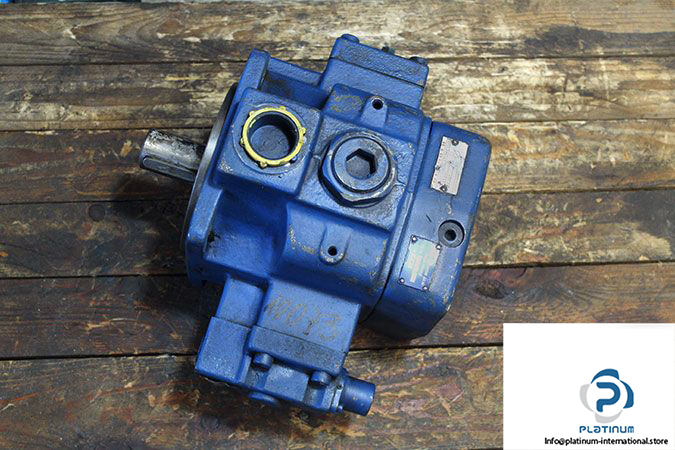

Name: REXROTH 1PV2V4-23/80 RA01MC 100A1 VARIABLE VANE SINGLE PUMP
Brand: REXROTH
SKU: 984701
Availability: LimitedAvailability

rexroth-1pv2v4-23_80-ra01mc-100a1-variable-vane-single-pump-1

rexroth-1pv2v4-23_80-ra01mc-100a1-variable-vane-single-pump-2

rexroth-1pv2v4-23_80-ra01mc-100a1-variable-vane-single-pump-3

중고

재고 있음1 단위즉시 배송 가능

가변 베인 단일 펌프 고성능 Rexroth Hydronorma 펌프, NG80 크기, 82.8 cm³ 배기량, 160 bar 작동 압력, 116 l/min 유량으로 산업용 유압 애플리케이션에 적합합니다.

제조업체

REXROTH

SKU

984701

카테고리

Vane Pumps

상태

중고

160 bar clockwise High Hydraulic hydronorma Industrial ng80 oil Pressure pump Rexroth rotation Single Vane Variable

방대한 재고

글로벌 배송

전문 지원

품질 보장

REXROTH HYDRONORMA 1PV2V42380RA01MC100A1 VARIABLE VANE SINGLE PUMP

The Rexroth Hydronorma 1PV2V4-23/80 RA01MC 100A1 is a high-performance variable vane single pump engineered for industrial hydraulic systems. It delivers precise flow control, high efficiency, and reliable operation in demanding environments.

Manufacturer: REXROTH HYDRONORMA

Type: Variable Vane Single Pump

Model: 1PV2V4-23/80 RA01MC 100A1

Fluid	Oil
Size	NG80
Displacement	82.8 cm³
Direction of Rotation	Clockwise
Shaft Diameter	38 mm
Operating Pressure	160 bar
Speed	900 “ 1800 rpm
Flow Rate at 1450 rpm	116 l/min
Power at 1450 rpm	32 kW
Torque at 100 bar	510 Nm
Viscosity Range	16 “ 160 mm²/s
