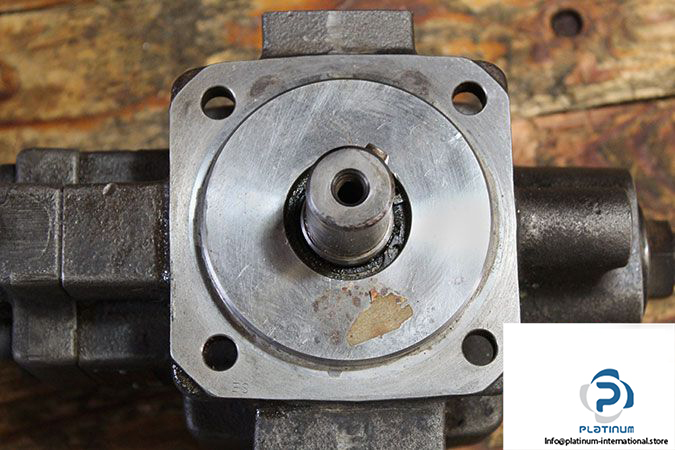

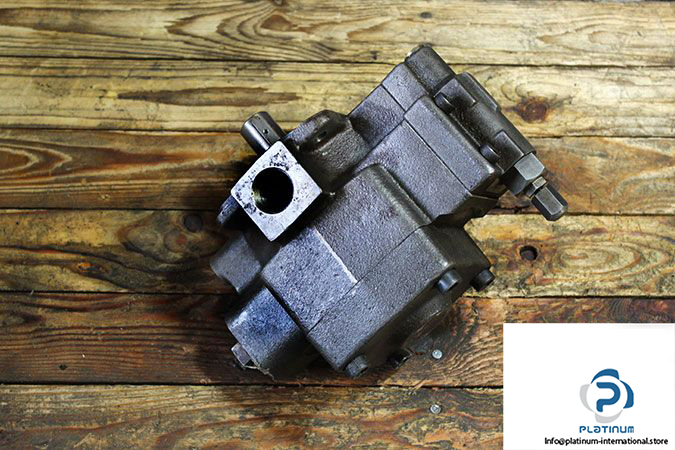

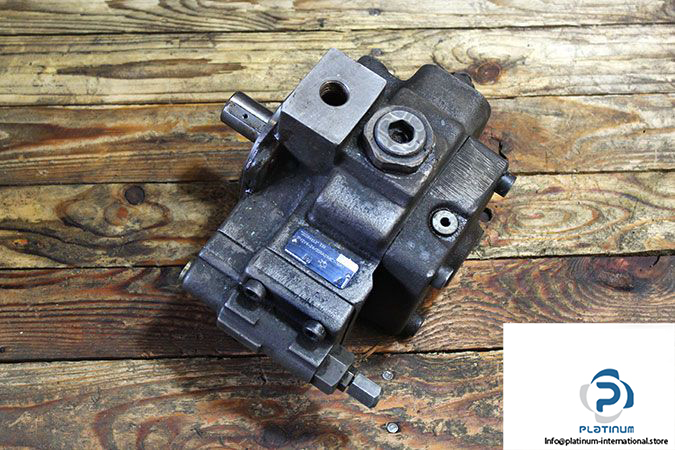

Rexroth 1PV2V4-24/20RA01MC1-16A1 Variable Vane Single Pump
중고
재고 있음1 단위즉시 배송 가능
가변 베인 단일 펌프 Rexroth 유압 베인 펌프 모델 1PV2V4-24/20RA01MC1-16A1, 컴팩트 NG20 설계, 20.7 cm³ 배출량, 160 bar 압력, 29 l/min 유량을 제공하여 효율적인 유압 시스템용.
방대한 재고
글로벌 배송
전문 지원
품질 보장
REXROTH 1PV2V424/20RA01MC116A1 VARIABLE VANE SINGLE PUMP
The Rexroth 1PV2V4-24/20RA01MC1-16A1 is a high-performance variable vane single pump designed for hydraulic applications requiring consistent efficiency and durability. Built for precision and reliability, it is suitable for systems handling oil-based fluids with stable performance under demanding conditions.
Manufacturer: Rexroth
Type: Variable Vane Single Pump

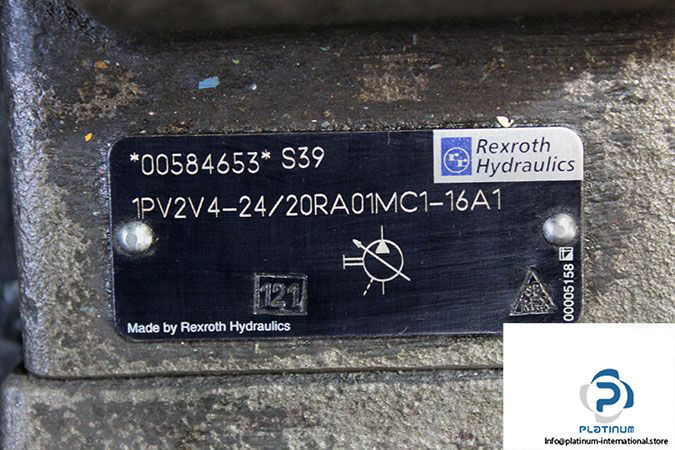

Model: 1PV2V4-24/20RA01MC1-16A1
MNR: R900584653
| Fluid | Oil |
| Size | NG20 |
| Displacement | 20.7 cm³ |
| Direction of Rotation | Clockwise |
| Shaft Diameter | 28 mm |
| Operating Pressure | 160 bar |
| Speed Range | 900 / 1800 rpm |
| Flow Rate at 1450 rpm | 29 l/min |
| Power at 1450 rpm | 8.5 kW |
| Torque at 100 bar | 228 Nm |
| Viscosity Range | 16 / 160 mm²/s |
