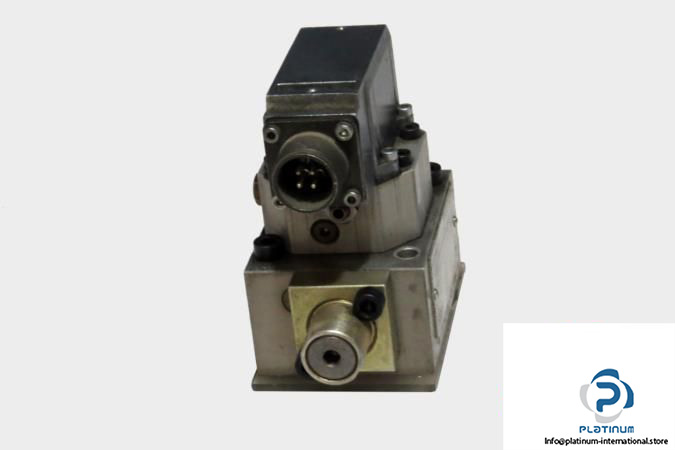

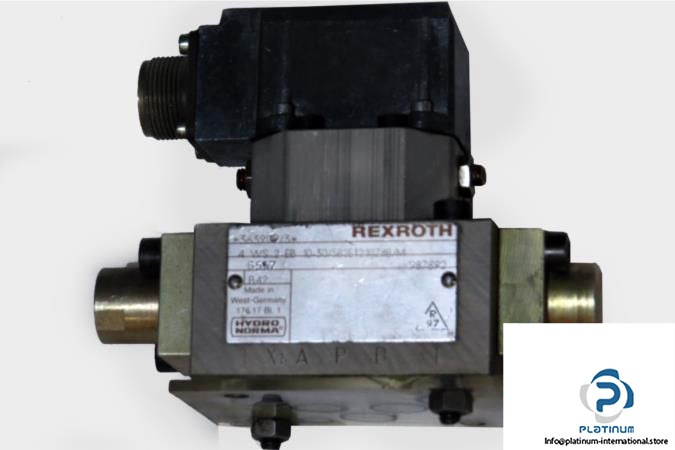

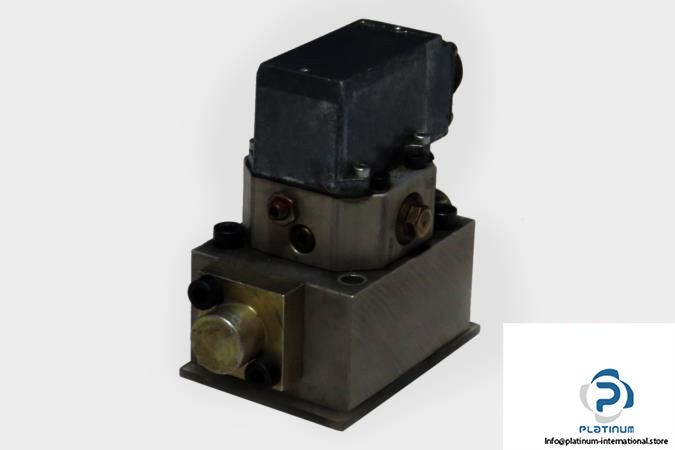

Rexroth 4WS 2 EB 10-30/5B2ET210Z8B/M Servo Directional Control Valve
Manufacturer : REXROTH
Type : Rexroth 4/3 servo directional control valve with mechanical position feedback

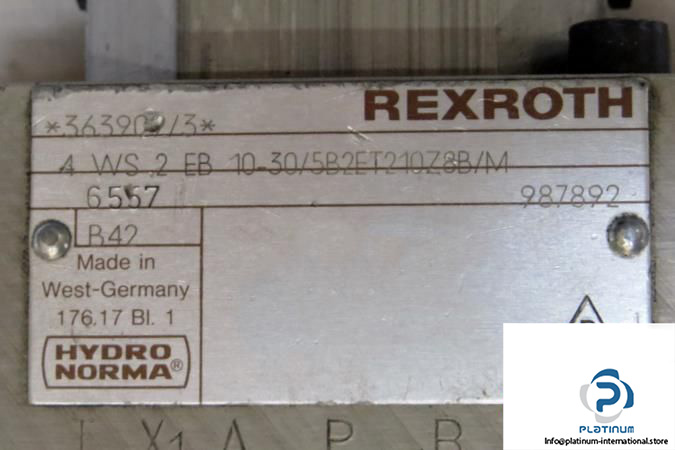

Model : 4WS 2 EB 10-30/5B2ET210Z8B/M
Standard nominal flow rate [l/min] : 5
Ambient temperature [°C] : –30 … +70
Operating pressure Ports P, A, B [bar] : 210
Return pressure Port T[bar] : Pressure peaks < 100, static <10
Nominal current per coil [mA] : 30
Resistance per coil [Ω] : 85
Condition: Used
