Hydraulic System Hydraulic Valves Pressure Control Valves

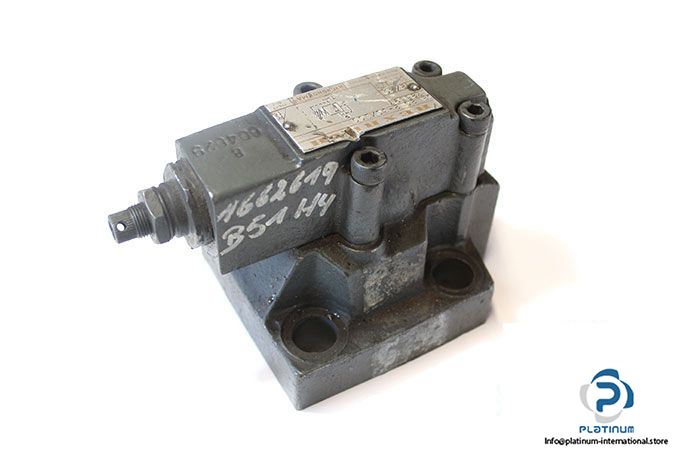

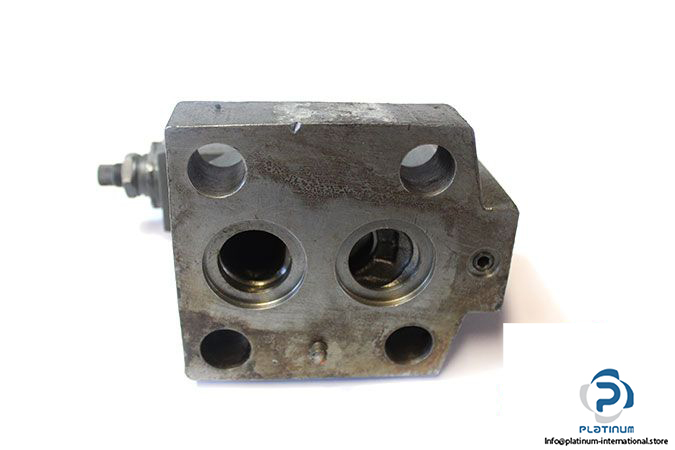

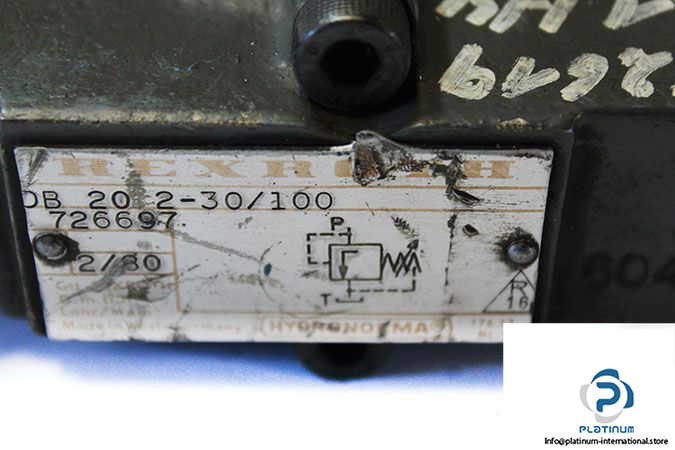

Rexroth DB 20 2-30/100 Pilot Operated Pressure Relief Valve

Name: REXROTH DB 20 2-30/100 PILOT OPERATED PRESSURE RELIEF VALVE
Brand: REXROTH
SKU: 986192
Availability: LimitedAvailability

rexroth-DB-20-2-30_100-pressure-relief-valve-pilot-operated

rexroth-db-20-2-30_100-pressure-relief-valve-pilot-operated-3

rexroth-db-20-2-30_100-pressure-relief-valve-pilot-operated-1

중고

재고 있음1 단위즉시 배송 가능

파일럿 작동 압력 완화 밸브 고성능 Rexroth Hydronorma DB 20 2-30/100 밸브로 100바 설정, NG20 크기 및 정밀한 유압 압력 제어를 위한 서브 플레이트 연결이 포함되어 있습니다.

제조업체

REXROTH

SKU

986192

카테고리

Pressure Control Valves

상태

중고

100 bar Component flow High Hydraulic hydronorma Industrial ng20 operated Overpressure Pilot Plate Pressure Protection Relief Rexroth sub System Valve

방대한 재고

글로벌 배송

전문 지원

품질 보장

REXROTH HYDRONORMA DB20230100 PILOT OPERATED PRESSURE RELIEF VALVE

The Rexroth Hydronorma DB 20 2-30/100 is a high-performance pilot operated pressure relief valve engineered for precision control in hydraulic systems. Designed for demanding industrial environments, it ensures reliable overpressure protection while maintaining stable operation under high flow conditions.

Manufacturer: REXROTH HYDRONORMA

Type: Pilot Operated Pressure Relief Valve

Model: DB 20 2-30/100

Part No.: 726697

Fluid	Oil
Size	NG20
Adjustment Element	Sleeve with Hexagon and Protective Cap
Pressure Setting	100 bar
Maximum Operating Pressure at Ports P, X	350 bar
Maximum Operating Pressure at Port T	315 bar
Maximum Backpressure at Port Y	315 bar
Maximum Flow Rate	500 l/min
Viscosity Range	10 / 800 mm²/s
Connection	Sub-plate
Ambient Temperature Range	-30 / 80 °C
