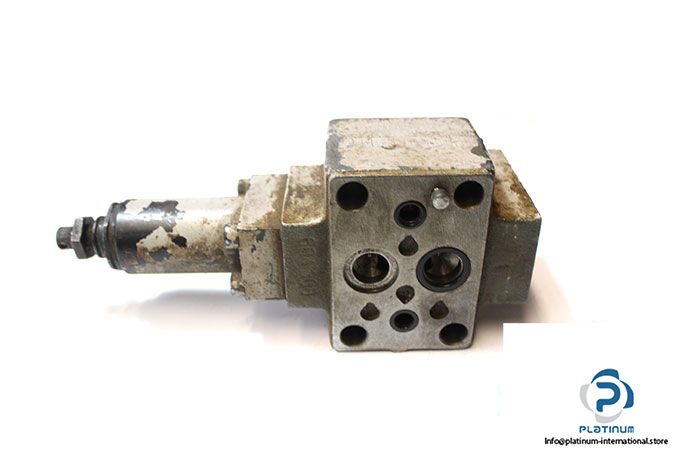

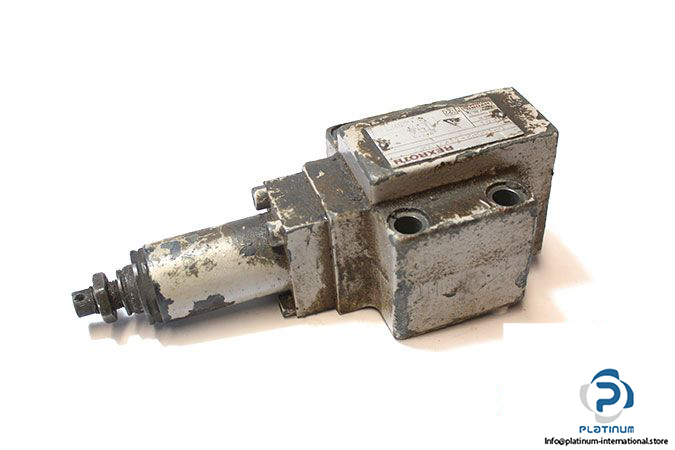

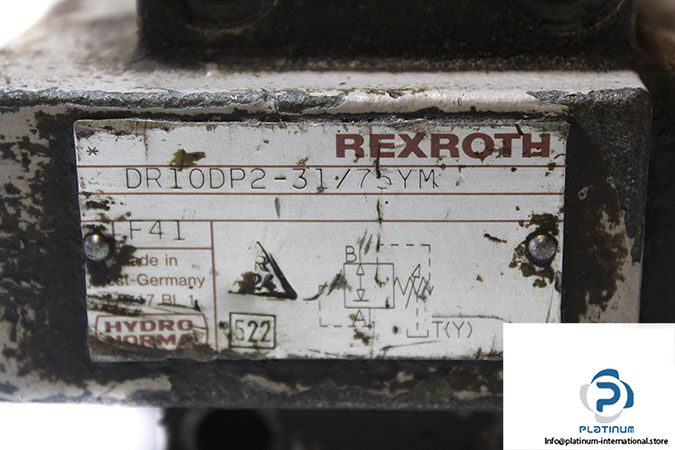

Rexroth DR10DP2-31/75YM Pilot Operated Pressure Reducing Valve
REXROTH HYDRONORMA DR10DP23175YM PILOT OPERATED PRESSURE REDUCING VALVE
The Rexroth Hydronorma DR10DP2-31/75YM is a high-performance pilot operated pressure reducing valve designed for precise control in hydraulic systems. Built for reliability and efficiency, it operates with oil as the working fluid and offers a broad operating pressure range, making it suitable for demanding industrial applications.
Manufacturer: REXROTH HYDRONORMA
Type: Pilot Operated Pressure Reducing Valve
Model: DR10DP2-31/75YM
| Fluid | Oil |
| Size | NG10 |
| Adjustment Element | Sleeve with Hexagon and Protective Cap |
| Pressure Setting | 75 bar |
| Nominal Pressure | 350 bar |
| Maximum Operating Pressure at Port B | 350 bar |
| Operating Pressure Range at Port A | 10 to 350 bar |
| Maximum Back Pressure at Port Y | 350 bar |
| Maximum Flow Rate | 150 l/min |
| Ambient Temperature Range | -30 / 50 °C |
| Viscosity Range | 10 / 800 mm²/s |
| Connection | Sub-plate |
