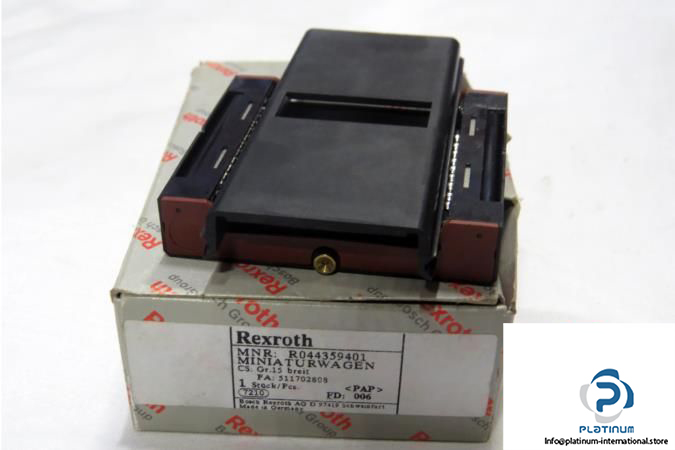

Rexroth R044359401 Mini Runner Block

Manufacturer: REXROTH
Type: Mini Runner Block
MNR: R044359401

Size: 15 mm
Format: WNS – Wide, Normal, Standard Height
Material: martensitic steel
Dynamic Load Capacity C: 5285 N
Static Load Capacity C₀ : 8610 N
Dynamic Torsional Moment Load Capacity M_t:  107 Nm
Mt0: 174 Nm
Dynamic longitudinal moment load capacity ML: 30 Nm
Static longitudinal moment load capacity ML0: 49 Nm
Accuracy Class: N – normal
Dimensions
Width (A): 60 mm
Length (B): 55.5 mm
H: 16 mm
H₁: 12 mm
Admissible Operating Temperature: -10 °C … +80 °C
