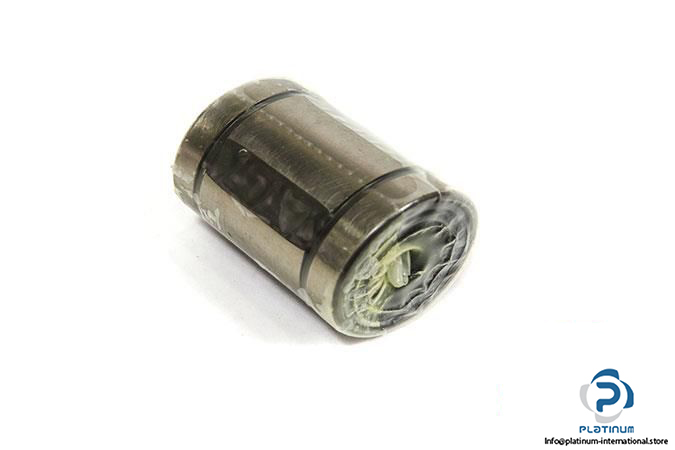

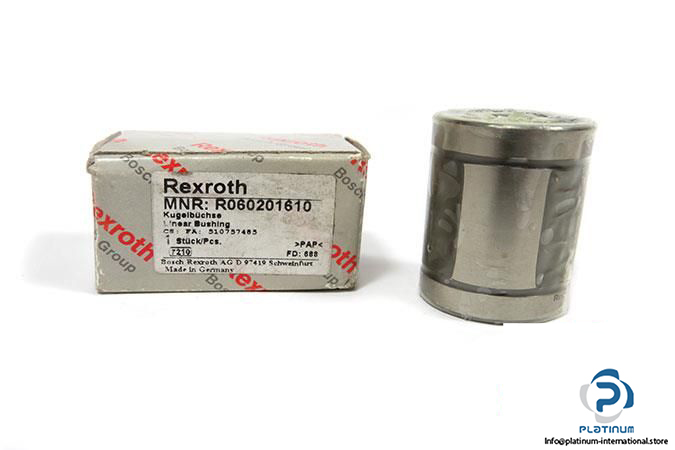

Rexroth R060201610 Standard Linear Bushing

Manufacturer: REXROTH
Type: Standard Linear Bushing
MNR: R0602 016 10

Format of linear bushings: Closed
Dimensions:
Shaft diameter d0: 16 mm
Rows of Balls: 4
Maximum Acceleration Travel amax: 100 m/s2
Max. Permissible Speed v_max: 2.5 m/s
Breakaway force: 9 N
Dynamic Load rating:
C_min: 580 N
C_max: 670 N
Static Load rating:
C_0min: 440 N
C_0max: 620 N
Dimensions:
D: 26 mm
C: 36 mm
C1: 24.6 mm
C2: 1.3 mm
D1: 24.9 mm
Seals: With two integrated wiper seals
Permissible Ambient Temperature: -10 … +80 °C
