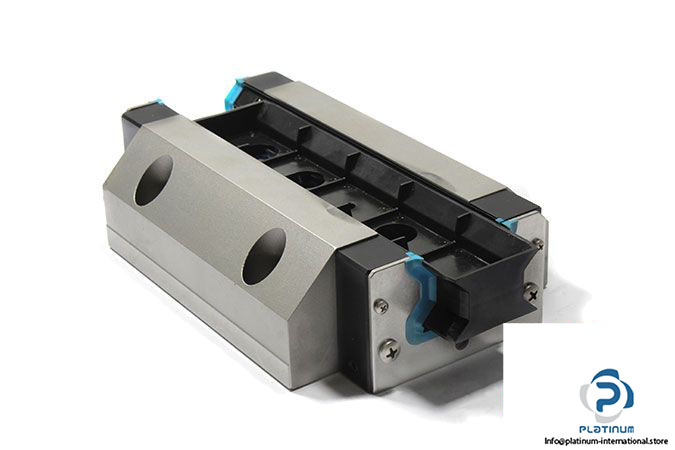

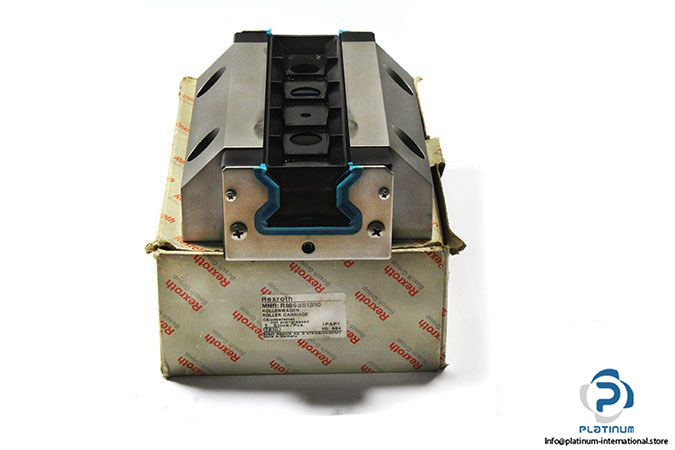

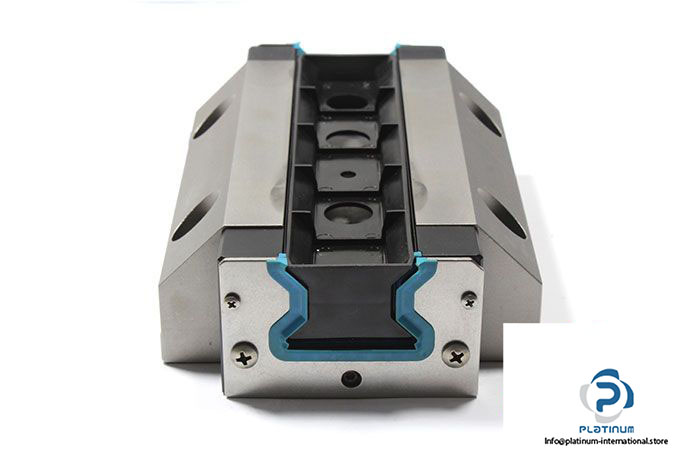

Rexroth R185351310 Roller Runner Block FLS

Manufacturer: Bosch Rexroth

Type: Roller Runner Block FLS

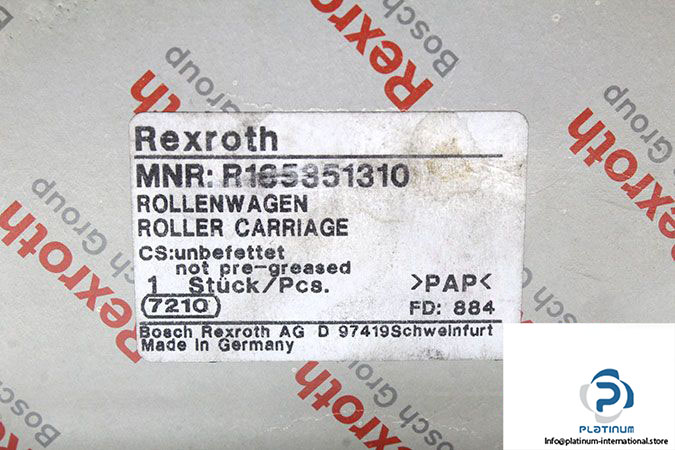

MNR: R185351310

Size: 55 mm

Mechanical Format: RWA

Design: FLS – Flange, Long, Standard

Format: CS – Carbon Steel

Maximum Acceleration Travel a_max: 150 m/s²

Maximum Permissible Speed v_max: 4 m/s

Dynamic Load Capacity C: 174000 N

Static Load Capacity C₀ : 374900 N

Dynamic Torsional Moment Load Capacity M_t:  5100 Nm

Dynamic Longitudinal Moment Load Capacity M_L: 4420 Nm

Accuracy Class: H

Preload Class: C1 – Low

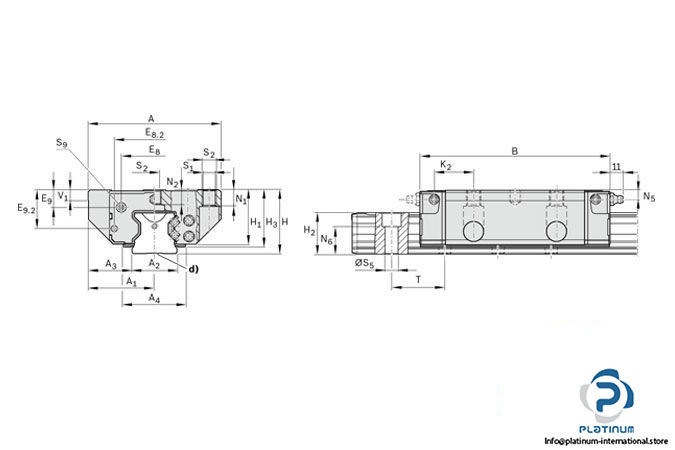

Dimensions

Width ( A ): 140 mm

Length ( B ): 209.6 mm

Height ( H₁ ): 58 mm

Admissible Operating Temperature: -10… +80 °C

Weight: 7.30 kg
