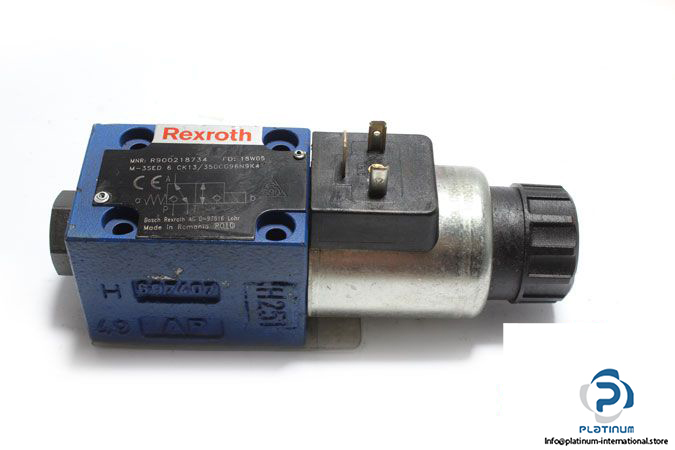

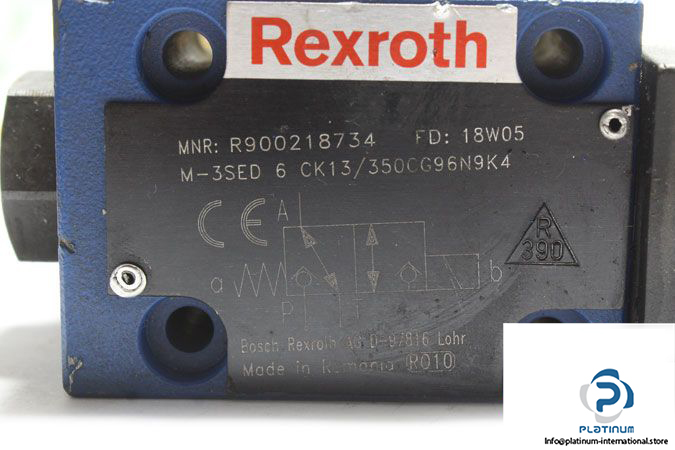

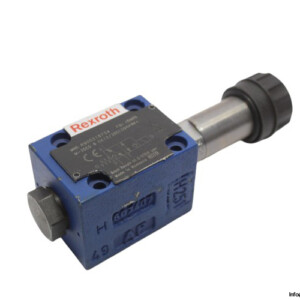

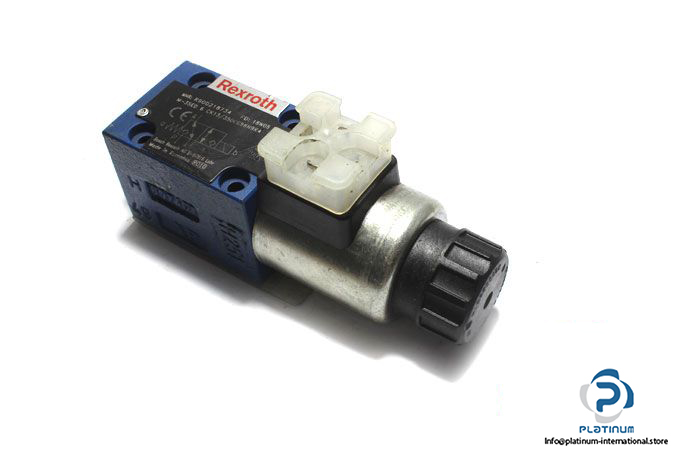

Rexroth R900218734 Directional Control Valve
중고
재고 있음2 단위즉시 배송 가능
199,99$
솔레노이드 작동 방향 제어 밸브 Rexroth M-3SED 6 CK13/350CG96N9K4는 유압 흐름 조절을 위해 설계된 고성능 솔레노이드 작동 방향 제어 밸브입니다. 정격 크기 NG 6, 작동 압력 350bar, 유량 25 l/min으로 산업 응용 분야에서 효율적이고 신뢰할 수 있는 작동을 보장합니다.
25350680VActuatedbarcoilControldcDirectionalElectricallyflowHydHydraulicIndustriall/minNGR9001175644R900218734RateRexrothsolenoidsub-plateValve
방대한 재고
글로벌 배송
전문 지원
품질 보장
Rexroth M-3SED 6 CK13/350CG96N9K4 Solenoid Actuated Directional Control Valve
The Rexroth M-3SED 6 CK13/350CG96N9K4 is a high-performance solenoid actuated directional control valve designed for precision hydraulic systems. With a nominal size of NG 6, it operates electrically to regulate hydraulic flow, ensuring optimal performance in industrial and automation applications. Built for durability, this valve offers a maximum working pressure of 350 bar and a flow rate of 25 l/min.
- Manufacturer: REXROTH
- Type: Solenoid Actuated Directional Control Valve
- Model: M-3SED 6 CK13/350CG96N9K4
- MNR: R900218734
Technical Specifications
- Nominal Size: NG 6
- Type of Actuation: Electrically
- Max. Working Pressure (Port P, A, B): 350 bar
- Max. Flow Rate: 25 l/min
- Hydraulic Connection: Sub-Plate
- Fluid Temperature Range: -30 / +80 °C

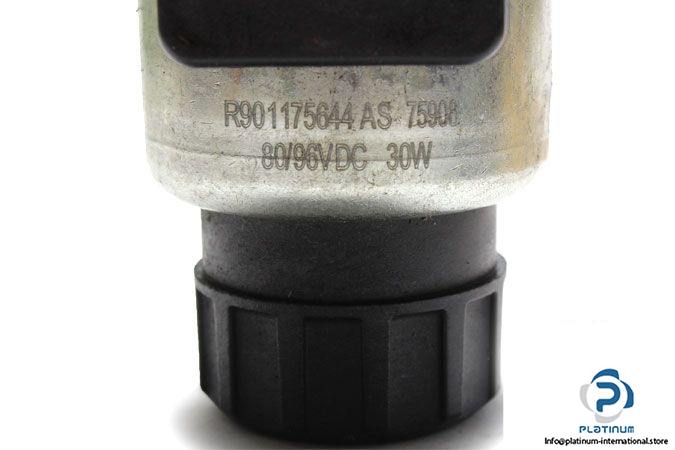

Solenoid Coil Attachment
- Manufacturer: REXROTH
- Type: Solenoid Coil
- MNR: R9001175644
- Supply Voltage Per Coil: 80/96 V DC
- Power Rating Per Coil: 30 W
