Rexroth PV7-17/25-30RE01MC0-16 Variable Vane Pump Pilot Operated
신제품
재고 있음1 단위즉시 배송 가능
1 500,00$
베인 펌프 Bosch Rexroth PV7-17/25-30RE01MC0-16 베인 펌프는 가변 배출량 설계, 30 cm³ 크기 및 160 bar 최대 압력을 특징으로 하여 유압 응용 분야에서 정밀성과 효율성을 제공합니다.
방대한 재고
글로벌 배송
전문 지원
품질 보장

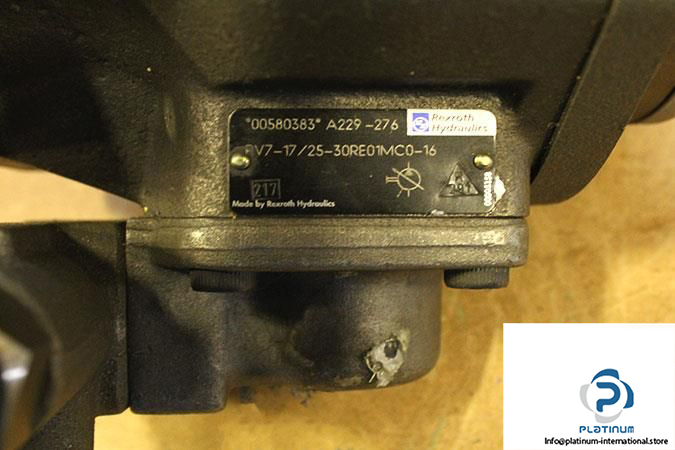

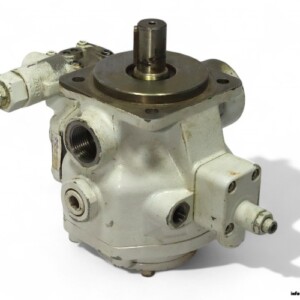

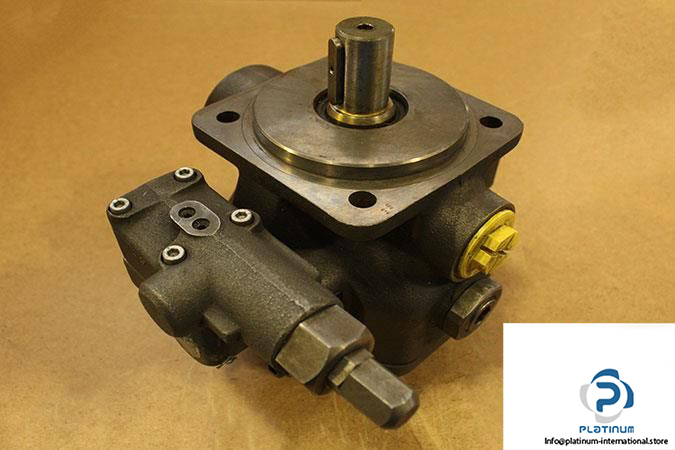

Bosch Rexroth PV7-17/25-30RE01MC0-16 Vane Pump
The Bosch Rexroth PV7-17/25-30RE01MC0-16 Vane Pump is a high-performance variable displacement pump designed for efficient hydraulic operations. With a compact size, high operating pressure, and reliable sealing, this pump ensures optimal performance in demanding industrial applications.
Manufacturer: Bosch Rexroth
Type: Vane Pump
Model: PV7-17/25-30RE01MC0-16
MRN: R900580383
This vane pump offers precise control, high efficiency, and durable construction, making it an ideal choice for various industrial hydraulic systems.
| Displacement Type | Variable |
| Size | 30 cm³ |
| Operating Pressure (Max) | 160 bar |
| Max Flow | 43.5 l/min |
| Direction of Rotation | Clockwise rotation |
| Shaft End | Cylindrical diameter 25 mm with fitting key, ISO 3019-2 |
| Mounting Flange | 4-hole mounting flange 100B4HW according to ISO 3019-2 |
| Hydraulic Fluid | HLP, HLPD, HVLP, HVLPD |
| Seals | NBR |
