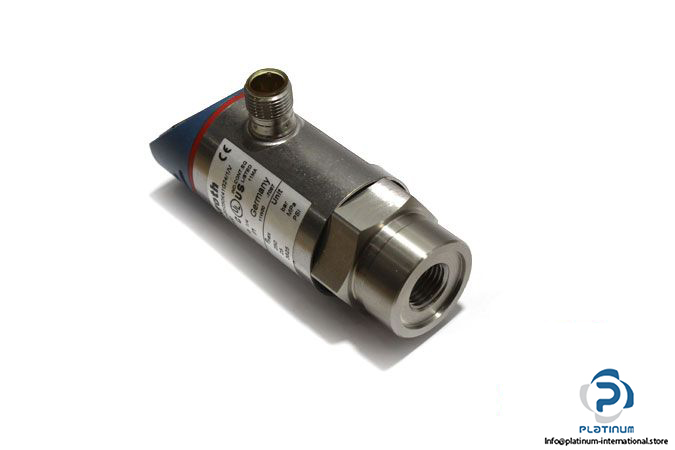

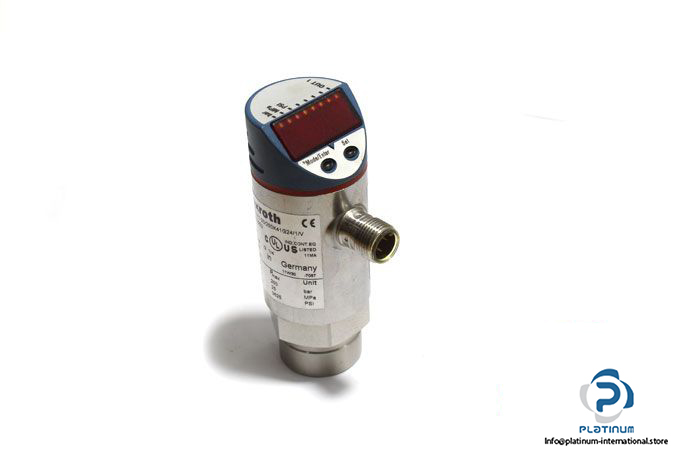

Rexroth R9011022922 Electronic Pressure Switch With TWO Switching Outputs

Name: REXROTH R9011022922 ELECTRONIC PRESSURE SWITCH WITH TWO SWITCHING OUTPUTS
Brand: REXROTH
SKU: 981656
Availability: LimitedAvailability

rexroth-r9011022922-electronic-pressure-switch-with-two-switching-outputs-2

rexroth-r9011022922-electronic-pressure-switch-with-two-switching-outputs-3

rexroth-r9011022922-electronic-pressure-switch-with-two-switching-outputs-4

rexroth-r9011022922-electronic-pressure-switch-with-two-switching-outputs-5

rexroth-r9011022922-electronic-pressure-switch-with-two-switching-outputs-6

신제품

재고 있음1 단위즉시 배송 가능

Rexroth 전자 압력 스위치, 이중 출력 (NO + NC), 0-250 bar 범위, 4-20 mA 신호, 정확한 산업 모니터링을 위한 나사형 G1/4 연결.

제조업체

REXROTH

SKU

981656

카테고리

Pressure Switches

상태

신제품

4-20mA Connector Control Dual Electronic G1/4 Hydraulic Industrial M12 monitoring Output Pneumatic Pressure Rexroth Sensor Switch

방대한 재고

글로벌 배송

전문 지원

품질 보장

REXROTH HEDE10A120250K41G241V ELECTRONIC PRESSURE SWITCH

The Rexroth HEDE10A1-20/250K41G24/1/V is a precision electronic pressure switch engineered for industrial systems requiring accurate pressure monitoring and dual switching outputs. With its durable build and reliable performance, it is ideal for hydraulic and pneumatic applications.

Manufacturer: REXROTH

Type: Electronic Pressure Switch With Two Switching Outputs

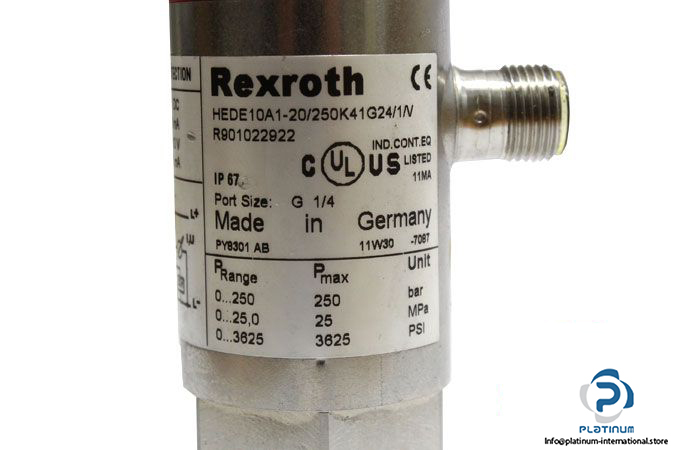

Model: HEDE10A1-20/250K41G24/1/V

MNR: R9011022922

Pressure Measuring Range	0 / 250 bar
Switching Contact	1 Normally Open (NO) + 1 Normally Closed (NC)
Contact Voltage	18 / 36 V DC
Output Signal	4 / 20 mA
Pneumatic Connection	G1/4 Female, Threaded
Electrical Connection	M12 Connector, 4-pin
Fluid Temperature Range	-25 / 80 °C
