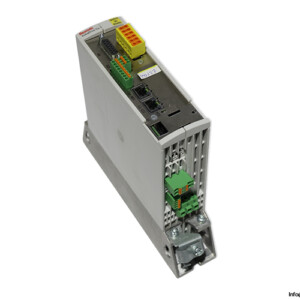

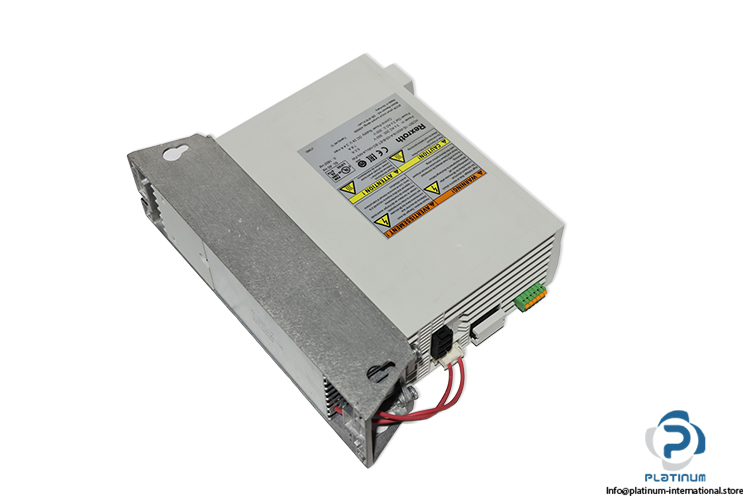

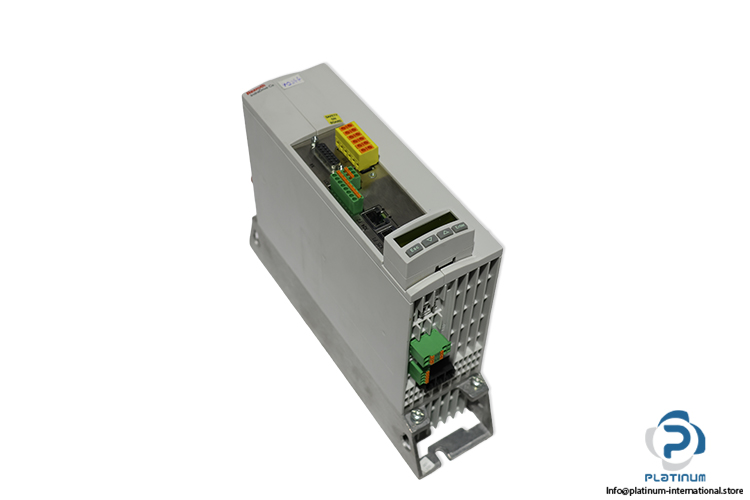

Rexroth R911331608 Servo Drive With Control PANEL(FD20W04)
신제품
재고 있음8 단위즉시 배송 가능

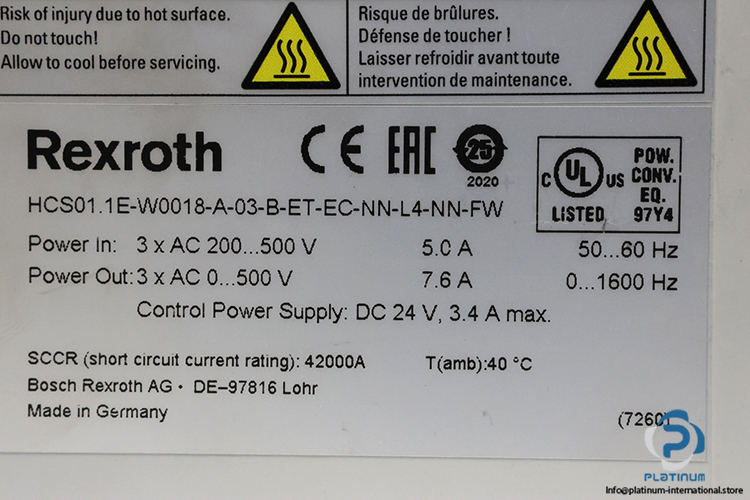

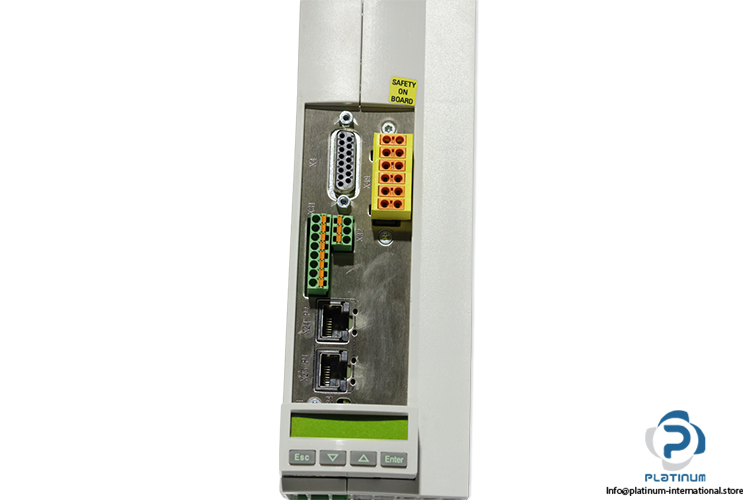

Servo Drive with Control Panel REXROTH HCS01.1E-W0018-A-03-B-ET-EC-NN-L4-NN-FW servo drive with control panel for industrial motion control and automation applications.
방대한 재고
글로벌 배송
전문 지원
품질 보장

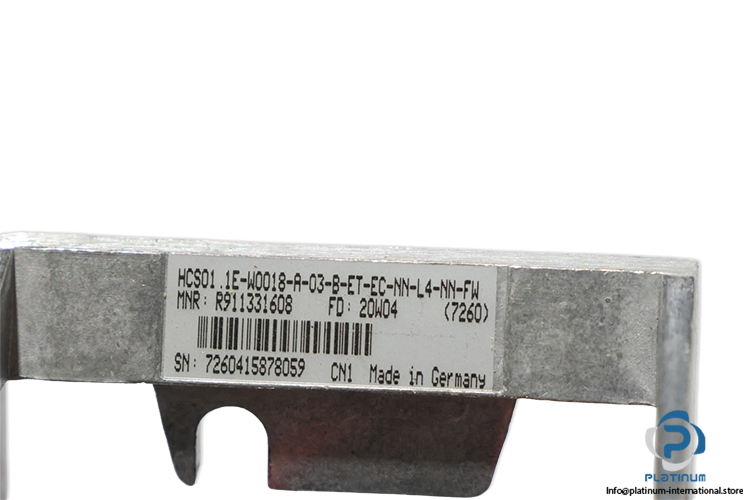

| MNR | R911331608 |
| FD | 20W04 |
| SN | 7260415878059 |

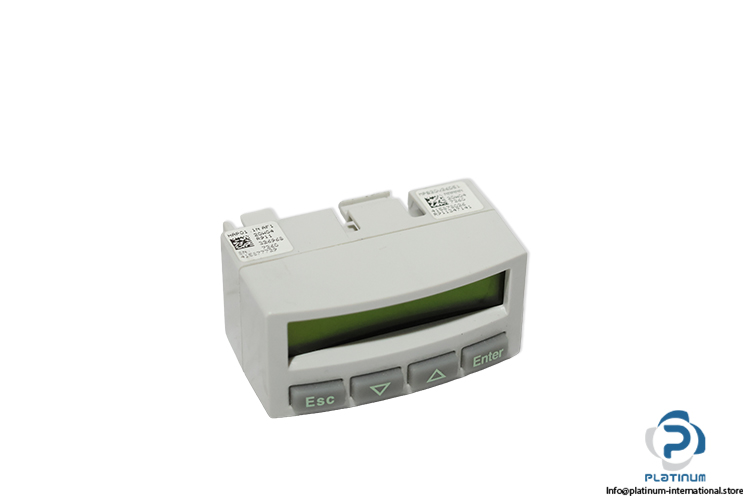

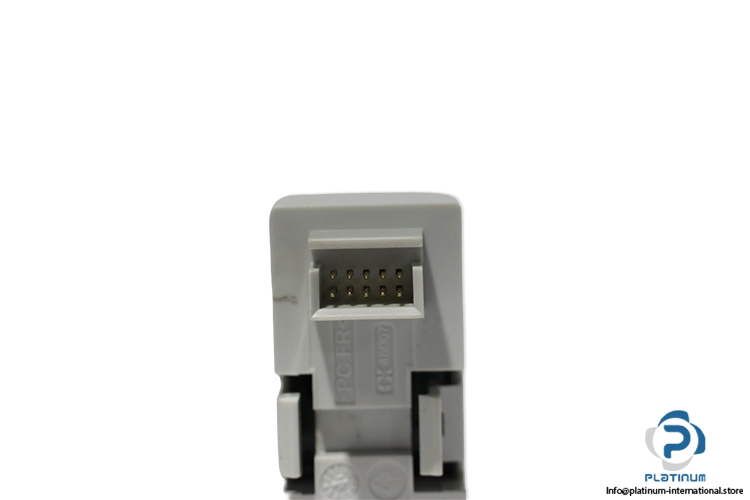

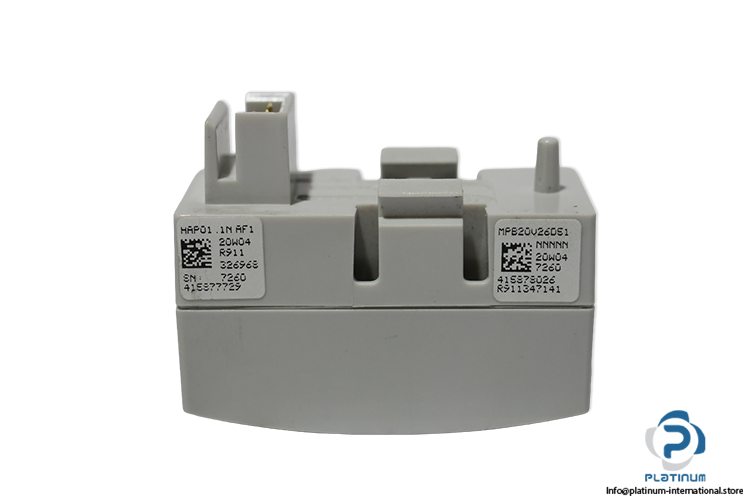

| Control Panel No. | HAP01.1N AF1 / R911 326968 / 415877729/ MPB17V26051/ 415878026/ R911347141 |

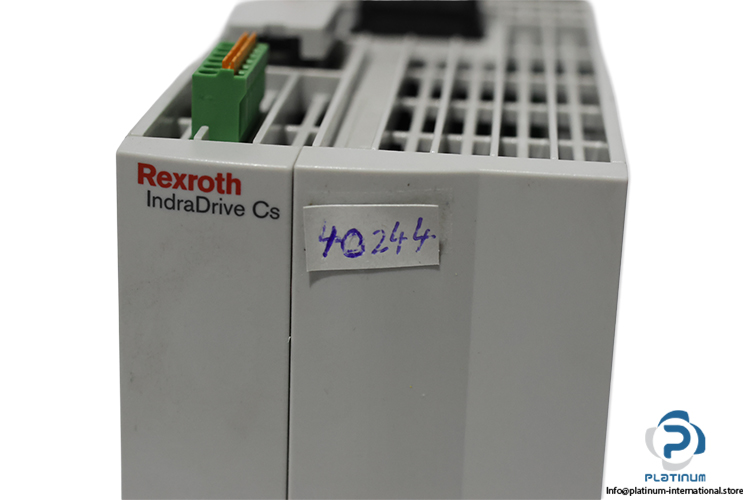

| Series | IndraDrive Cs |
| Input Voltage | 200-500 V AC/3-phase |
| Input frequency | 50/60 Hz |
| Input Current | 5 A |
| Control voltage | 24 V DC |
| Control current | max. 3.4 A |
| Output Voltage | 0-500 V AC/3-phase |
| Output frequency | 0-1600 Hz |
| Output Current | 7.6 A |
| Short Circuit Current | 42000 A |
| Compliance | cULus,CE Certified |
| Interface encoder | Multi-encoder interface |
| Safety function | Safe Torque Off (STO) and Safe Brake Control (SBC) |
| Communication | MultiEthernet |
| Cooling type | internal air cooling |
| International protection code | IP20 |
| Dimensions | 70 x 220 x 268 mm |
| Stock key | CON003 |
| Condition | New |
| SKU | 1101439 |
| Weight | 2 |
