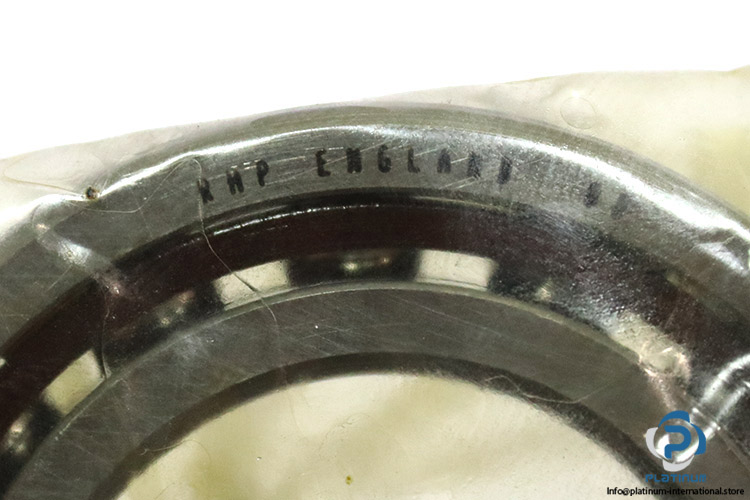

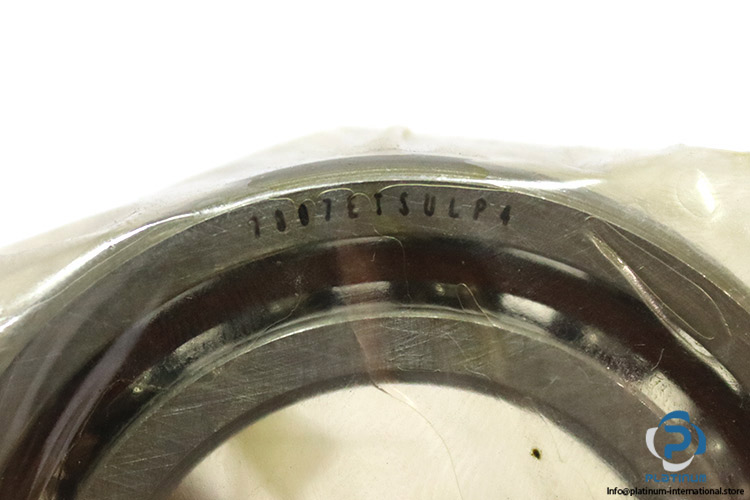

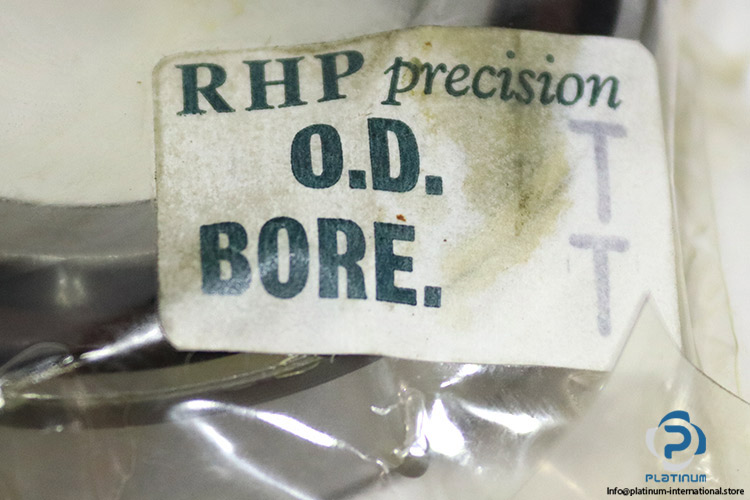

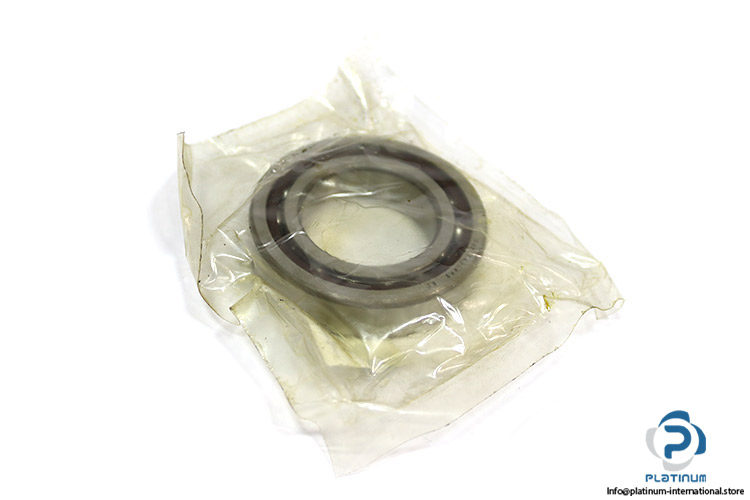

RHP 7007 ETSULP4 Angular Contact Ball Bearing
RHP 7007 ETSULP4 Angular Contact Ball Bearing
The RHP 7007 ETSULP4 is a super precision angular contact ball bearing designed for high-speed and high-accuracy industrial applications. It offers stable performance, controlled preload, and reliable load capacity.
Manufacturer: RHP
Type: Angular Contact Ball Bearing
Model: 7007 ETSULP4 (CTSULP4)
Basic load ratings:
Limiting Speed:
Suffix Information:
| Bore Diameter | 35 mm |
| Outside Diameter | 62 mm |
| Width | 14 mm |
| Contact Angle | 15° |
| Cage Material | T, Phenolic Cage |
| Dynamic Load Rating (Cr) | 19,100 N |
| Static Load Rating (C0r) | 13,700 N |
| Oil Lubrication | 37,600 rpm |
| Grease Lubrication | 23,200 rpm |
| SU | Single universal mounting |
| L | Light preload |
| P4 | Super precision rating |
