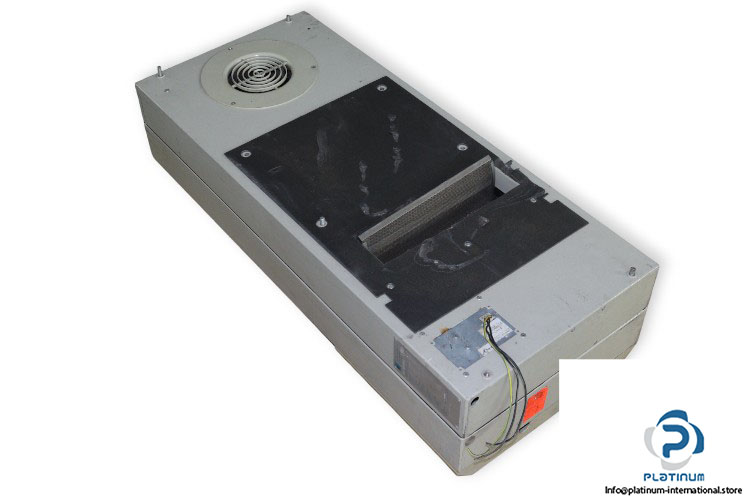

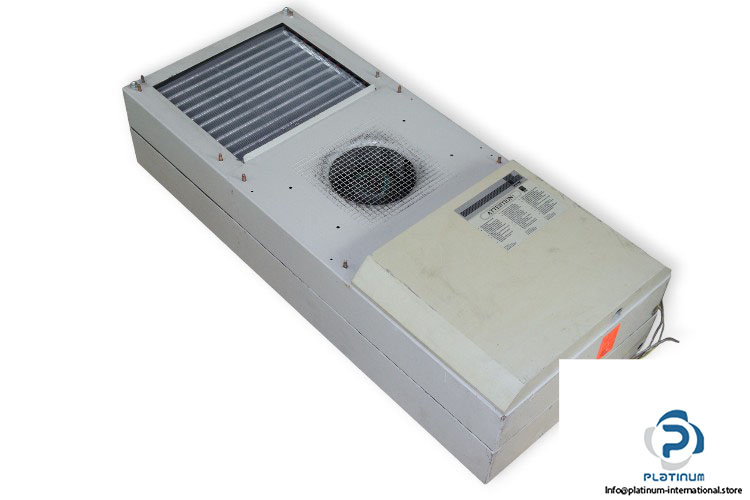

Rittal SK 3293100 Enclosure Cooling Unit
Manufacture: Rittal
Type: Enclosure Cooling Unit
Model: SK3293100
Series: SK
Voltage: 230 V-AC
Frequency: 50/60 Hz
Rated current max.:
At 50 Hz: 3.1 A
At 60 Hz: 3.6 A
Start-up current max.:
At 50 Hz: 8.5 A
At 60 Hz: 10 A
Nominal refrigeration capacity: L35 L35 (450/500 W), L35 L50 (500/580 W), L35 L35 (825/960 W), L35 L50 (680/720 W)
Noise level: 62 dB(A)
Pre-fuse T: 6 A
Temperature range: 20 … 55°C
Protection degree: External circuit IP 34, Internal circuit IP 54
Dimensions: 400 x 950 x 230 mm
