Ritz KSO 63 Current Transformer
재고 있음1 단위즉시 배송 가능
Ritz 전류 변압기 KSO63, 100 A 1차 전류, 5 A 2차 전류, 5 VA 관련 부하. 하우징 IP50 및 단자 IP20 보호 등급으로 신뢰성 있는 성능.
방대한 재고
글로벌 배송
전문 지원
품질 보장

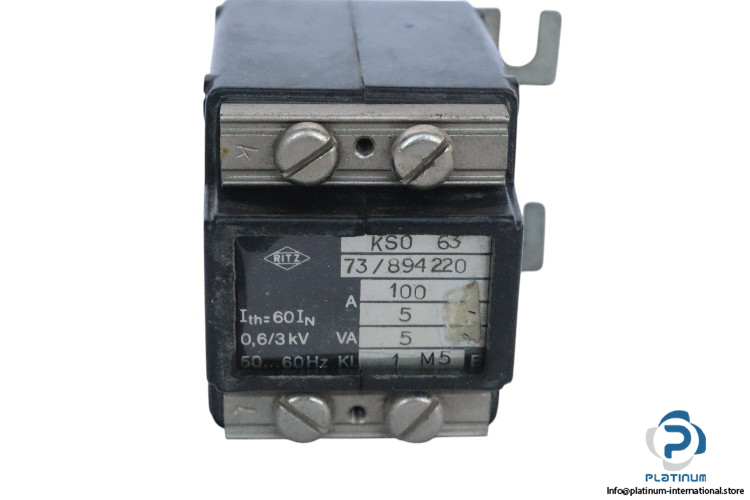

Ritz Current Transformer KSO63
Ritz Current Transformer KSO63 is designed for precise current measurement in industrial applications. This transformer provides reliable performance and is built to handle demanding environments. Below are the key technical specifications:
- Manufacturer: Ritz
- Type: Current Transformer
- Model: KSO63
- Part No.: 73/894220
Technical Data:
- Primary Current: 100 A
- Secondary Current: 5 A
- Related Load: 5 VA
- Thermal Current (Ith): 60 x Nominal Current
- Test Voltage: 0.6/3 kV
- Ambient Temperature: -5 to +40°C
- Protection:
- Housing: IP50
- Terminals: IP20
- Secondary Terminals: Plus-minus screws M5 (MA=3.5 Nm)
