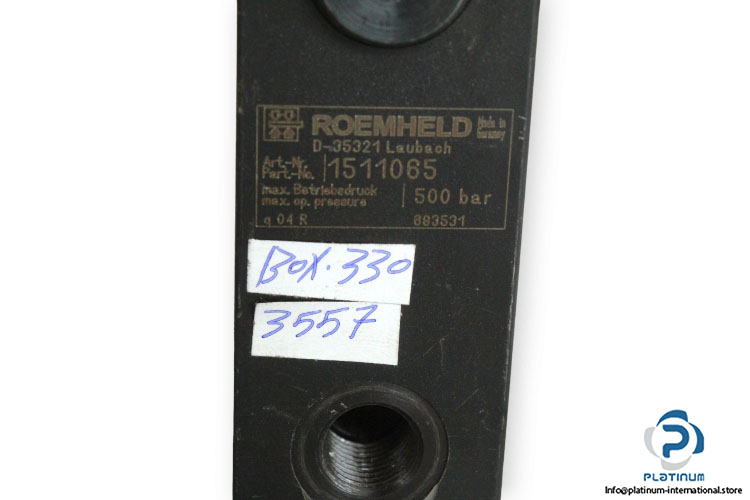

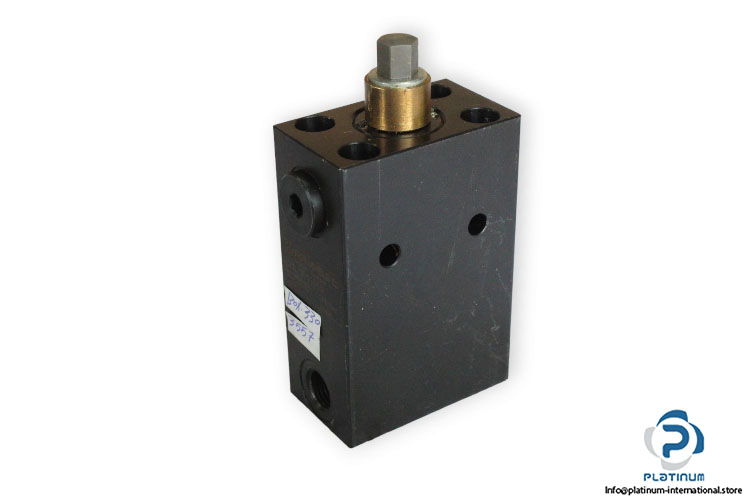

Roemheld 1511065 Block Cylinder
ROEMHELD BLOCK CYLINDER 1511065
This robust Roemheld block cylinder is designed for high-force clamping in industrial automation applications, offering compact design and long-lasting performance.
Manufacturer: Roemheld
Type: Block Cylinder
Art. No.: 1511065
Ref. No.: 883531
| Functioning | Single Acting Without Spring Return |
| Max. Working Pressure | 500 bar |
| Piston Diameter | 16 mm |
| Rod Diameter | 10 mm |
| Stroke | 50 mm |
| Piston Rod End | Internal Thread M6 |
| Max. Force to Push | 10 kN |
| Connection | G ¼ |
| Material of the Body | Steel |
| Operating Temperature | -30 to 100°C |
