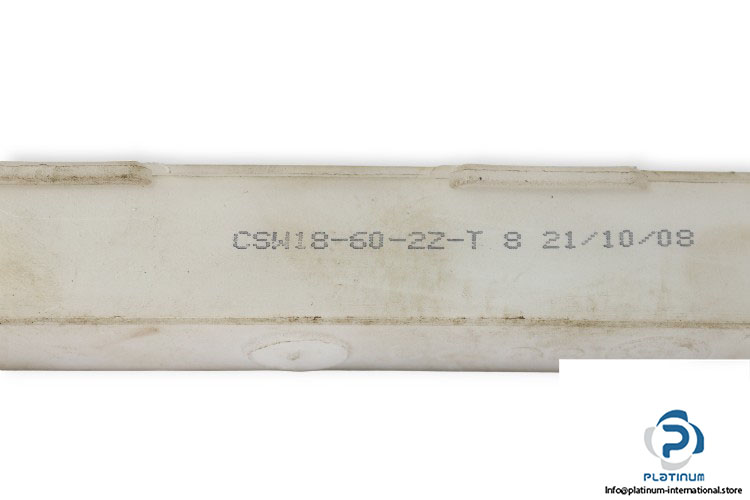

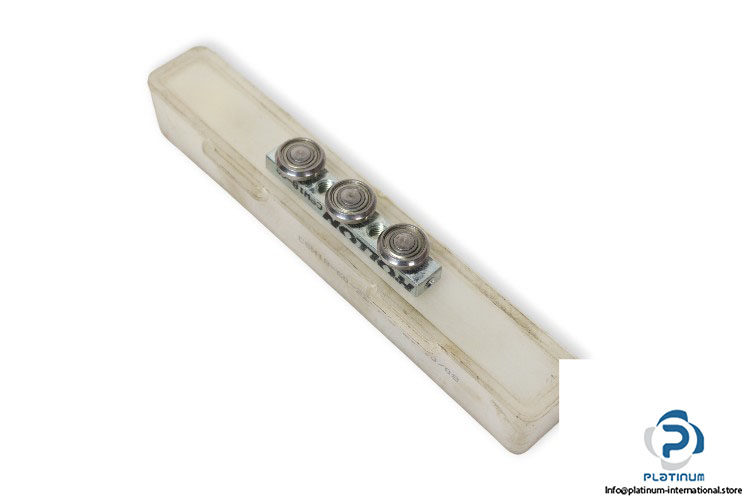

Rollon CSW18-60-2Z-T Linear Roller Bearing

Manufacturer: ROLLON
Type: SLIDER
Model: CSW 18-60 2ZT

Number of rollers: 3
Type of roller: CPA18 – CPN18
Number of fixing holes: 2

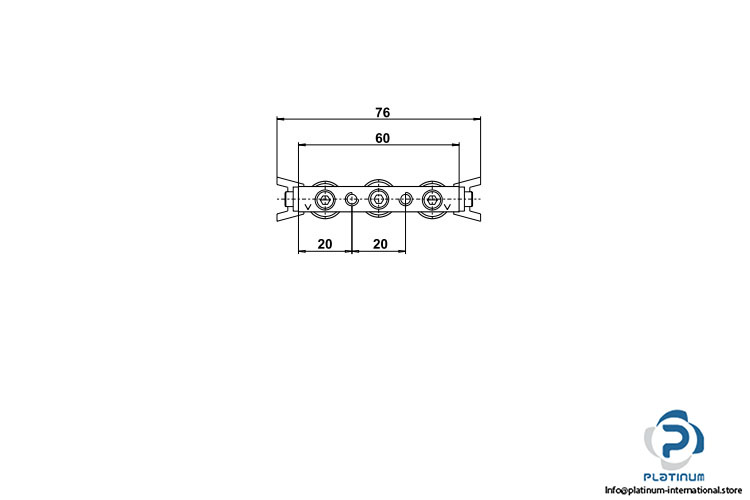

Dimensions:
Nominal Diameter: 18 mm
Slider body length: 60
S1: 0.3 mm
S2: 1.1 mm
B_min: 14.7 mm
B_nom: 15 mm
B_max: 16.1 mm
Roller protection: 2Z, shield type
Type of wiper: T
Acceleration: 15 m/s²
Dynamic Load Capacity: 1530 N
Radial Static Load Capacity: 820 N
Axial Static Load Capacity: 260 N
Moment Capacity
Mx: 1.5 Nm
My: 4.7 Nm
Mz: 8.2 Nm
Operating Temperature: – 20°C/+120°C
