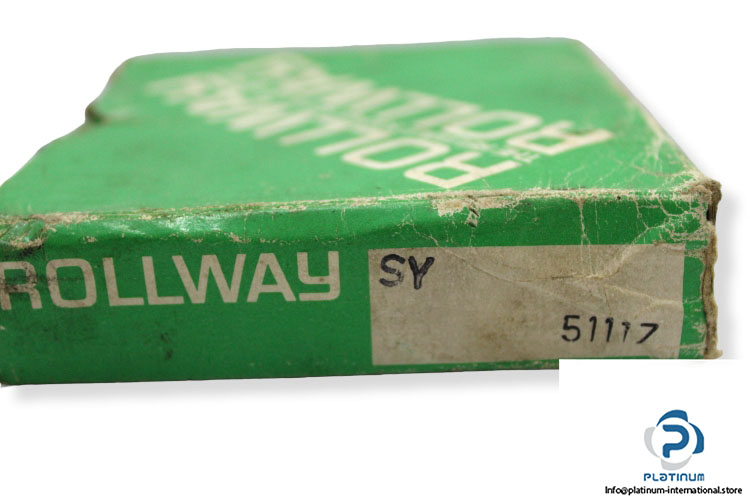

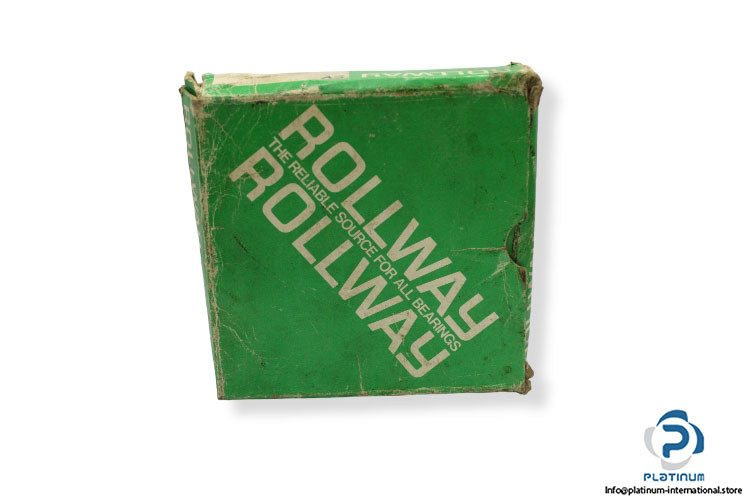

Rollway 51117 Thrust Ball Bearing

Manufacturer: Rollway

Type: Single Direction Thrust Ball Bearings

Model: 51117

Dimensions

Bore diameter d: 85 mm

Outer diameter D: 110 mm

Height T: 19 mm

Outside diameter shaft washer d₁: 110 mm

Inner diameter housing washer D₁: 87 mm

Minimum chamfer dimension r_{s min}: 1 mm

Basic load ratings:

Dynamic C_a: 49200 N

Static C_0a: 150000 N

Allowable speed:

Grease lubrication: 1800 rpm

Oil lubrication: 2800 rpm

Cage: Steel Cage
