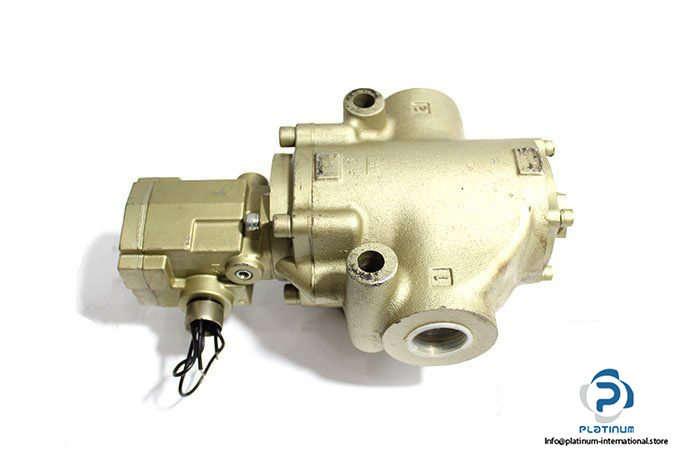

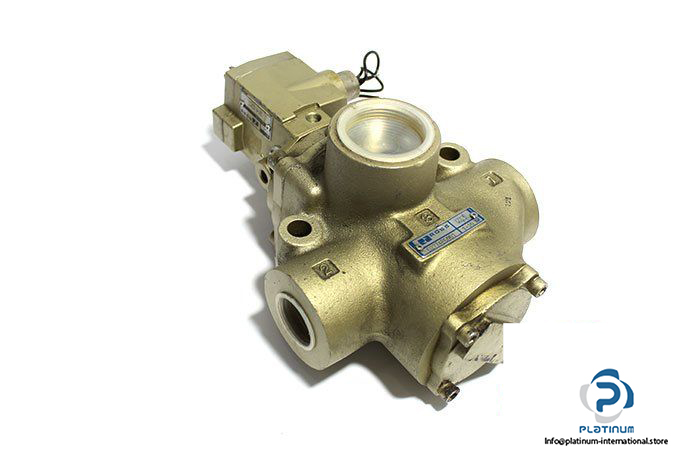

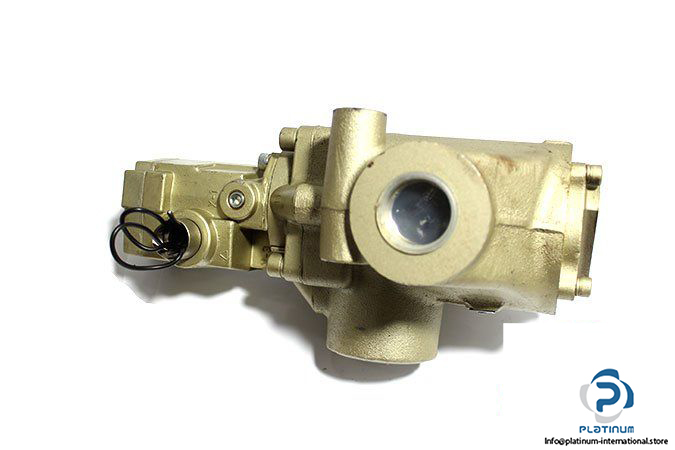

Ross D2774B6001 Single Solenoid Pilot Inline Valve
신제품
재고 있음1 단위즉시 배송 가능
275,00$
Single Solenoid Pilot Inline Valve
The Ross D2774B6001 Series 27 is a 3/2-way normally open solenoid pilot inline valve with 24 V DC coil, 14 W power, and G1 to G1-1/2 pneumatic connections, built for reliable pneumatic control.24v273/2AirconnectionControlD2774B6001dcG1G1-1/2IndustrialInlineNormallyOpenPilotPneumaticRossSeriesSinglesolenoidValveWay
방대한 재고
글로벌 배송
전문 지원
품질 보장
Ross D2774B6001 Single Solenoid Pilot Inline Valve - Series 27
The Ross D2774B6001 from the Series 27 is a high-performance single solenoid pilot inline valve designed for efficient pneumatic control. Built for reliability and precision, it operates electrically with a 3/2-way normally open function. This valve supports filtered air media and offers robust operation in industrial environments, ensuring durability under varying pressures and temperatures.
Manufacturer: Ross
Type: Single Solenoid Pilot Inline Valve

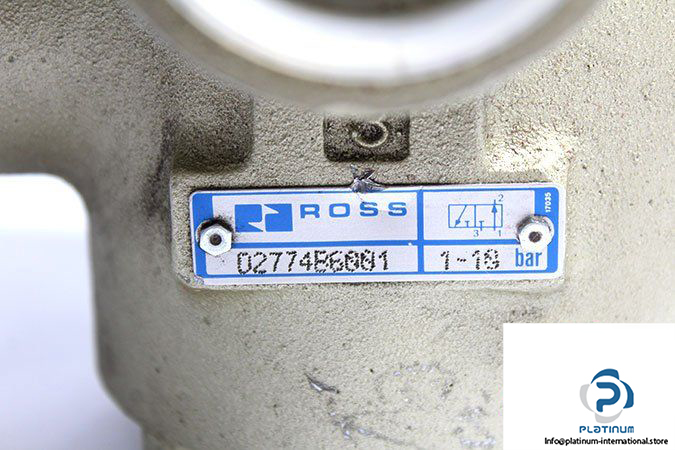

Model: D2774B6001
Series: 27
| Flow Media | Filtered air |
| Type of Actuation | Electrically |
| Operating Pressure | 1 to 10 bar |
| Function | 3/2-Way, Normally open |

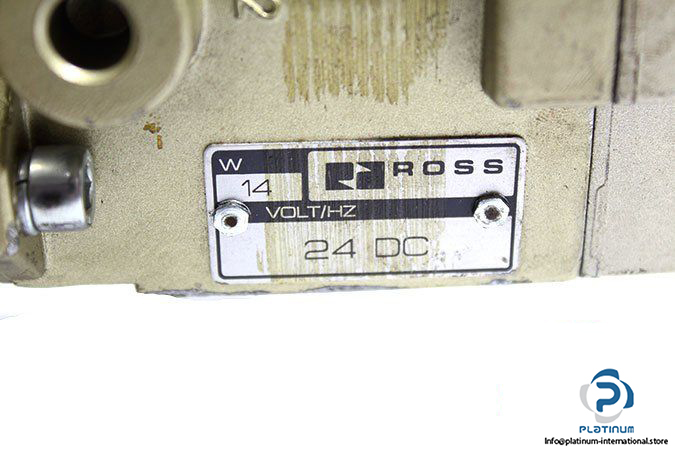

| Coil Voltage | 24 V DC |
| Power | 14 W |
| Pneumatic Connection | G1, G1-1/2 |
| Ambient Temperature | 4 to 50°C |
| Media Temperature | 4 to 80°C |
